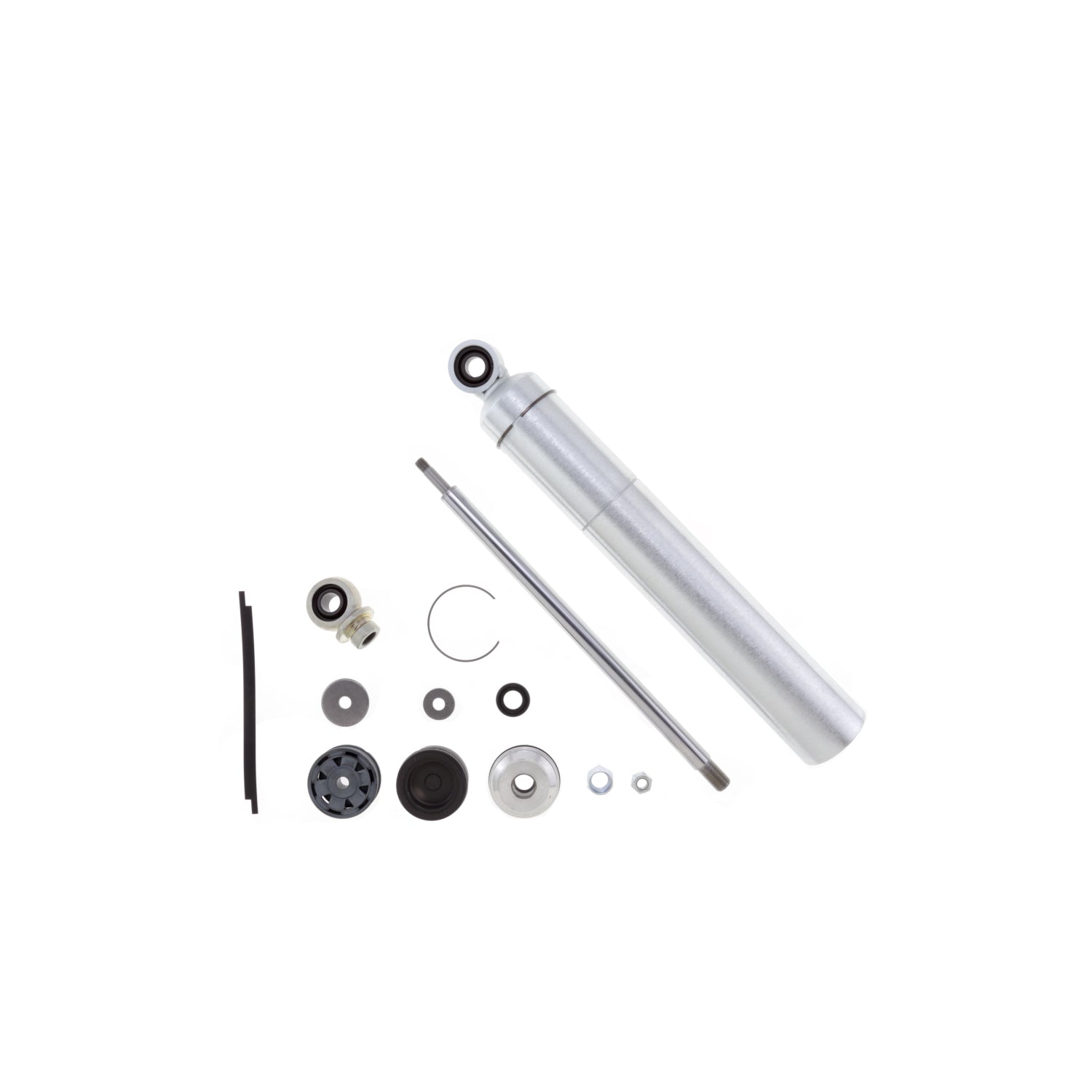

Bilstein Shock Absorbers 33-243467

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860750347
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Finish: Zinc Plated
• Body Material: Steel
• Lower Mount Type: 1/2in Heim
• Collapsed Length (IN): 14.88
• Boot Included: No
• Adjustable Damping: Non-Adjustable
• Collapsed Length (MM): 378.0
• Body Design: Smooth Body (Non-coilover)
• Extended Length (MM): 597.5
• Upper Mount Type: 1/2in Heim
• Valving Identifier: Digressive Dry Kit (no valving)
• Spring Seat Included: No
• Extended Length (IN): 23.52
• Internal Design: Monotube
• Series: SZ Series
• Piston Type: Digressive

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.7000 lb
