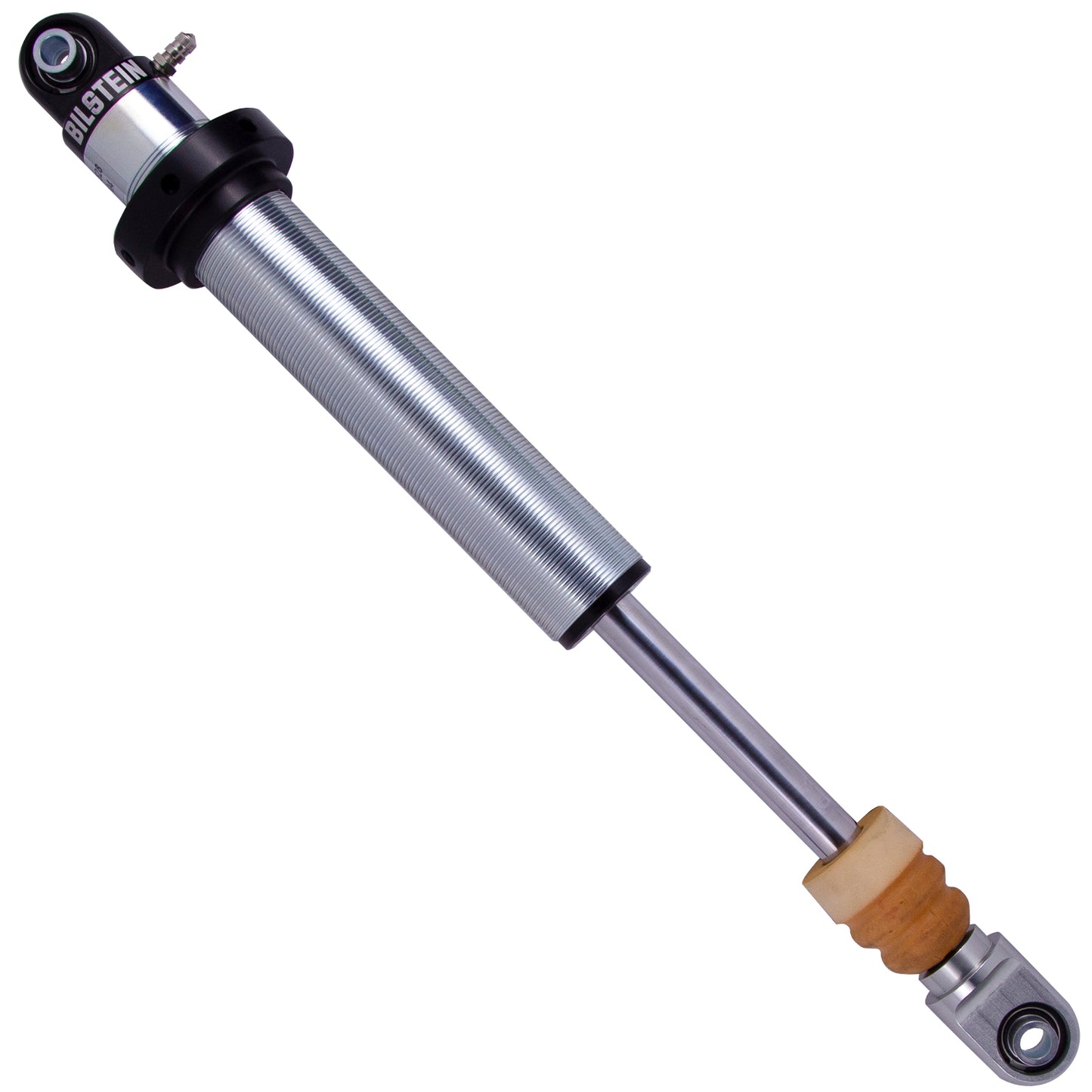

Bilstein Shock Absorbers 33-243528

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Attributes:

• GTIN: 00651860750507
• Brand Name: Bilstein
• Upper Mount Type: Eye .5x1.5in
• Boot Included: N/A
• Finish: Zinc Plated
• Extended Length (MM): 584.2
• Reservoir: Yes
• Series: M 9200 (Coil Carrier)
• Lower Mount Type: Eye .5x1.5in
• Optional Reservoir Clamp: N/A
• Internal Design: Monotube
• Compression @0.52m/s: Custom
• Spring Seat Included: No
• Body Diameter (ID): 46mm
• Collapsed Length (IN) Rounded: 15
• Mount Type: Eye-to-Eye
• Collapsed Length (IN): 15.00
• Body Design: Threaded Body (Coilover)
• Collapsed Length (MM): 381.0
• Rebound @0.52m/s: Custom
• Extended Length (IN): 23.00
• Extended Length (IN) Rounded: 23

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 7.5000 lb
