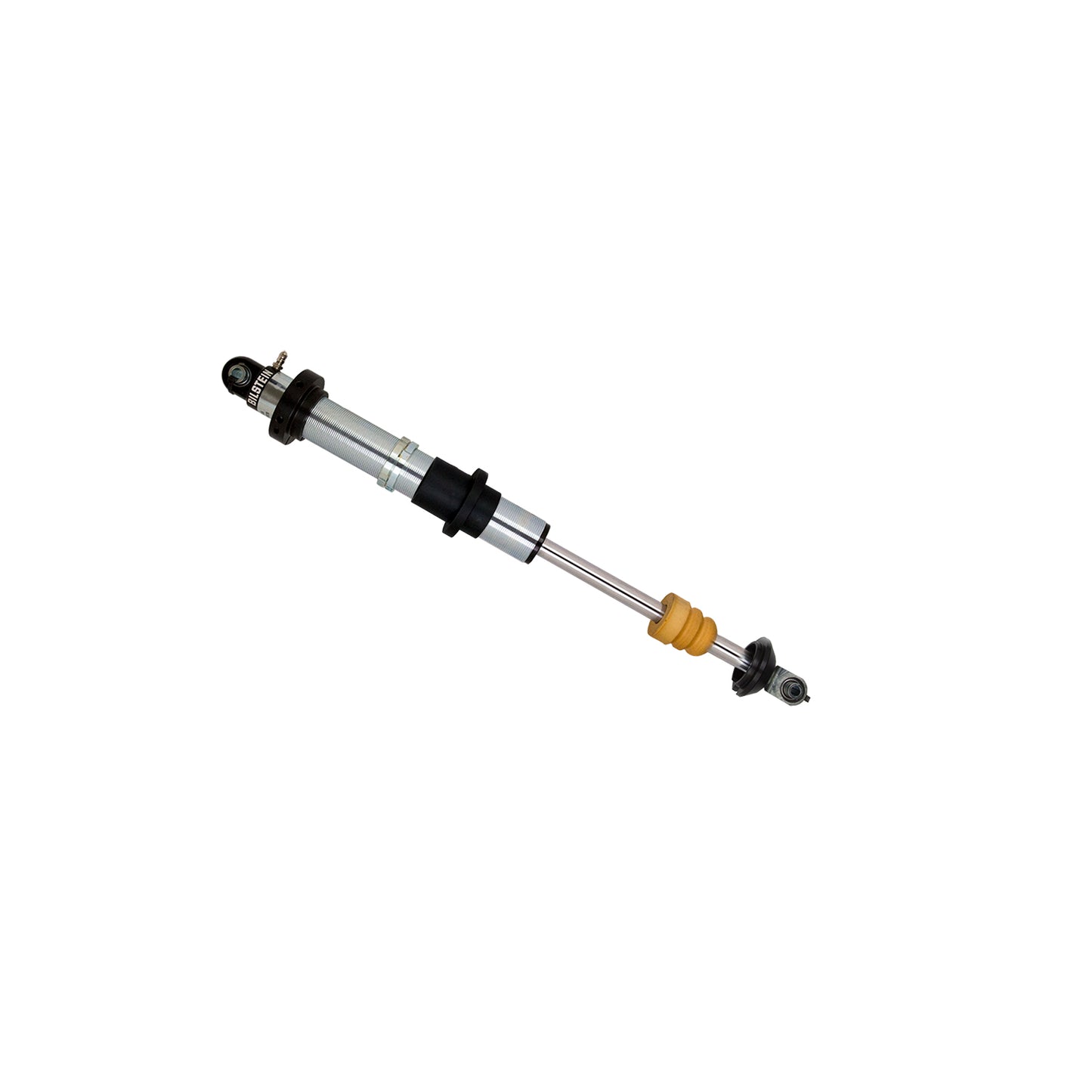

Bilstein Shock Absorbers 33-243535

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Attributes:

• GTIN: 00651860750514
• Brand Name: Bilstein
• Extended Length (MM): 685.8
• Boot Included: N/A
• Body Diameter (ID): 46mm
• Spring Seat Included: No
• Lower Mount Type: Eye .5x1.5in
• Body Design: Threaded Body (Coilover)
• Reservoir: Yes
• Compression @0.52m/s: Custom
• Rebound @0.52m/s: Custom
• Mount Type: Eye-to-Eye
• Series: M 9200 (Coil Carrier)
• Collapsed Length (MM): 431.8
• Collapsed Length (IN): 17.00
• Extended Length (IN): 27.00
• Extended Length (IN) Rounded: 27
• Upper Mount Type: Eye .5x1.5in
• Collapsed Length (IN) Rounded: 17
• Finish: Zinc Plated
• Optional Reservoir Clamp: N/A
• Internal Design: Monotube

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 10.4900 lb
