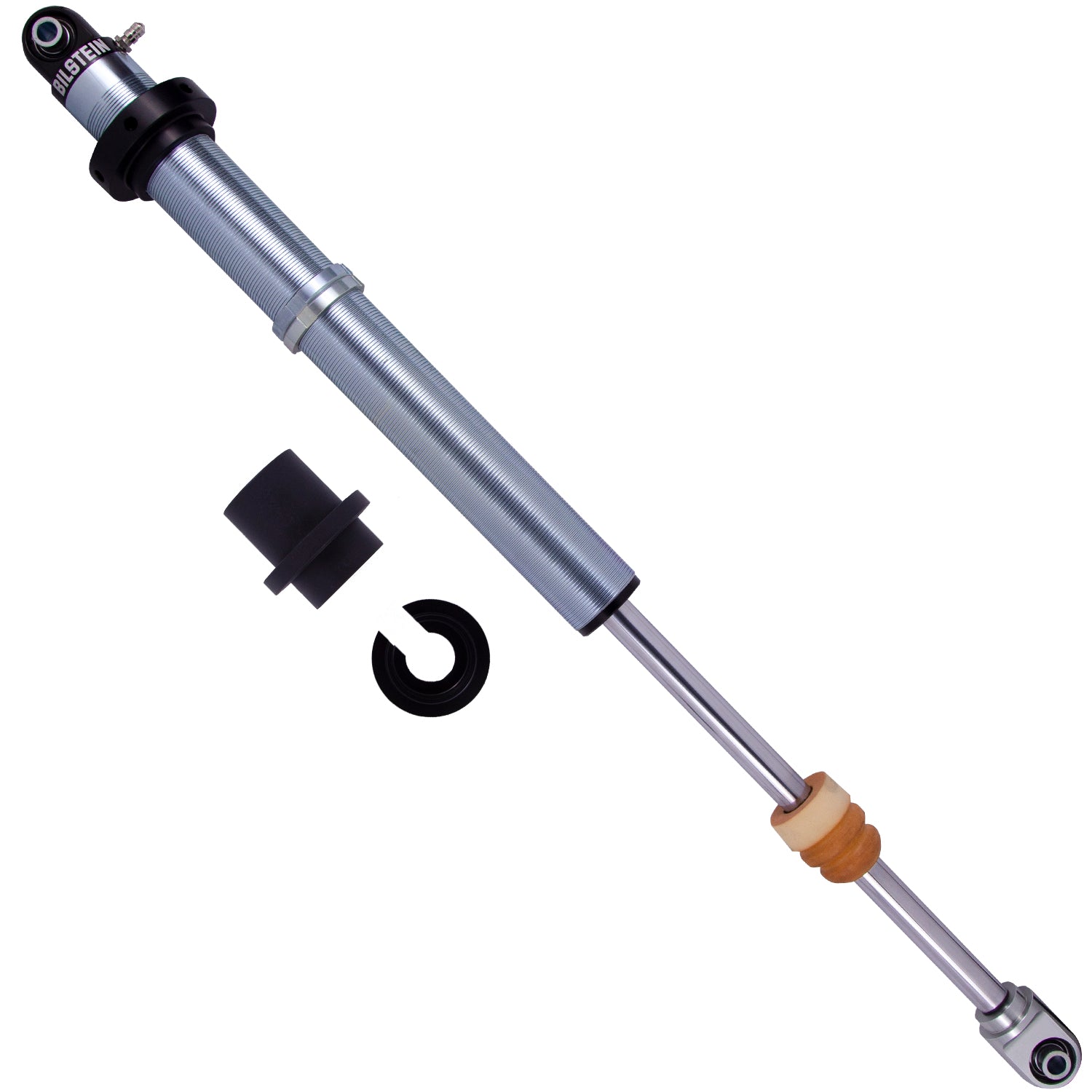

Bilstein Shock Absorbers 33-243559

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Attributes:

• GTIN: 00651860750675
• Brand Name: Bilstein
• Extended Length (IN) Rounded: 36
• Spring Seat Included: No
• Series: M 9200 (Coil Carrier)
• Boot Included: N/A
• Upper Mount Type: Eye .5x1.5in
• Body Diameter (ID): 46mm
• Internal Design: Monotube
• Rebound @0.52m/s: Custom
• Mount Type: Eye-to-Eye
• Collapsed Length (IN): 21.50
• Body Design: Threaded Body (Coilover)
• Compression @0.52m/s: Custom
• Collapsed Length (MM): 546.1
• Extended Length (MM): 901.7
• Lower Mount Type: Eye .5x1.5in
• Extended Length (IN): 35.50
• Reservoir: Yes
• Collapsed Length (IN) Rounded: 22
• Finish: Zinc Plated
• Optional Reservoir Clamp: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 16.0000 lb
