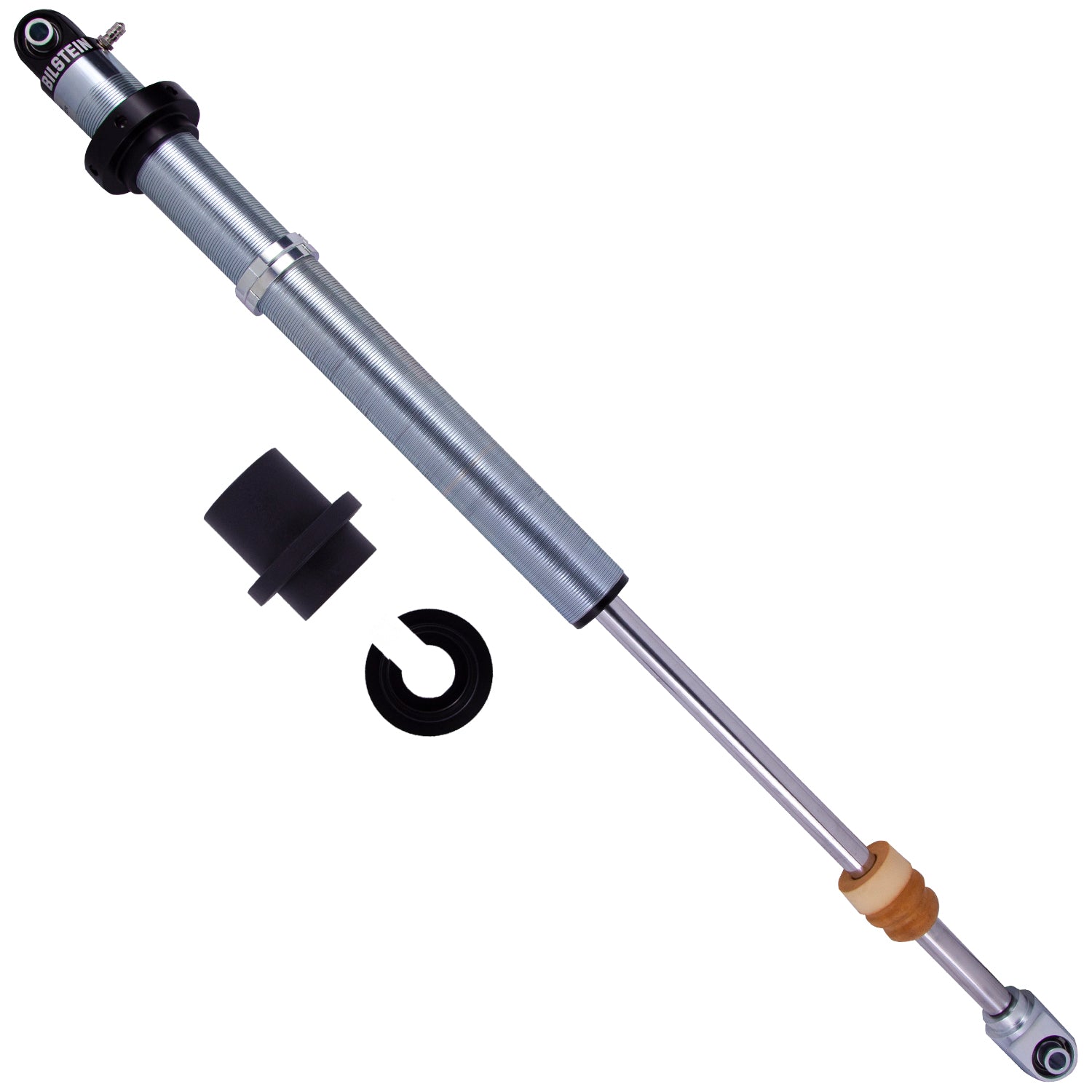

Bilstein Shock Absorbers 33-243566

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Attributes:

• GTIN: 00651860750699
• Brand Name: Bilstein
• Collapsed Length (IN): 23.50
• Rebound @0.52m/s: Custom
• Body Design: Threaded Body (Coilover)
• Compression @0.52m/s: Custom
• Boot Included: N/A
• Spring Seat Included: No
• Upper Mount Type: Eye .5x1.5in
• Extended Length (MM): 1003.3
• Reservoir: Yes
• Body Diameter (ID): 46mm
• Lower Mount Type: Eye .5x1.5in
• Collapsed Length (IN) Rounded: 24
• Collapsed Length (MM): 596.9
• Series: M 9200 (Coil Carrier)
• Internal Design: Monotube
• Extended Length (IN) Rounded: 40
• Optional Reservoir Clamp: N/A
• Mount Type: Eye-to-Eye
• Finish: Zinc Plated
• Extended Length (IN): 39.50

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 14.8000 lb
