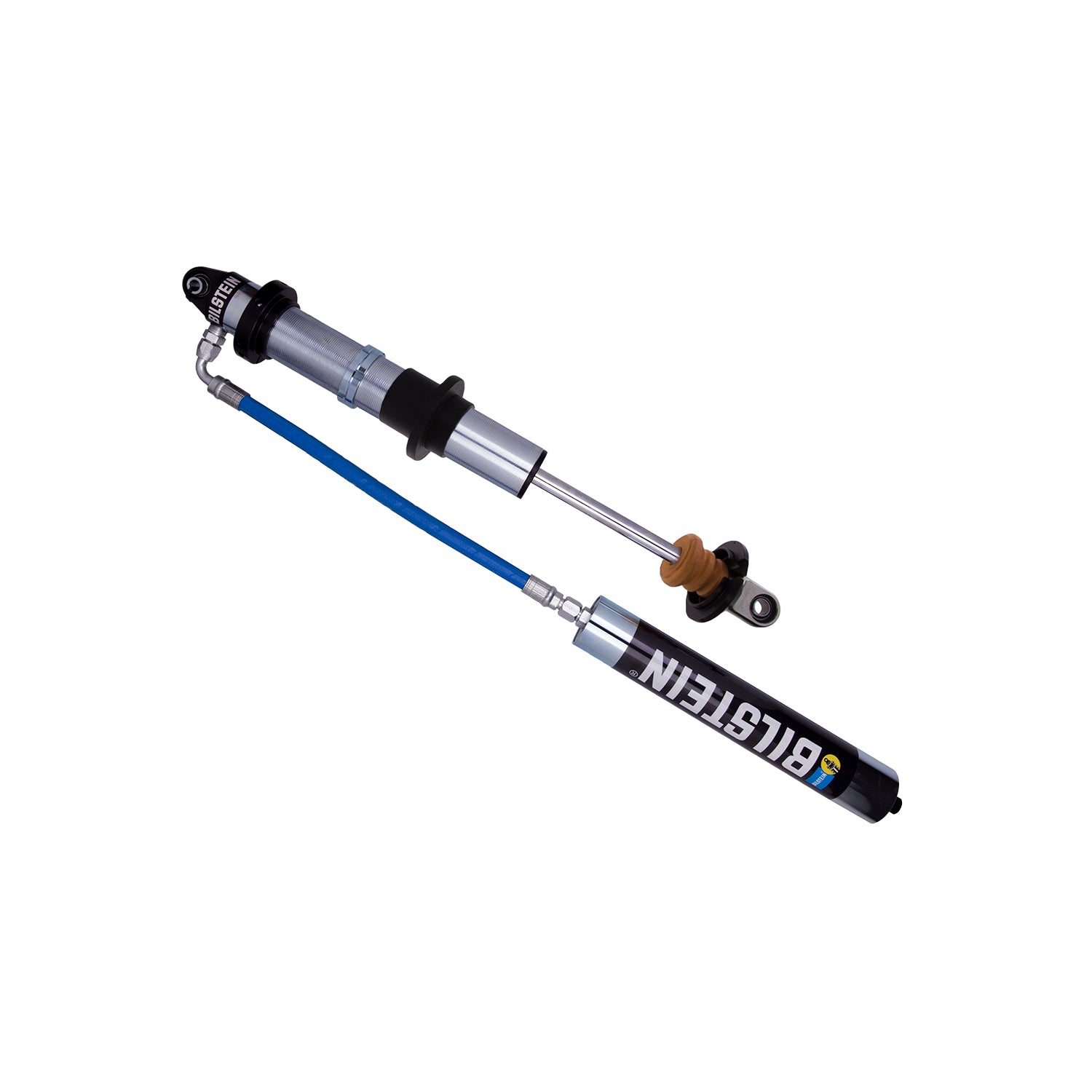

Bilstein Shock Absorbers 33-244471

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

Attributes:

• GTIN: 00651860752815
• Brand Name: Bilstein
• Finish: Zinc Plated
• Collapsed Length (MM): 495.3
• Internal Design: Monotube
• Body Design: Threaded Body (Coilover)
• Rebound @0.52m/s: 2550
• Mount Type: Eye-to-Eye
• Boot Included: N/A
• Collapsed Length (IN): 19.50
• Collapsed Length (IN) Rounded: 20
• Lower Mount Type: Eye .5x1.5in
• Reservoir: Yes
• Extended Length (IN) Rounded: 30
• Extended Length (IN): 29.50
• Series: M 9200 (Coilover)
• Upper Mount Type: Eye .5x1.5in
• Extended Length (MM): 749.3
• Body Diameter (ID): 60mm
• Optional Reservoir Clamp: N/A
• Spring Seat Included: No
• Compression @0.52m/s: 1000

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 24.1400 lb
