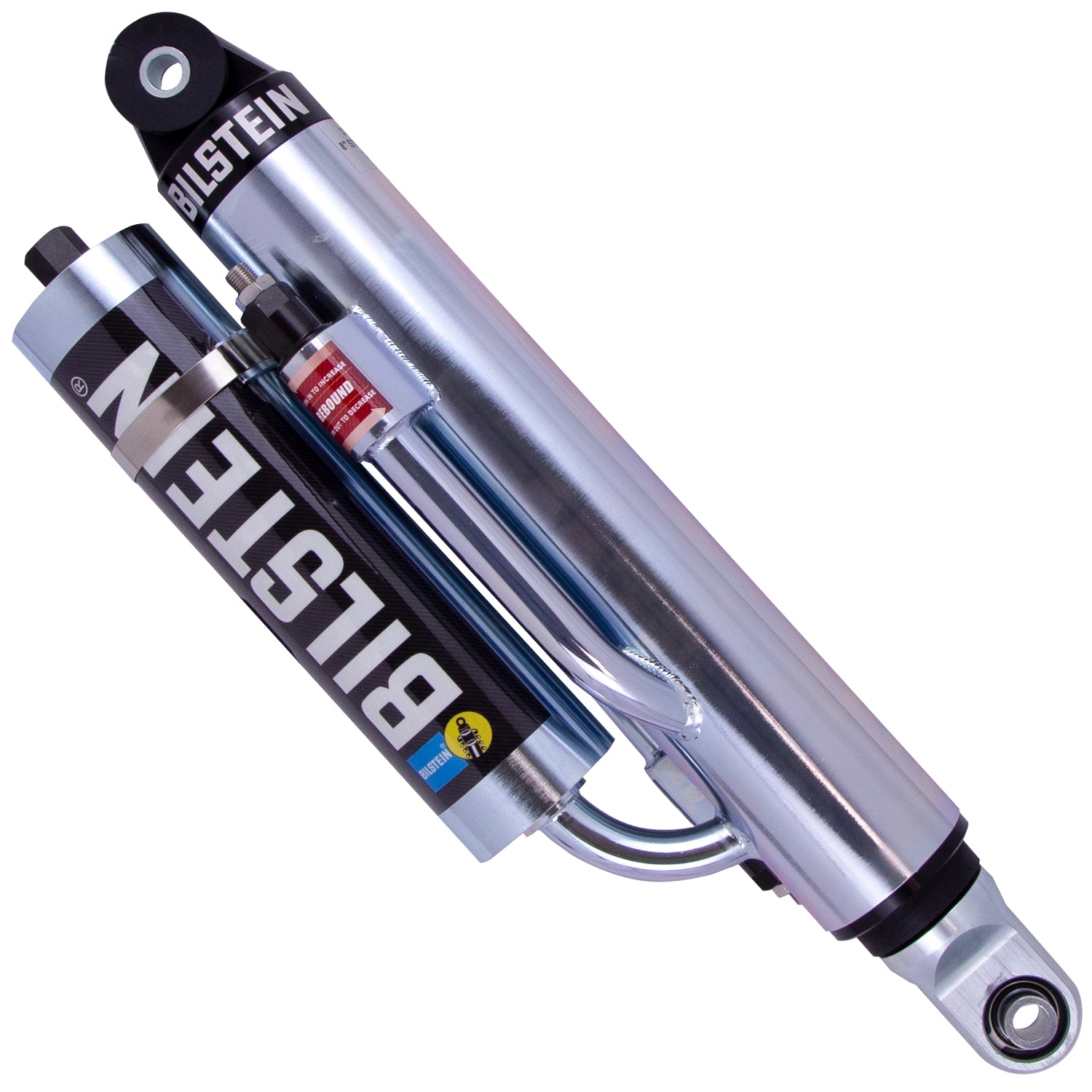

Bilstein Shock Absorbers 33-269528

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860804484
• Brand Name: Bilstein
• Reservoir: Yes
• Boot Included: N/A
• Spring Seat Included: No
• Collapsed Length (IN): 17.50
• Collapsed Length (IN) Rounded: 18
• Extended Length (IN): 25.50
• Extended Length (MM): 647.7
• Extended Length (IN) Rounded: 26
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Series: M 9200 (Bypass)
• Lower Mount Type: Eye .5x1.5in
• Body Design: 3-Tube Bypass Screw Top
• Mount Type: Eye-to-Eye
• Collapsed Length (MM): 444.5
• Optional Reservoir Clamp: N/A
• Internal Design: Monotube
• Rebound @0.52m/s: Custom
• Position: Left
• Compression @0.52m/s: Custom
• Body Diameter (ID): 60mm

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 22.1000 lb
