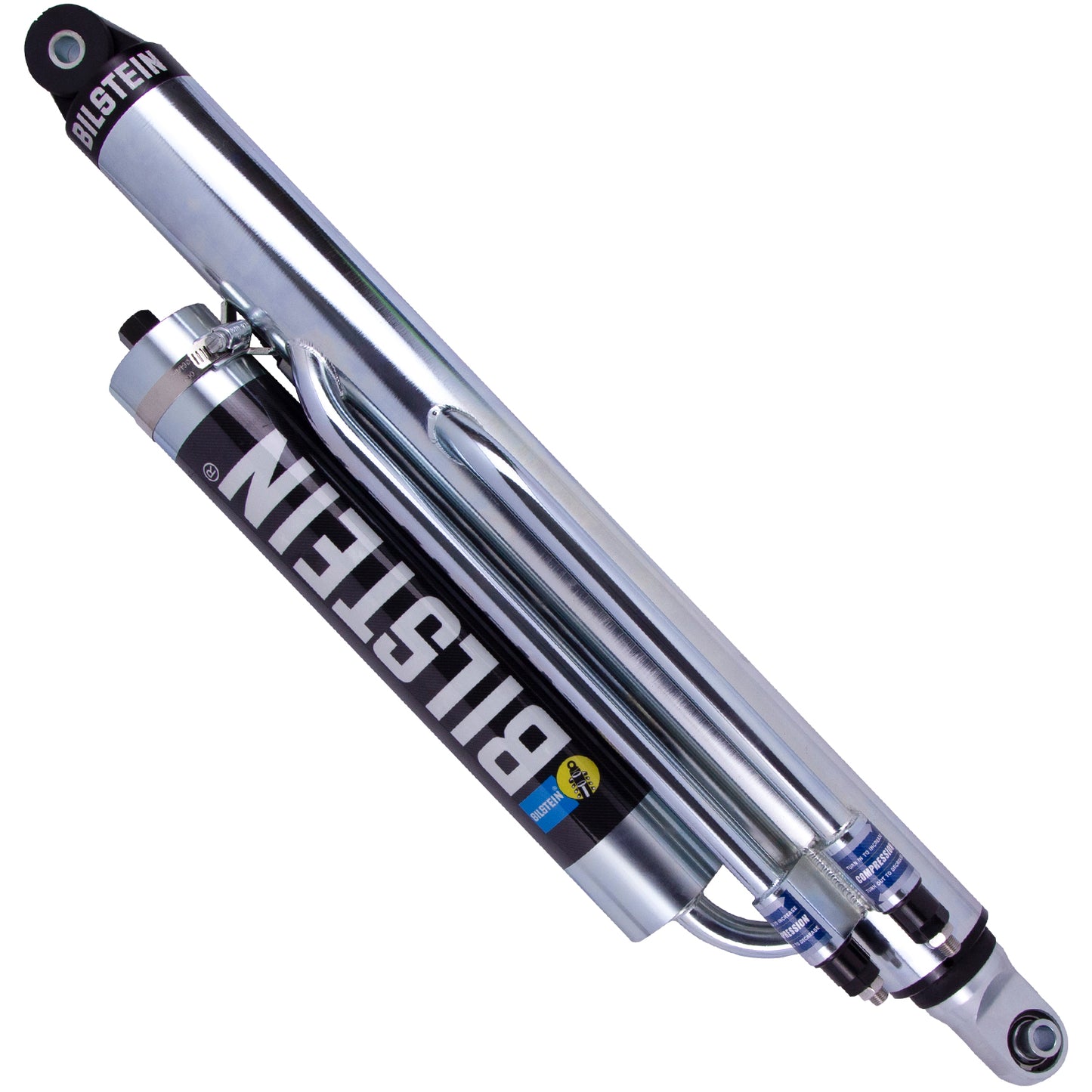

Bilstein Shock Absorbers 33-269597

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860803395
• Brand Name: Bilstein
• Extended Length (IN) Rounded: 39
• Extended Length (MM): 977.9
• Position: Right
• Series: M 9200 (Bypass)
• Rebound @0.52m/s: Custom
• Upper Mount Type: Eye .5x1.5in
• Internal Design: Monotube
• Collapsed Length (IN): 24.50
• Spring Seat Included: No
• Boot Included: N/A
• Collapsed Length (IN) Rounded: 25
• Finish: Zinc Plated
• Collapsed Length (MM): 622.3
• Extended Length (IN): 38.50
• Optional Reservoir Clamp: N/A
• Body Diameter (ID): 60mm
• Compression @0.52m/s: Custom
• Reservoir: Yes
• Body Design: 3-Tube Bypass Screw Top
• Mount Type: Eye-to-Eye
• Lower Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 30.0000 lb
