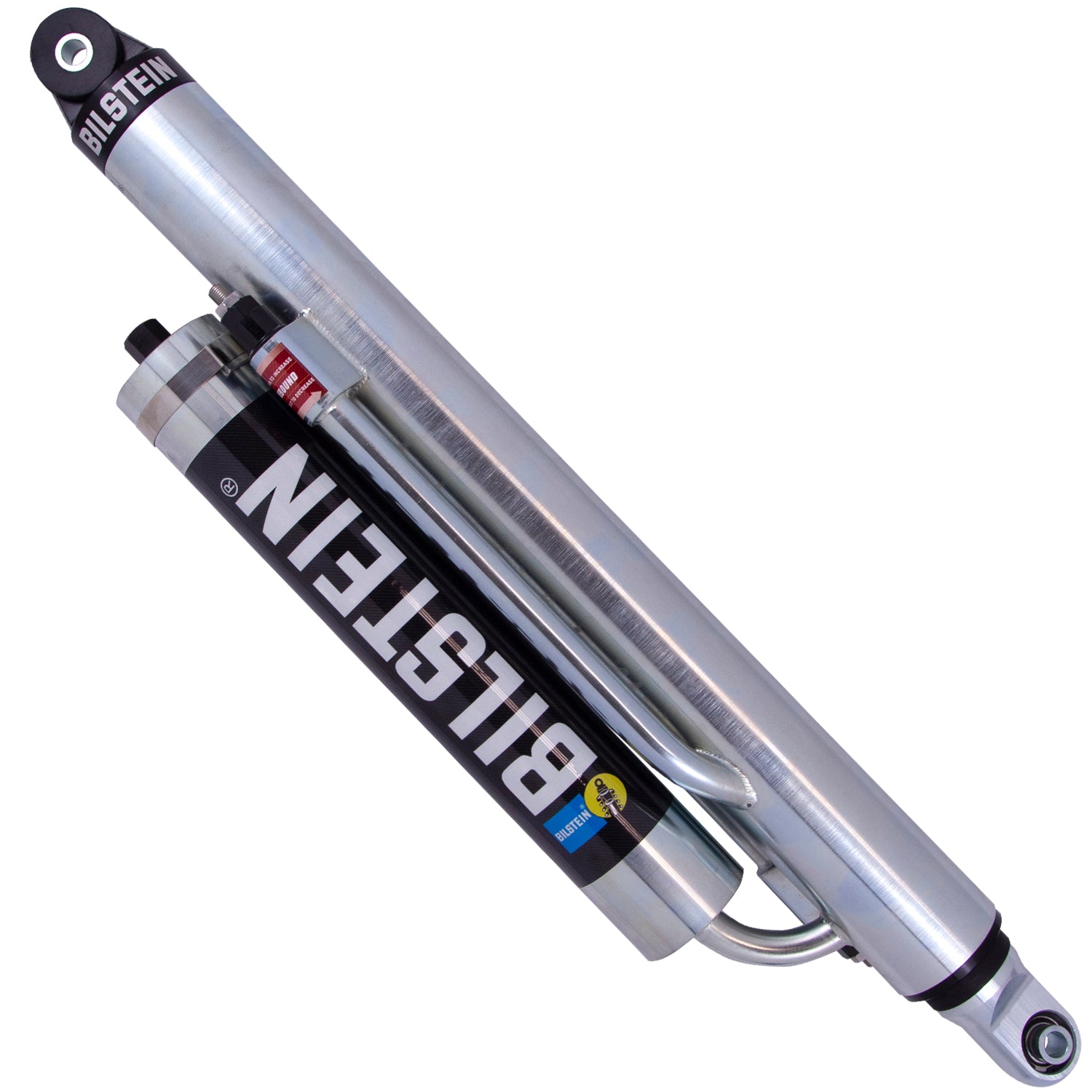

Bilstein Shock Absorbers 33-269603

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860796765
• Brand Name: Bilstein
• Upper Mount Type: Eye .5x1.5in
• Lower Mount Type: Eye .5x1.5in
• Internal Design: Monotube
• Extended Length (IN) Rounded: 43
• Spring Seat Included: No
• Collapsed Length (IN): 26.50
• Compression @0.52m/s: Custom
• Body Diameter (ID): 60mm
• Body Design: 3-Tube Bypass Screw Top
• Collapsed Length (MM): 673.1
• Collapsed Length (IN) Rounded: 27
• Reservoir: Yes
• Series: M 9200 (Bypass)
• Boot Included: N/A
• Position: Left
• Mount Type: Eye-to-Eye
• Extended Length (IN): 42.50
• Optional Reservoir Clamp: N/A
• Extended Length (MM): 1079.5
• Finish: Zinc Plated
• Rebound @0.52m/s: Custom

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 29.1000 lb
