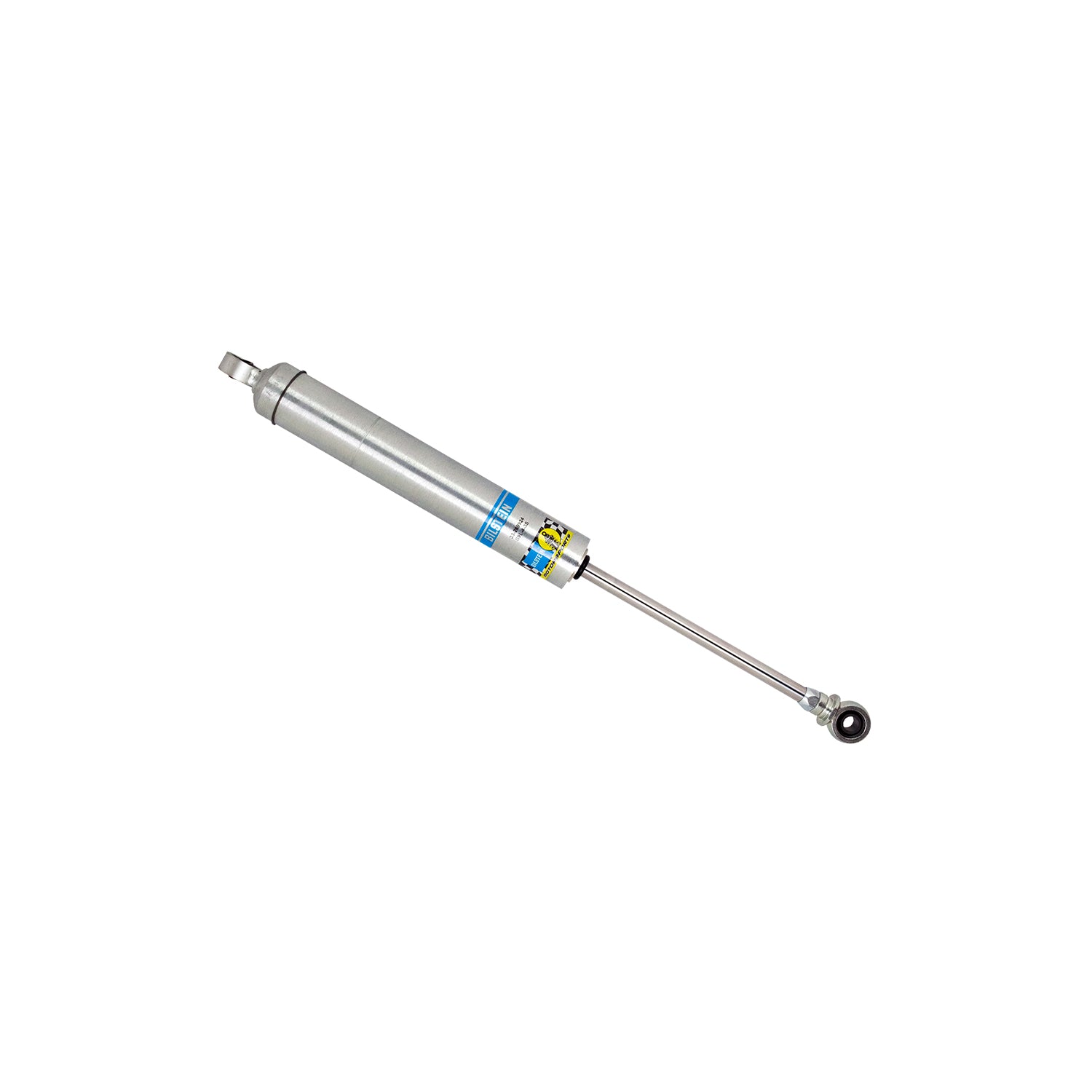

Bilstein Shock Absorbers 33-269924

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860796833
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Collapsed Length (MM): 381.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Compression @0.26m/s: 835
• Piston Type: Digressive
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Valving Identifier: 4-3S
• Extended Length (MM): 597.5
• Lower Mount Type: 1/2in Heim
• Boot Included: No
• Spring Seat Included: No
• Rebound @0.26m/s: 1140
• Series: SZ Series
• Upper Mount Type: 1/2in Heim
• Extended Length (IN): 23.52
• Collapsed Length (IN): 15.00
• Adjustable Damping: Non-Adjustable

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.3000 lb
