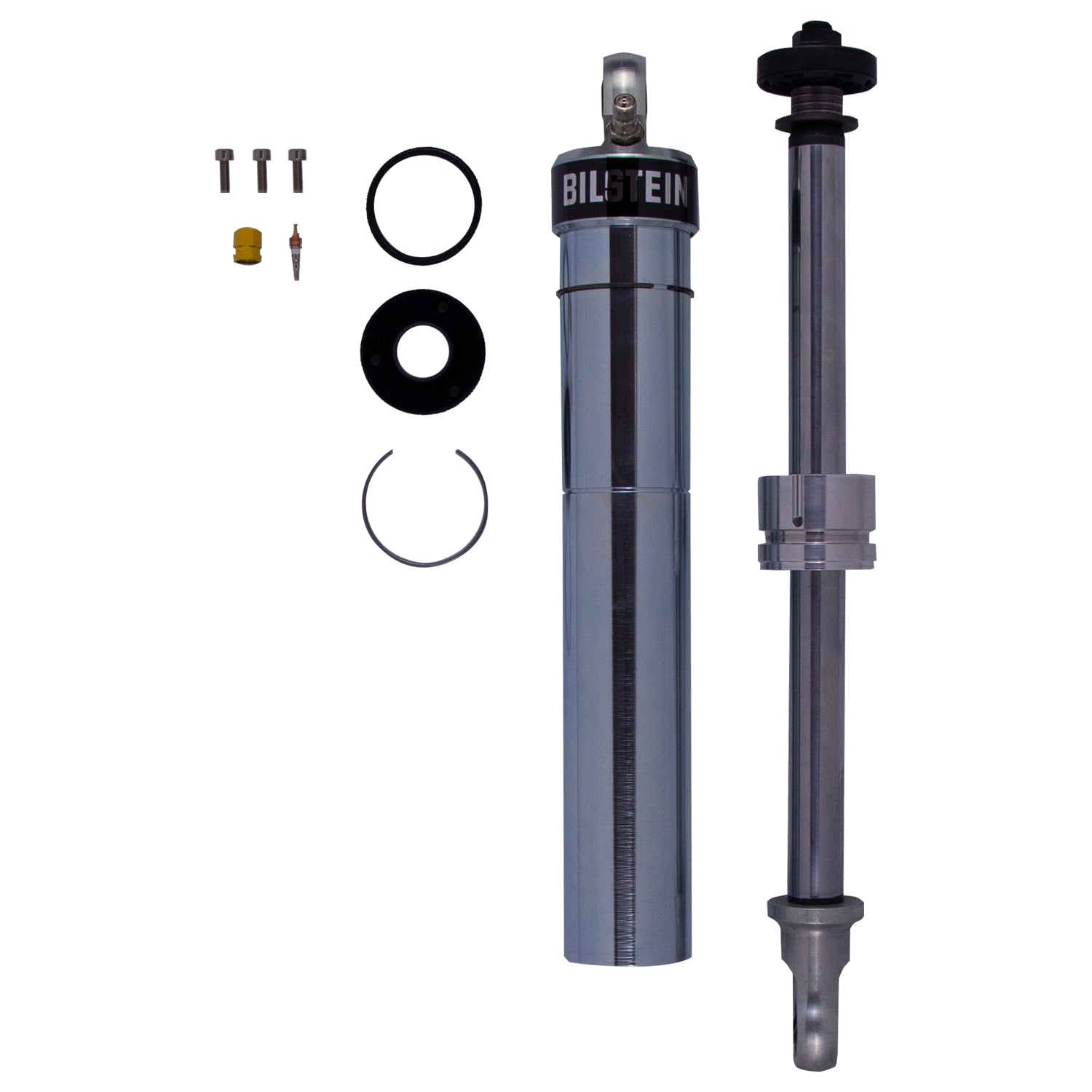

Bilstein Shock Absorbers 33-286884

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications.  The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately).  EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.

Attributes:

• GTIN: 00651860825007
• Brand Name: Bilstein
• Body Material: Steel
• Internal Design: Monotube
• Boot Included: No
• Adjustable Damping: Non-Adjustable
• Extended Length (MM): 641.0
• Finish: Zinc Plated
• Body Design: Smooth Body Screw Top (Non-coilover)
• Collapsed Length (IN): 15.24
• Lower Mount Type: 1/2in Heim
• Piston Type: Digressive
• Body Diameter (ID): 46mm
• Extended Length (IN): 25.24
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim
• Series: EM46 Series
• Valving Identifier: Digressive Dry Kit (no valving)
• Collapsed Length (MM): 387.0

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.6000 lb
