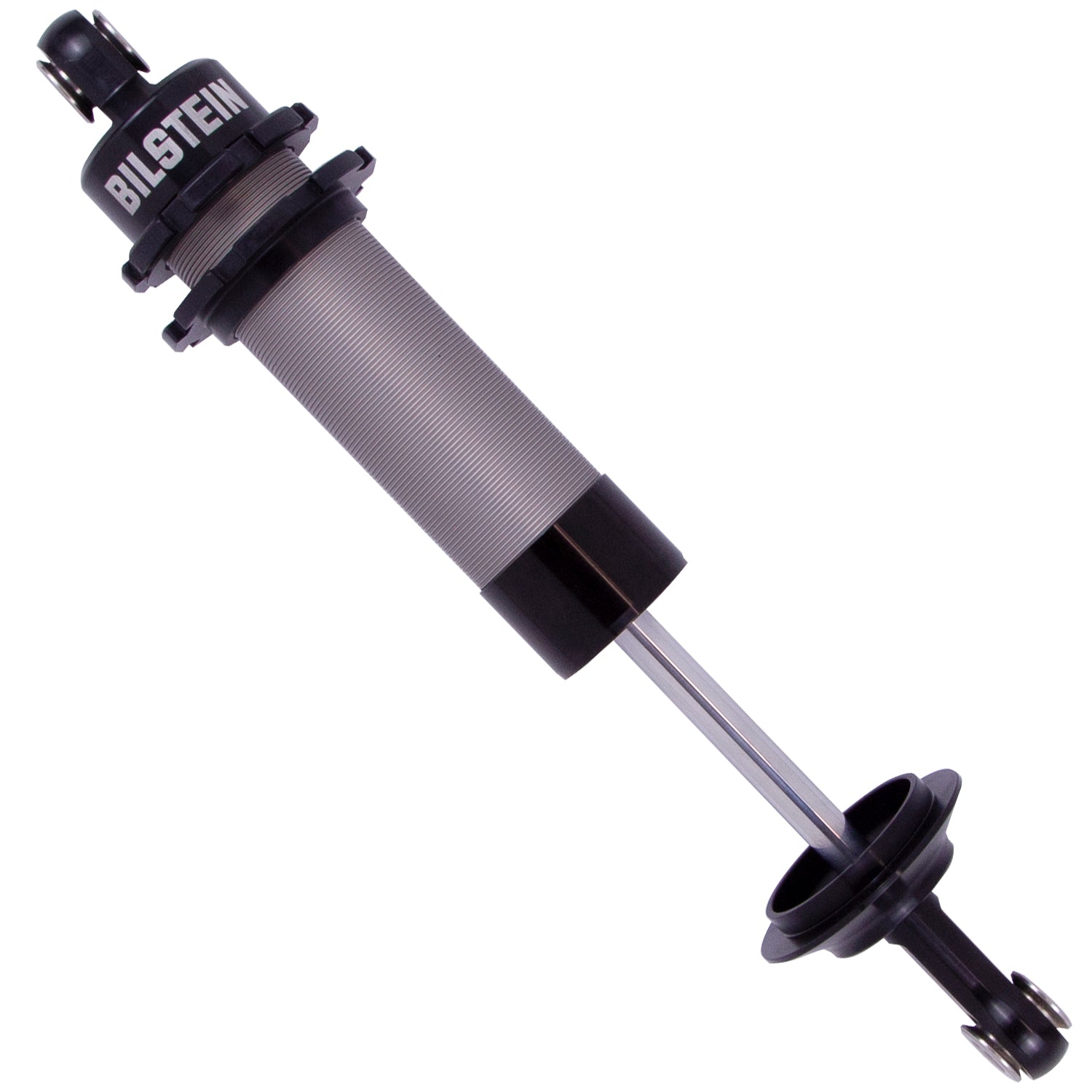

Bilstein Shock Absorbers 33-306544

Bilstein ASM Series shock absorbers are designed to provide next level performance for the Resto-Mod and Pro-Touring market. With a variety of damper lengths to fit most popular applications, the shocks combine a great street-worthy ride quality with top level motorsports handling characteristics for a true total package. This modular aluminum design with a threaded shock body dissipates heat quickly. The hard-anodized coating reduces internal friction, and improves strength and durability. The ASM Series dampers are available in non, single and double adjustable configurations for premium tuning options to best fit your budget and driving demands.

Attributes:

• GTIN: 00651860874951
• Brand Name: Bilstein
• Extended Length (MM): 416.0
• Boot Included: No
• Body Material: Aluminum
• Finish: Clear Anodized
• Spring Seat Included: Yes
• Collapsed Length (IN): 11.87
• Body Design: Threaded Body Screw Top (Coilover)
• Piston Type: Digressive
• Internal Design: Monotube
• Collapsed Length (MM): 301.4
• Upper Mount Type: 1/2in heim
• Body Diameter (ID): 46mm
• Series: ASM Series
• Lower Mount Type: 1/2in heim
• Extended Length (IN): 16.38
• Adjustable Damping: Non-Adjustable

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.9000 lb
