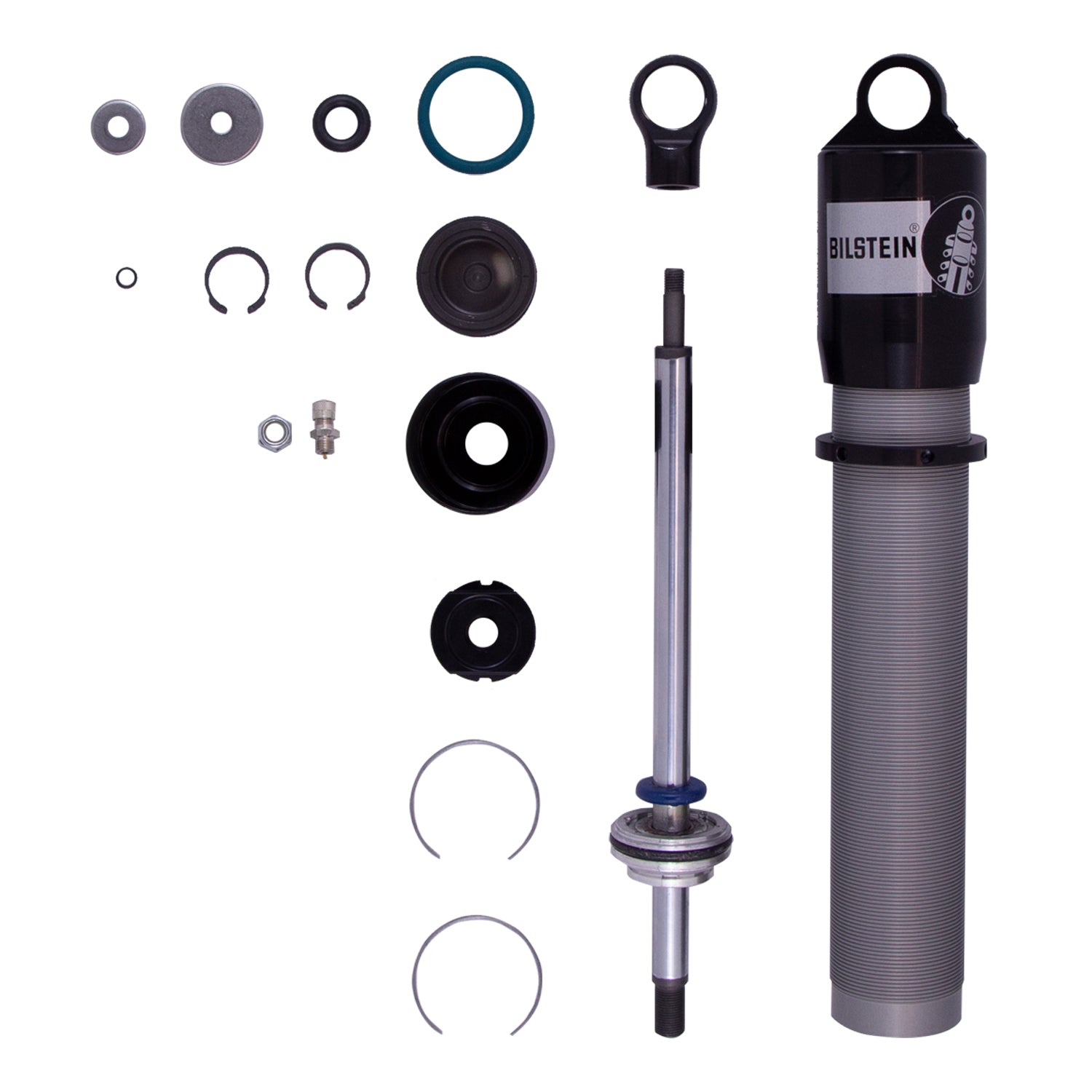

Bilstein Shock Absorbers 33-314648

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

Attributes:

• GTIN: 00651860873985
• Brand Name: Bilstein
• Extended Length (MM): 602.5
• Body Design: Threaded Body Large Bulb Screw Top (Coilover)
• Extended Length (IN): 23.72
• Boot Included: No
• Finish: Clear Anodized
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 15.39
• Collapsed Length (MM): 391.0
• Lower Mount Type: Sold Separately
• Spring Seat Included: No
• Valving Identifier: Dry Kit (no valving)
• Body Material: Aluminum
• Adjustable Damping: Non-Adjustable
• Piston Type: Sold Separately
• Upper Mount Type: Sold Separately
• Series: XVA Series
• Internal Design: Monotube

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 2.6000 lb
