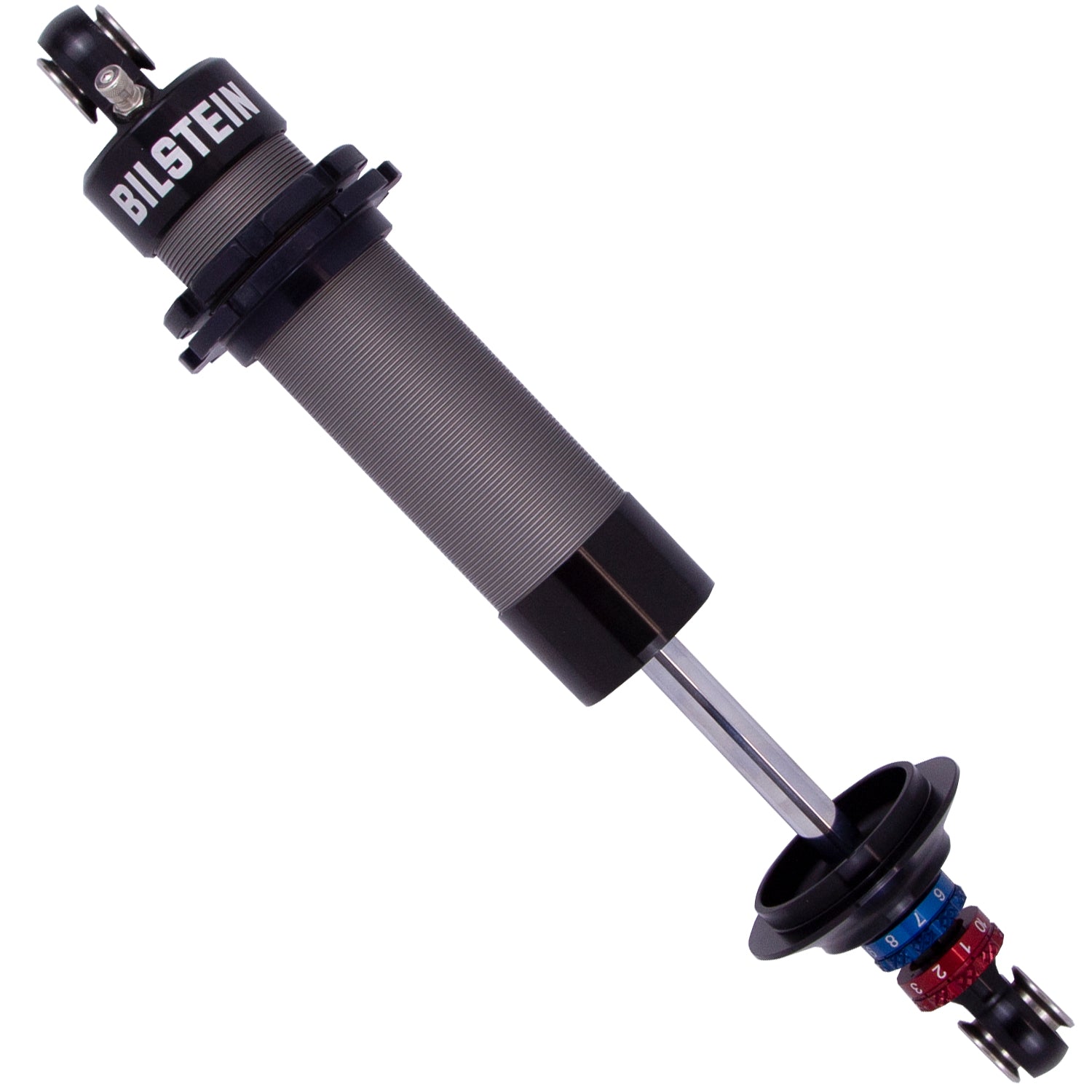

Bilstein Shock Absorbers 33-315294

Bilstein ASM Series shock absorbers are designed to provide next level performance for the Resto-Mod and Pro-Touring market. With a variety of damper lengths to fit most popular applications, the shocks combine a great street-worthy ride quality with top level motorsports handling characteristics for a true total package. This modular aluminum design with a threaded shock body dissipates heat quickly. The hard-anodized coating reduces internal friction, and improves strength and durability. The ASM Series dampers are available in non, single and double adjustable configurations for premium tuning options to best fit your budget and driving demands.

Attributes:

• GTIN: 00651860874869
• Brand Name: Bilstein
• Extended Length (MM): 413.5
• Body Design: Threaded Body Screw Top (Coilover)
• Internal Design: Monotube
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 11.87
• Body Material: Aluminum
• Spring Seat Included: Yes
• Series: ASM Series
• Boot Included: No
• Finish: Clear Anodized
• Extended Length (IN): 16.28
• Lower Mount Type: 1/2in heim
• Upper Mount Type: 1/2in heim
• Collapsed Length (MM): 301.4
• Piston Type: Digressive
• Adjustable Damping: Double Adjustable – Compression and Rebound

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.0000 lb
