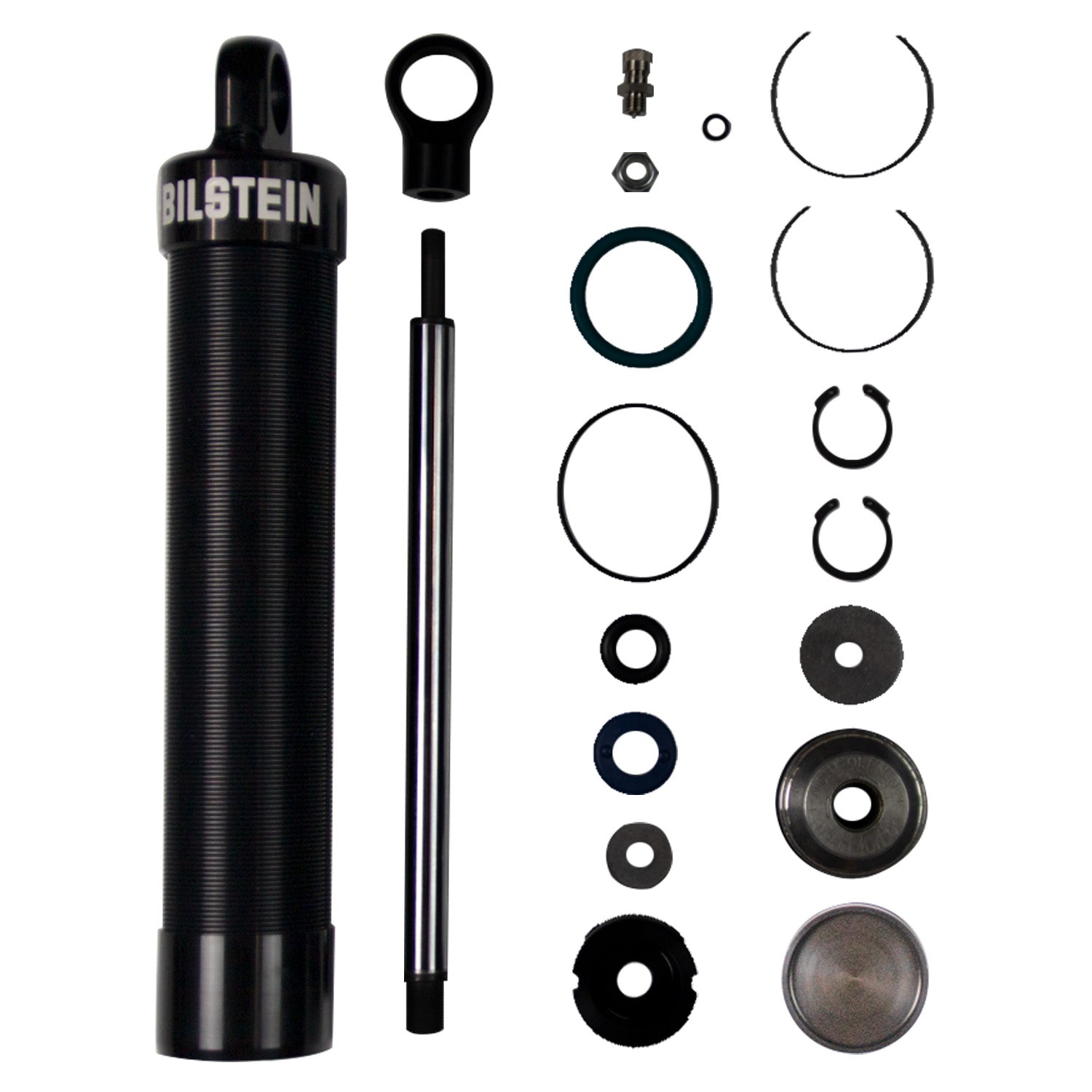

Bilstein Shock Absorbers 33-315430

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

Attributes:

• GTIN: 00651860873695
• Brand Name: Bilstein
• Series: AS2 Series
• Internal Design: Monotube
• Collapsed Length (IN): 12.99
• Body Material: Aluminum
• Valving Identifier: Dry Kit (no valving)
• Collapsed Length (MM): 330.0
• Boot Included: No
• Spring Seat Included: No
• Body Diameter (ID): 46mm
• Lower Mount Type: 1/2in Heim
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body Screw Top (Coilover)
• Finish: Clear Anodized
• Extended Length (MM): 505.0
• Extended Length (IN): 19.88

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 2.2000 lb
