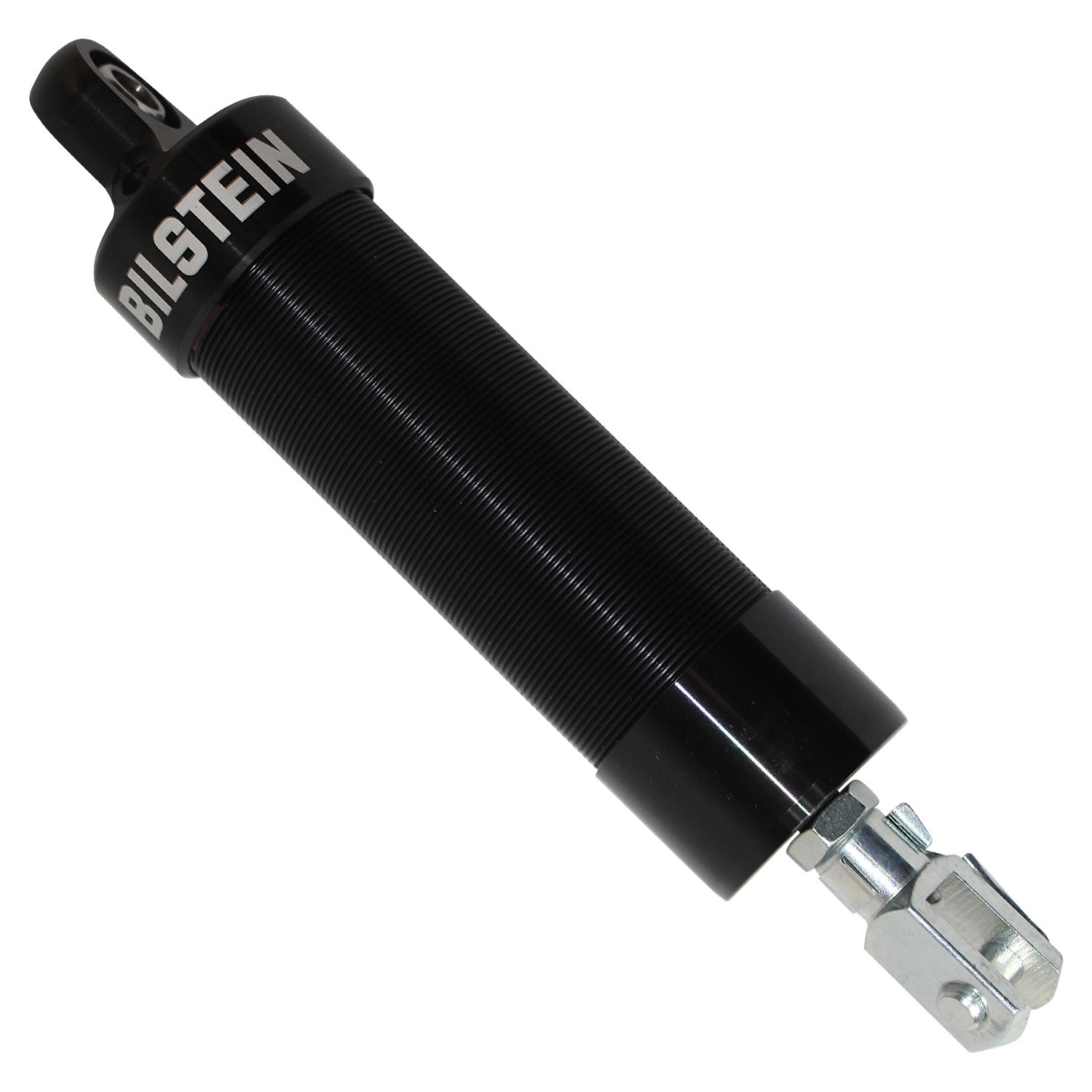

Bilstein Shock Absorbers 33-318486

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

Attributes:

• GTIN: 00651860889375
• Brand Name: Bilstein
• Valving Identifier: Dry Kit (no valving)
• Collapsed Length (IN): 10.04
• Lower Mount Type: Clevis
• Series: AS2 Series
• Adjustable Damping: Non-Adjustable
• Finish: Clear Anodized
• Boot Included: No
• Collapsed Length (MM): 255.0
• Body Material: Aluminum
• Spring Seat Included: No
• Body Design: Threaded Body Screw Top (Coilover)
• Internal Design: Monotube
• Body Diameter (ID): 46mm

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 12.7500 x 4.0000 x 3.5000 inches
• Weight: 2.4200 lb
