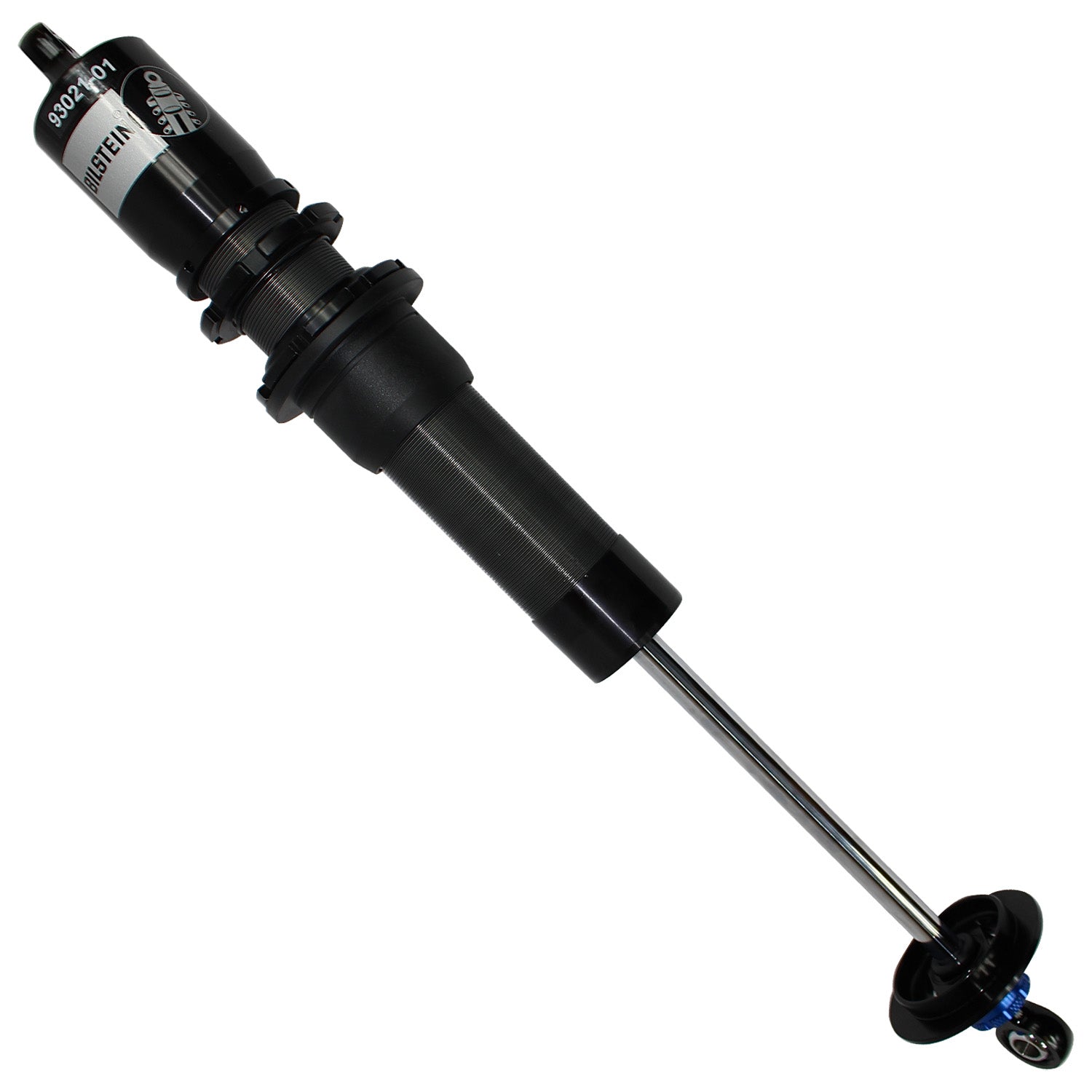

Bilstein Shock Absorbers 33-322766

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.

Attributes:

• GTIN: 00651860882499
• Brand Name: Bilstein
• Collapsed Length (MM): 396.5
• Lower Mount Type: 1/2in Heim
• Valving Identifier: Dry Kit (no valving)
• Spring Seat Included: No
• Extended Length (MM): 598.9
• Finish: Clear Anodized
• Upper Mount Type: 1/2in Heim
• Body Diameter (ID): 46mm
• Internal Design: Monotube
• Body Design: Threaded Body Large Bulb Screw Top (Coilover)
• Extended Length (IN): 23.58
• Piston Type: Digressive
• Boot Included: No
• Collapsed Length (IN): 15.61
• Series: XVA Series
• Adjustable Damping: Single Adjustable - Rebound
• Body Material: Aluminum

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 29.5000 x 3.5000 x 3.5000 inches
• Weight: 4.6800 lb
