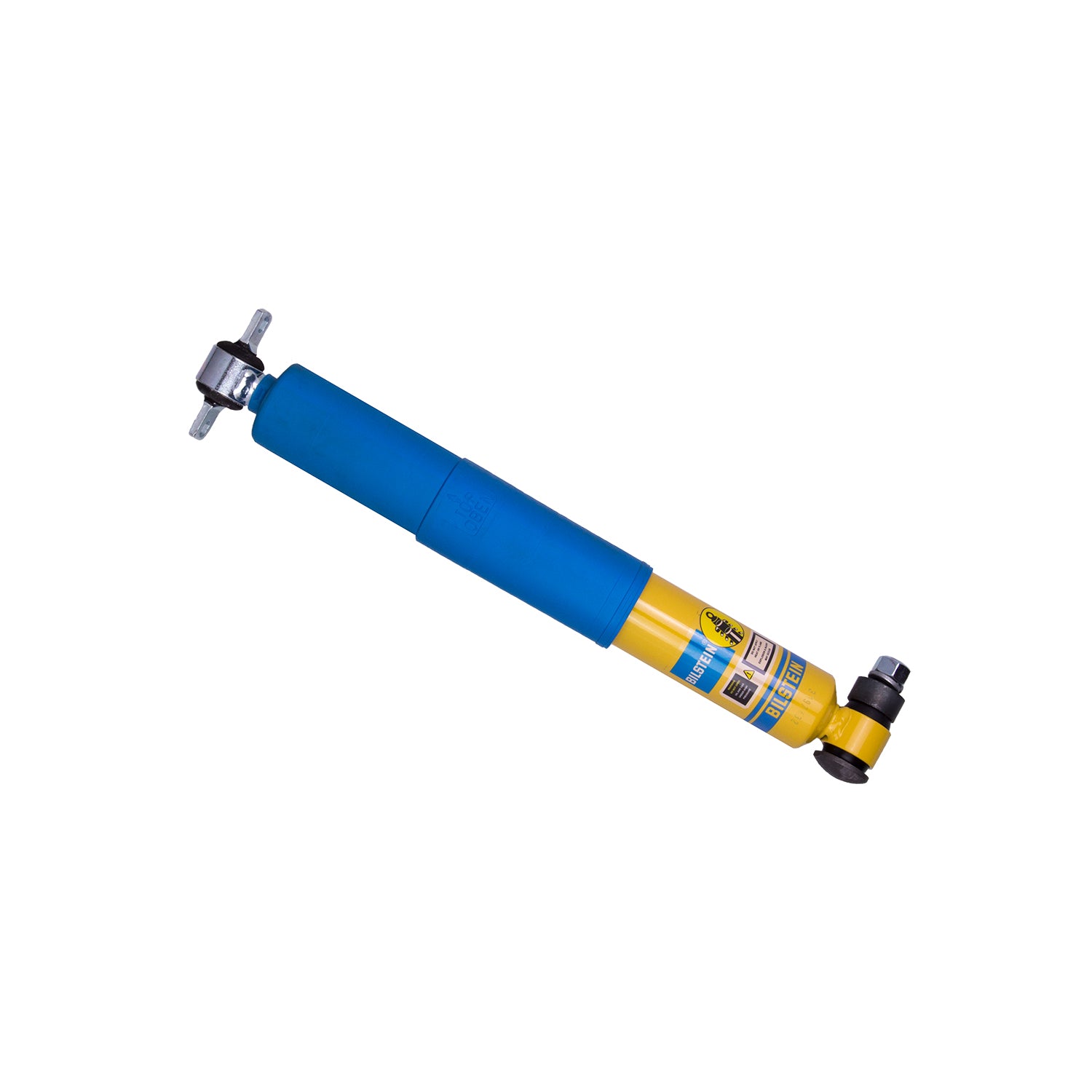

Bilstein Shock Absorbers AK1052

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00790832510524
• Brand Name: Bilstein
• Boot Included: Blue Straight
• Valving Identifier: 324/112
• Finish: Yellow Paint
• Extended Length (IN): 17.20
• Body Design: Stock Mount Smooth Body
• Upper Mount Type: Bar Pin
• Internal Design: Monotube
• Collapsed Length (MM): 286.5
• Lower Mount Type: Cantilever
• Extended Length (MM): 437.0
• Body Diameter (ID): 46mm
• Rebound @0.26m/s: 1445
• Compression @0.26m/s: 500
• Adjustable Damping: Non-Adjustable
• Body Material: Steel
• Spring Seat Included: No
• Collapsed Length (IN): 11.28
• Series: AK Series
• Piston Type: Linear

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 4.1000 lb
