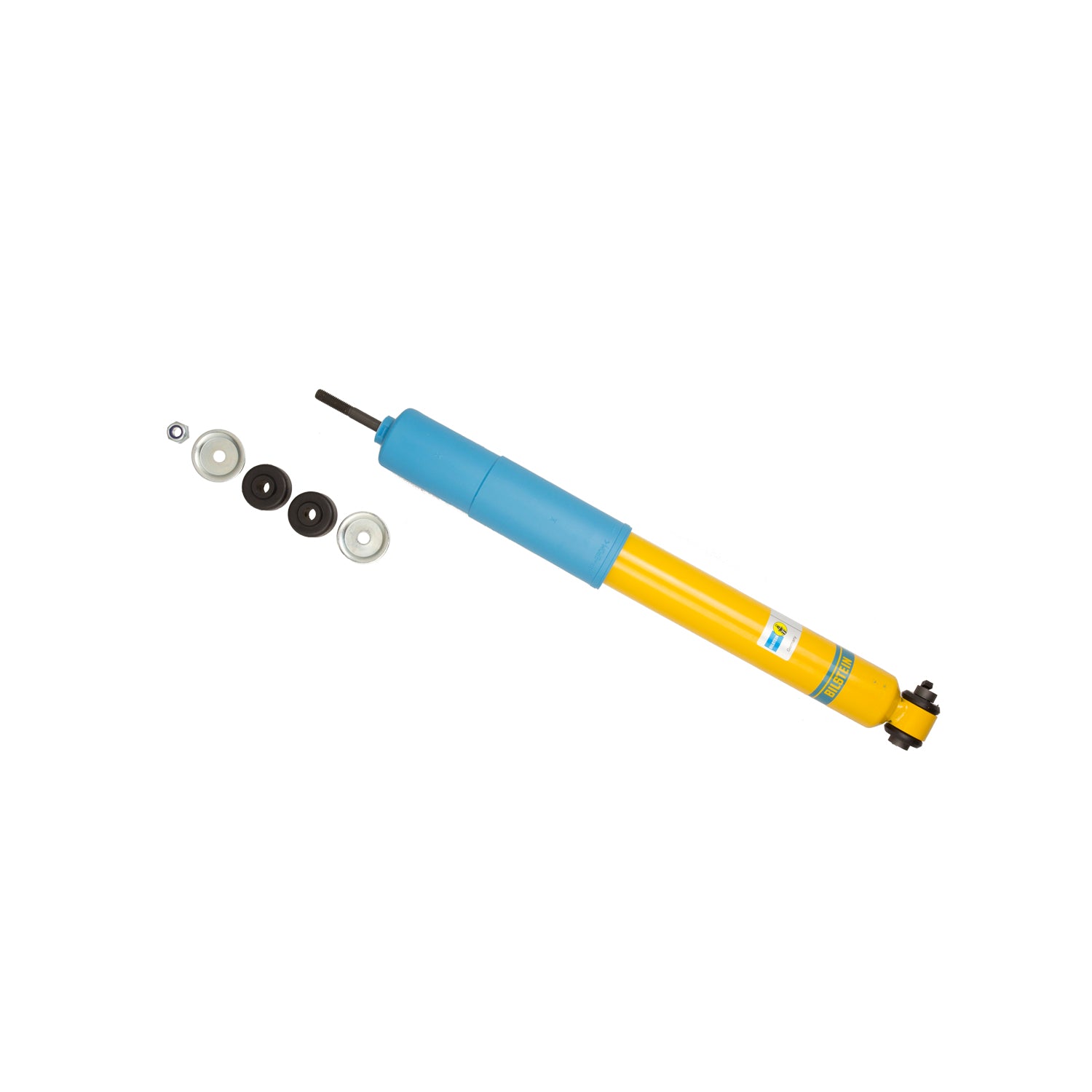

Bilstein Shock Absorbers AK1198

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00790832511989
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Boot Included: Blue Straight
• Compression @0.26m/s: 330
• Internal Design: Monotube
• Valving Identifier: 152/103
• Lower Mount Type: Eye 12mm
• Upper Mount Type: Stem
• Body Design: Stock Mount Smooth Body
• Series: AK Series
• Piston Type: Linear
• Finish: Yellow Paint
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (MM): 321.0
• Rebound @0.26m/s: 905
• Body Material: Steel
• Extended Length (MM): 512.0
• Collapsed Length (IN): 12.64
• Extended Length (IN): 20.16

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.3000 lb
