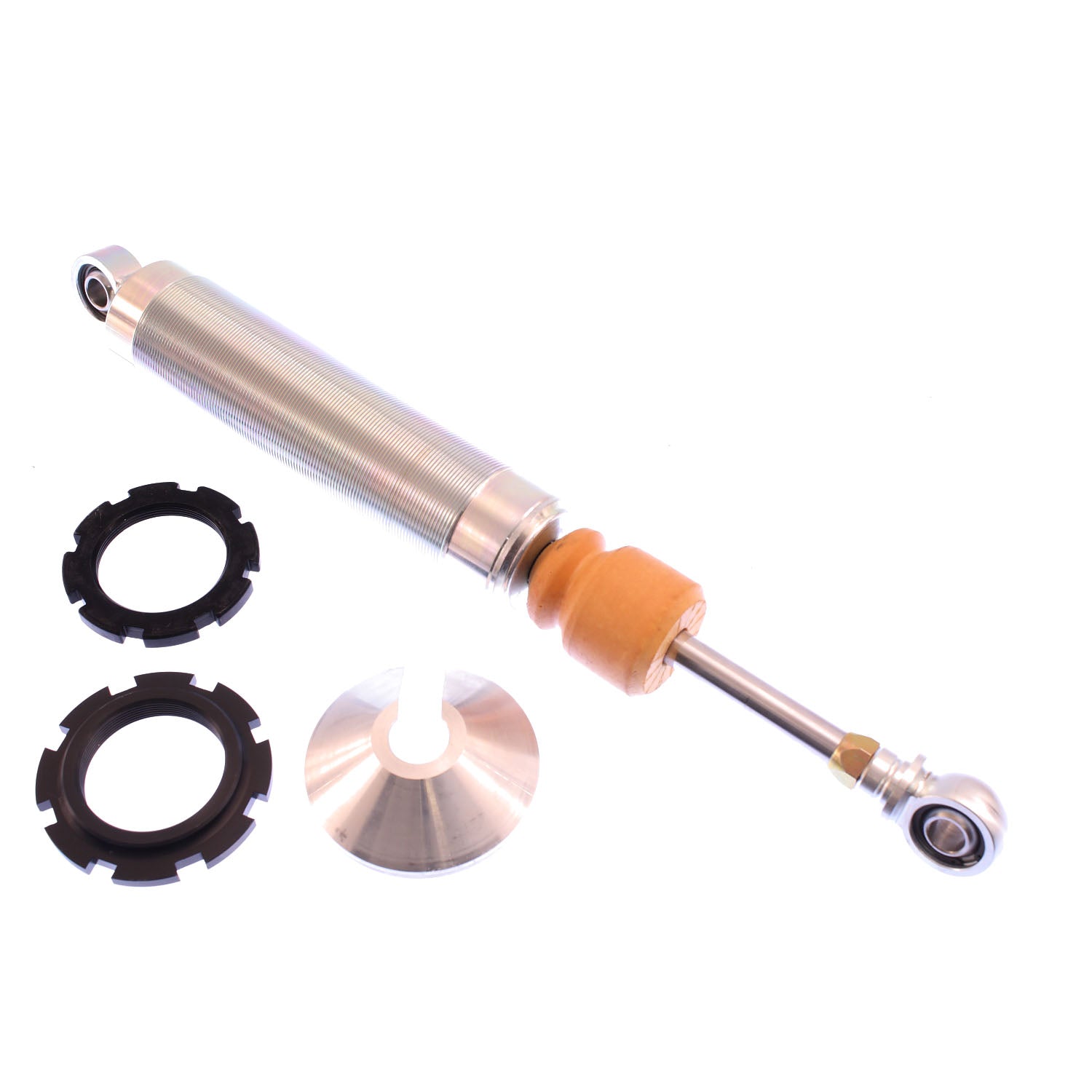

Bilstein Shock Absorbers B46-0206W

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Attributes:

• GTIN: 00790832511729
• Brand Name: Bilstein
• Internal Design: Monotube
• Collapsed Length (IN) Rounded: 14
• Rebound @0.52m/s: Custom
• Series: M 7100 Classic (Coilover)
• Collapsed Length (IN): 14.00
• Upper Mount Type: 1/2in Heim
• Optional Reservoir Clamp: N/A
• Spring Seat Included: Yes
• Body Diameter (ID): 46mm
• Compression @0.52m/s: Custom
• Extended Length (IN) Rounded: 22
• Finish: Zinc Plated
• Lower Mount Type: 1/2in Heim
• Body Design: Threaded Body (Coilover)
• Mount Type: Eye-to-Eye
• Extended Length (MM): 565.2
• Collapsed Length (MM): 355.6
• Extended Length (IN): 22.25
• Reservoir: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 5.5800 lb
