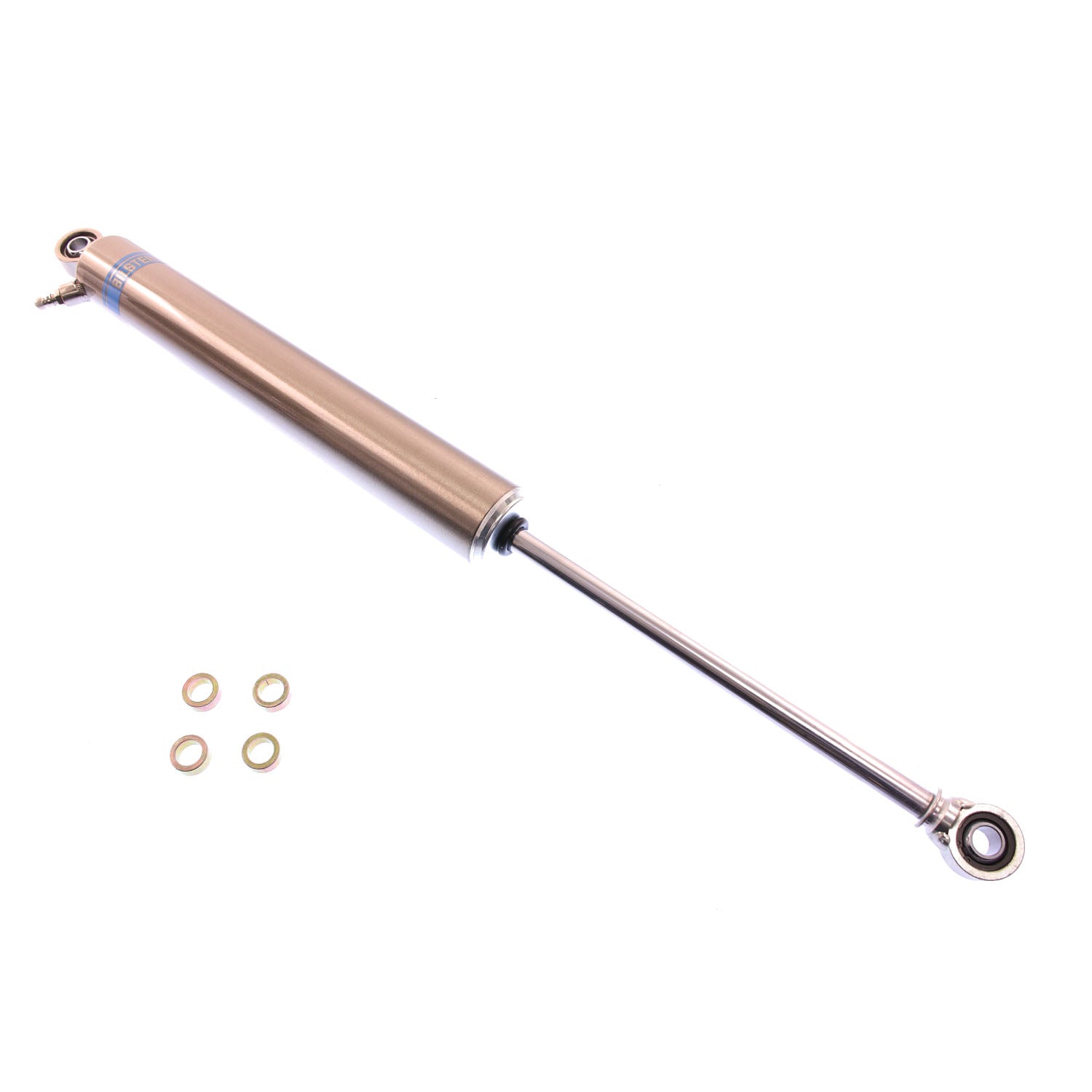

Bilstein Shock Absorbers B46-0350S

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Attributes:

• GTIN: 00790832511156
• Brand Name: Bilstein
• Extended Length (IN) Rounded: 31
• Finish: Nickel Plated with Clear Powder Coat
• Internal Design: Monotube
• Body Diameter (ID): 46mm
• Upper Mount Type: 1/2in Heim
• Collapsed Length (MM): 496.1
• Body Design: Smooth Body (Non-Coilover)
• Lower Mount Type: 1/2in Heim
• Collapsed Length (IN): 19.53
• Collapsed Length (IN) Rounded: 20
• Extended Length (MM): 789.9
• Mount Type: Eye-to-Eye
• Series: M 7100
• Reservoir: No
• Optional Reservoir Clamp: N/A
• Rebound @0.52m/s: 3600
• Compression @0.52m/s: 800
• Spring Seat Included: No
• Extended Length (IN): 31.10

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 7.0000 x 2.0000 inches
• Weight: 6.2400 lb
