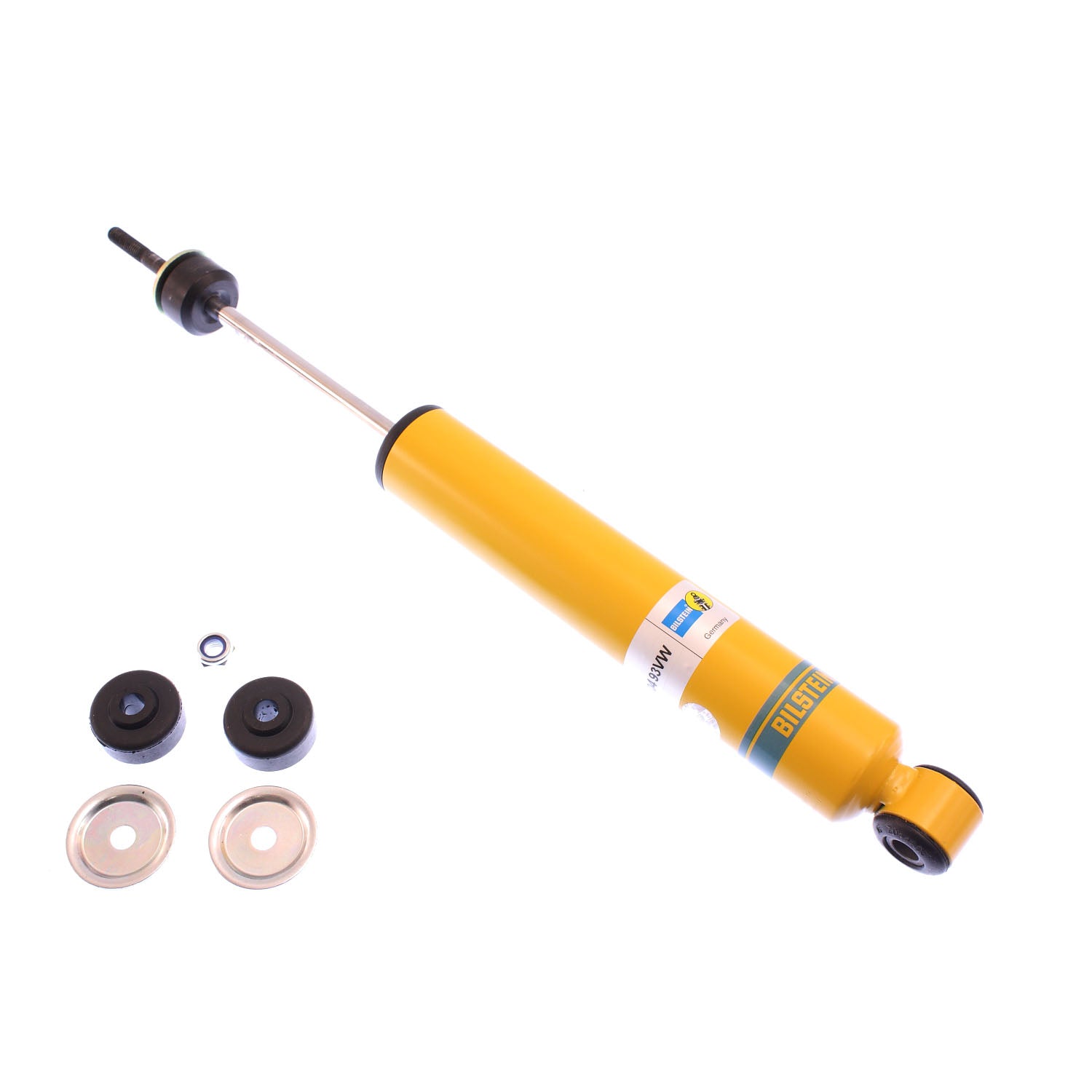

Bilstein Shock Absorbers B46-0493VW

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Attributes:

• GTIN: 00790832526815
• Brand Name: Bilstein
• Rebound @0.52m/s: 2650
• Mount Type: Stem-to-Eye
• Collapsed Length (IN): 11.70
• Internal Design: Monotube
• Upper Mount Type: Stem
• Extended Length (MM): 472.4
• Series: M 7100 Classic
• Collapsed Length (IN) Rounded: 12
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (MM): 297.2
• Optional Reservoir Clamp: N/A
• Compression @0.52m/s: 700
• Lower Mount Type: Eye 12.7mm
• Body Diameter (ID): 46mm
• Reservoir: No
• Extended Length (IN): 18.60
• Spring Seat Included: No
• Extended Length (IN) Rounded: 19
• Finish: Yellow Paint

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.0300 lb
