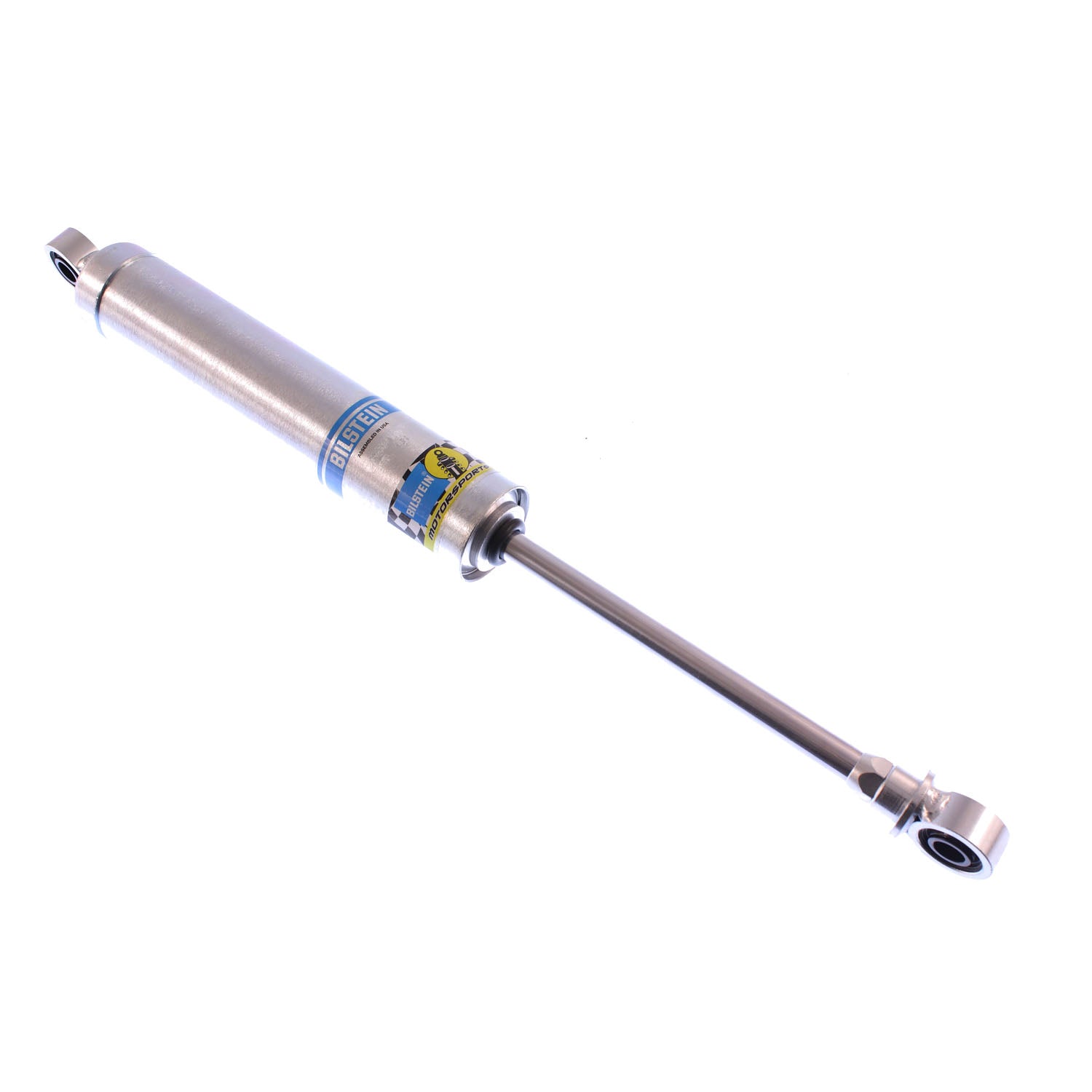

Bilstein Shock Absorbers F4-B46-0207-ZY

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Attributes:

• GTIN: 00651860406763
• Brand Name: Bilstein
• Extended Length (IN): 23.52
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Series: SZ Series
• Collapsed Length (MM): 378.0
• Valving Identifier: 7030
• Spring Seat Included: No
• Compression @0.26m/s: 690
• Boot Included: No
• Finish: Zinc Plated
• Upper Mount Type: 1/2in Heim
• Extended Length (MM): 597.5
• Adjustable Damping: Non-Adjustable
• Body Diameter (ID): 46mm
• Lower Mount Type: 1/2in Heim
• Internal Design: Monotube
• Rebound @0.26m/s: 1355
• Collapsed Length (IN): 14.88
• Piston Type: Digressive

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 lb
