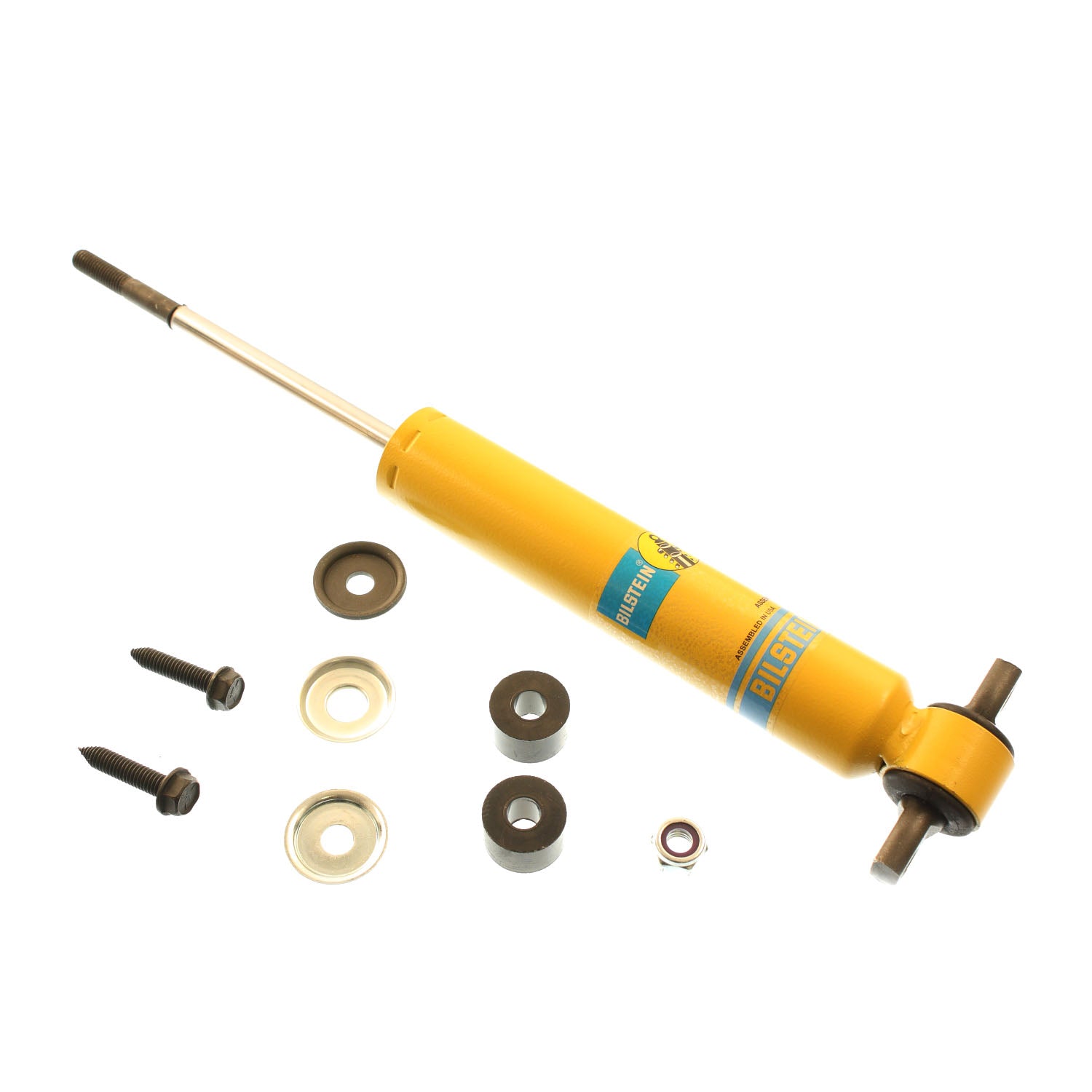

Bilstein Shock Absorbers F4-BE3-C750-M2

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860635194
• Brand Name: Bilstein
• Internal Design: Monotube
• Body Material: Steel
• Collapsed Length (MM): 221.8
• Spring Seat Included: No
• Valving Identifier: 158/117
• Boot Included: No
• Extended Length (IN): 13.46
• Upper Mount Type: Stem
• Compression @0.26m/s: 920
• Series: AK Series
• Body Diameter (ID): 36mm
• Body Design: Stock Mount Smooth Body
• Extended Length (MM): 342.0
• Adjustable Damping: Non-Adjustable
• Lower Mount Type: Bar Pin
• Piston Type: Digressive
• Finish: Yellow Paint
• Collapsed Length (IN): 8.73
• Rebound @0.26m/s: 585

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.0900 lb
