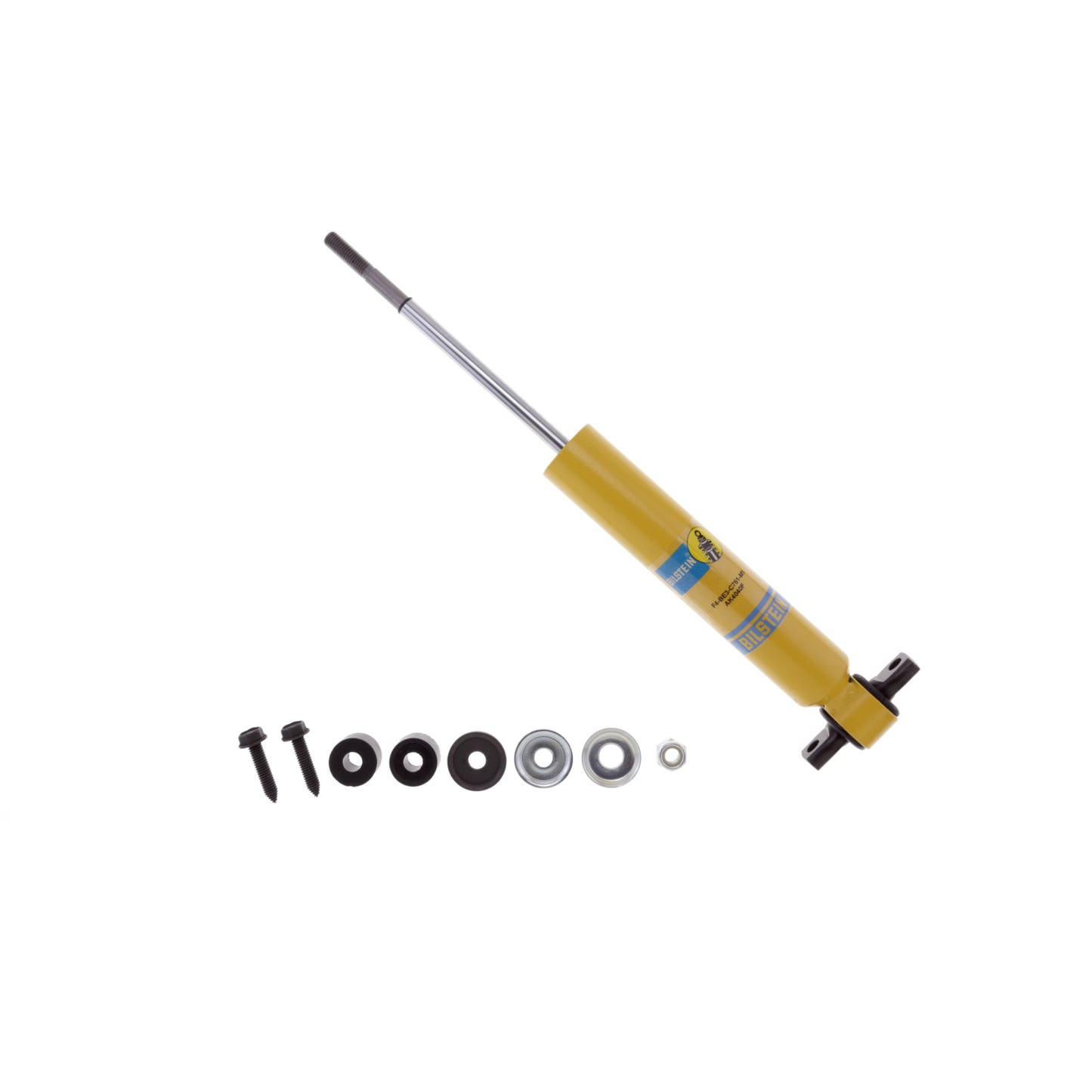

Bilstein Shock Absorbers F4-BE3-C751-M2

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860751849
• Brand Name: Bilstein
• Rebound @0.26m/s: 880
• Lower Mount Type: Bar Pin
• Internal Design: Monotube
• Series: AK Series
• Body Diameter (ID): 36mm
• Body Design: Stock Mount Smooth Body
• Collapsed Length (MM): 221.8
• Extended Length (IN): 13.46
• Upper Mount Type: Stem
• Compression @0.26m/s: 685
• Boot Included: No
• Finish: Yellow Paint
• Body Material: Steel
• Collapsed Length (IN): 8.73
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Type: Digressive
• Valving Identifier: 197/154
• Extended Length (MM): 342.0

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.5600 lb
