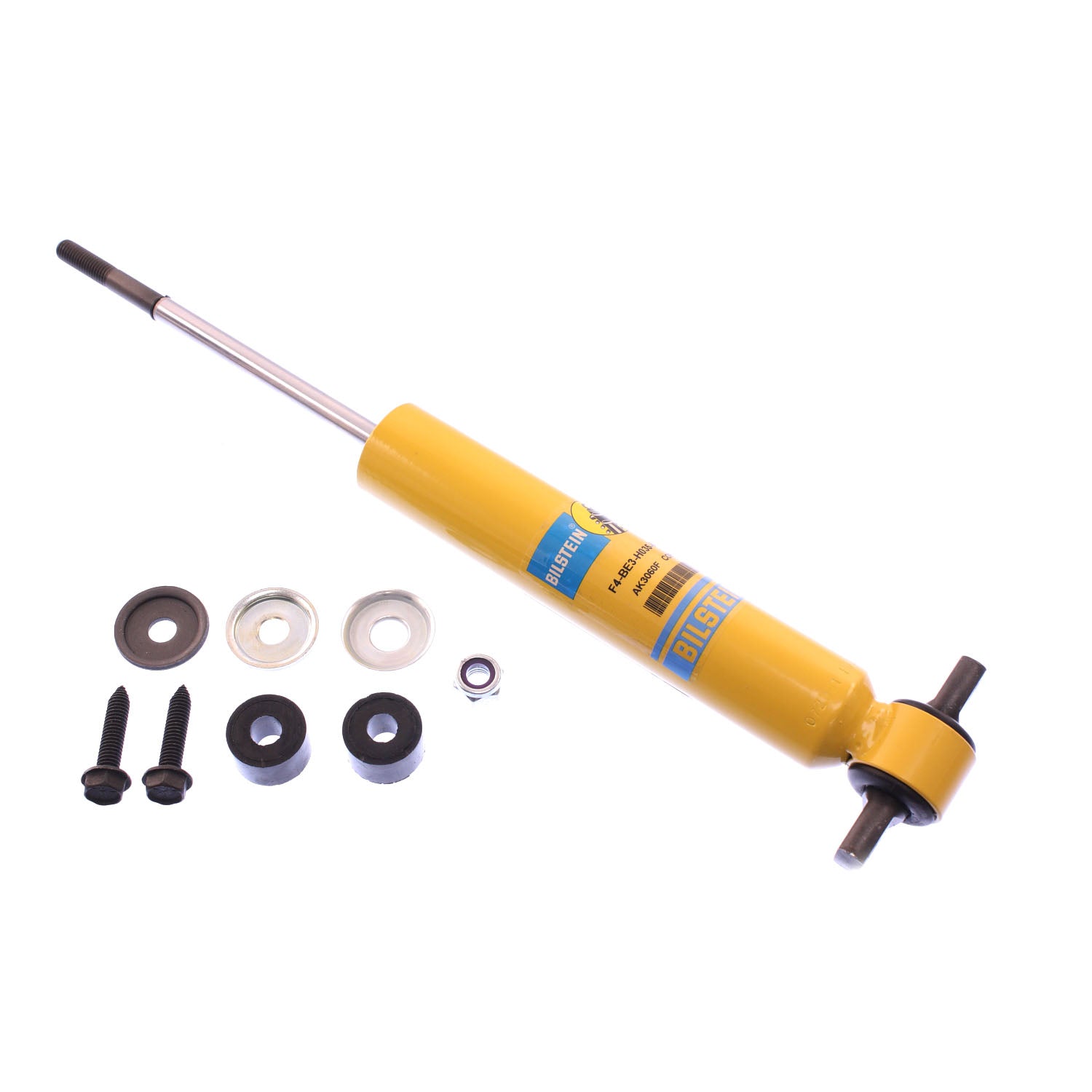

Bilstein Shock Absorbers F4-BE3-H035-M0

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860648934
• Brand Name: Bilstein
• Extended Length (IN): 13.46
• Rebound @0.26m/s: 565
• Collapsed Length (MM): 221.8
• Finish: Yellow Paint
• Piston Type: Digressive
• Boot Included: No
• Collapsed Length (IN): 8.73
• Body Material: Steel
• Upper Mount Type: Stem
• Body Diameter (ID): 36mm
• Series: AK Series
• Body Design: Stock Mount Smooth Body
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Valving Identifier: 110/233 COB
• Extended Length (MM): 342.0
• Internal Design: Monotube
• Lower Mount Type: Bar Pin
• Compression @0.26m/s: 980

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.0900 lb
