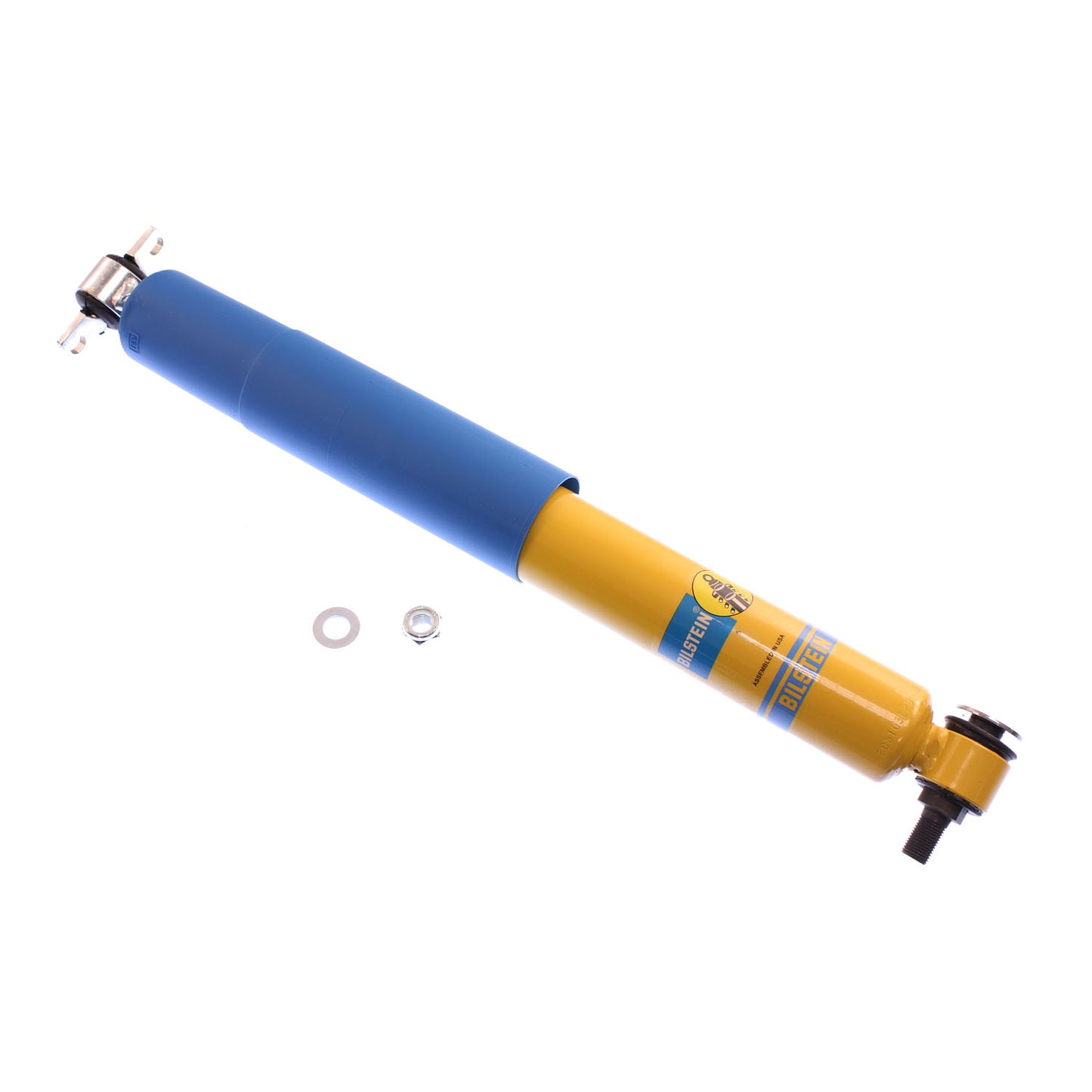

F4-BE5-E250-M0 Bilstein Shock Absorbers

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860589404
• Brand Name: Bilstein
• Body Diameter (ID): 46mm
• Series: AK Series
• Lower Mount Type: Cantilever
• Valving Identifier: 254/141
• Collapsed Length (IN): 13.11
• Body Design: Stock Mount Smooth Body
• Internal Design: Monotube
• Body Material: Steel
• Collapsed Length (MM): 333.0
• Extended Length (IN): 20.28
• Boot Included: Blue Straight
• Adjustable Damping: Non-Adjustable
• Compression @0.26m/s: 630
• Piston Type: Linear
• Rebound @0.26m/s: 1130
• Spring Seat Included: No
• Finish: Yellow Paint
• Extended Length (MM): 515.0
• Upper Mount Type: Bar Pin

Extended Information:

• Country of Origin: Mexico
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.6300 lb
