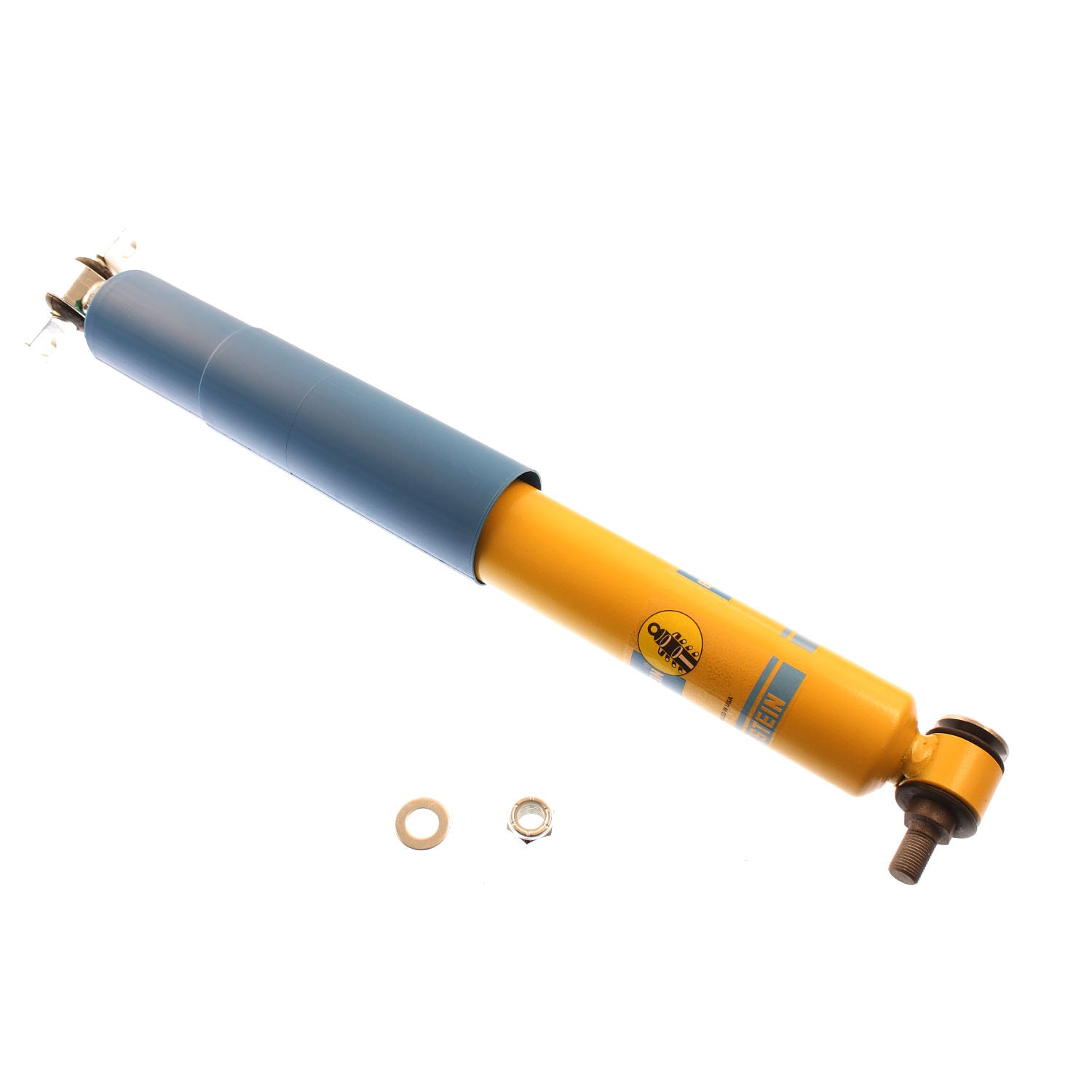

Bilstein Shock Absorbers F4-BE5-F132-M0

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860608099
• Brand Name: Bilstein
• Rebound @0.26m/s: 430
• Spring Seat Included: No
• Body Material: Steel
• Boot Included: Blue Straight
• Lower Mount Type: Cantilever
• Valving Identifier: 70/70
• Body Design: Stock Mount Smooth Body
• Collapsed Length (IN): 13.11
• Compression @0.26m/s: 335
• Adjustable Damping: Non-Adjustable
• Body Diameter (ID): 46mm
• Collapsed Length (MM): 333.0
• Extended Length (MM): 515.0
• Finish: Yellow Paint
• Piston Type: Digressive
• Internal Design: Monotube
• Extended Length (IN): 20.28
• Upper Mount Type: Bar Pin
• Series: AK Series

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.6300 lb
