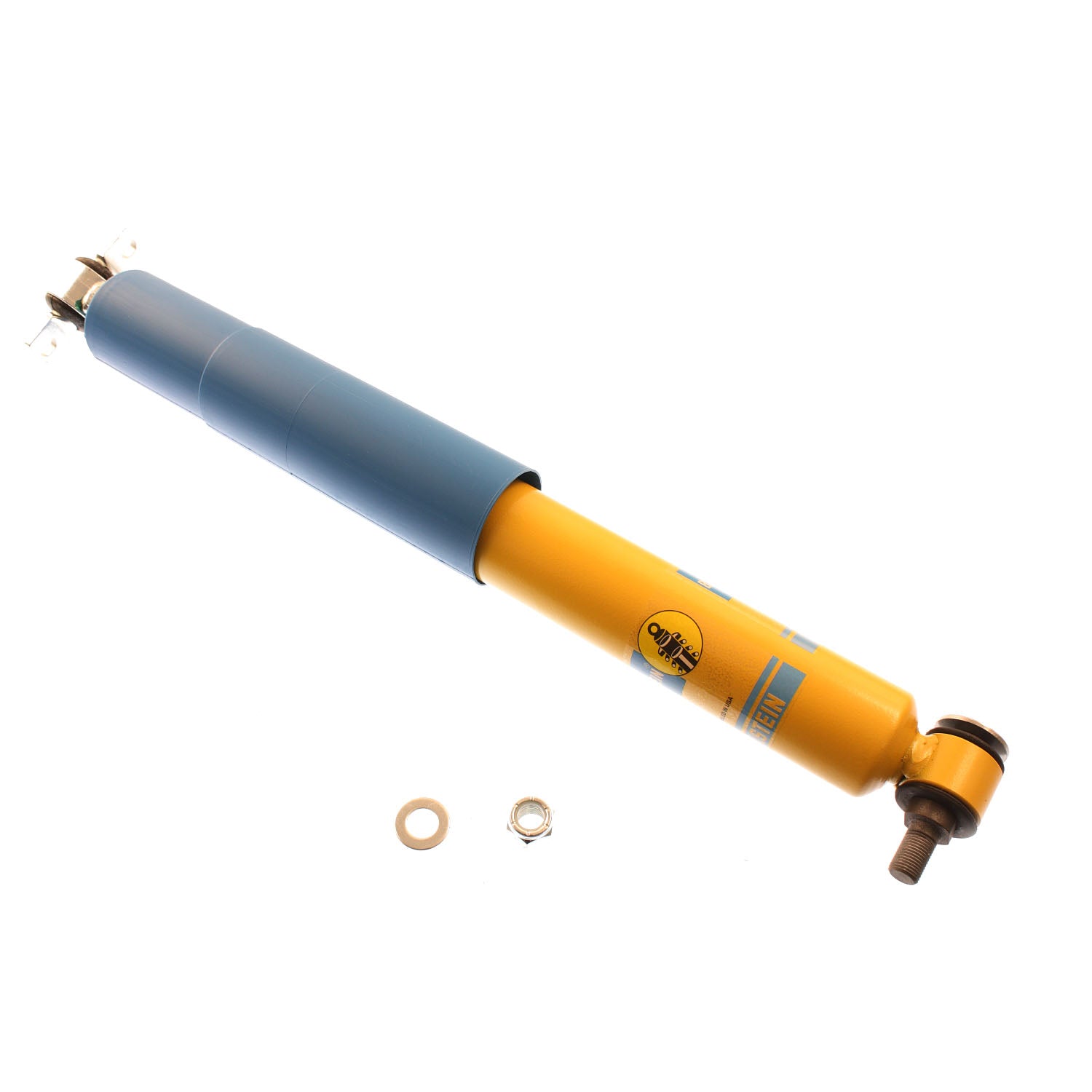

Bilstein Shock Absorbers F4-BE5-F134-M0

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860608112
• Brand Name: Bilstein
• Rebound @0.26m/s: 285
• Upper Mount Type: Bar Pin
• Extended Length (MM): 515.0
• Body Diameter (ID): 46mm
• Lower Mount Type: Cantilever
• Valving Identifier: 70/140
• Body Material: Steel
• Body Design: Stock Mount Smooth Body
• Boot Included: Blue Straight
• Piston Type: Digressive
• Adjustable Damping: Non-Adjustable
• Compression @0.26m/s: 595
• Finish: Yellow Paint
• Internal Design: Monotube
• Collapsed Length (IN): 13.11
• Spring Seat Included: No
• Series: AK Series
• Extended Length (IN): 20.28
• Collapsed Length (MM): 333.0

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.6300 lb
