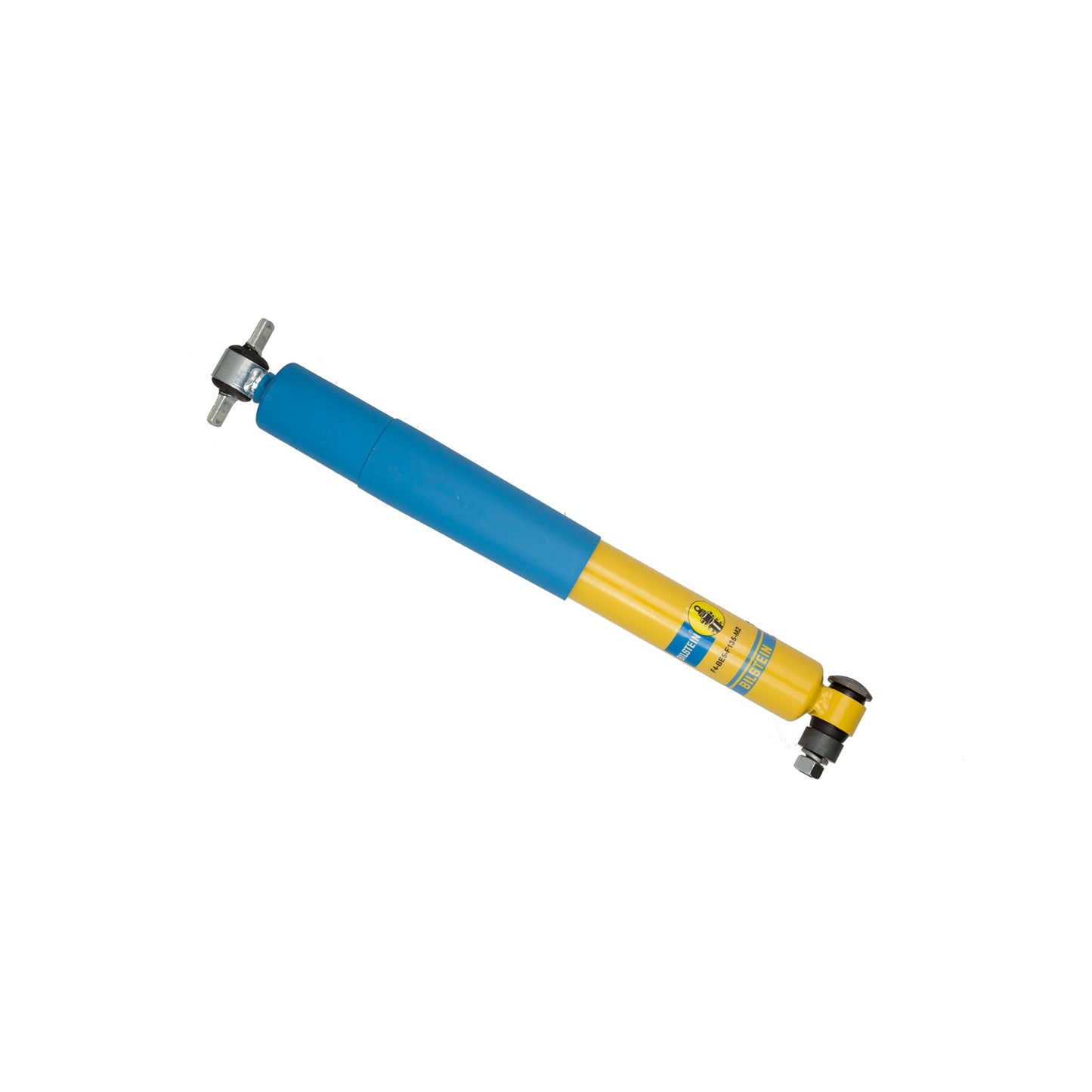

Bilstein Shock Absorbers F4-BE5-F135-M2

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

Attributes:

• GTIN: 00651860787473
• Brand Name: Bilstein
• Body Material: Steel
• Compression @0.26m/s: 295
• Collapsed Length (IN): 13.11
• Rebound @0.26m/s: 785
• Extended Length (MM): 515.0
• Extended Length (IN): 20.28
• Lower Mount Type: Cantilever
• Valving Identifier: 185/70
• Body Design: Stock Mount Smooth Body
• Upper Mount Type: Bar Pin
• Collapsed Length (MM): 333.0
• Boot Included: Blue Straight
• Body Diameter (ID): 46mm
• Adjustable Damping: Non-Adjustable
• Series: AK Series
• Spring Seat Included: No
• Finish: Yellow Paint
• Piston Type: Digressive
• Internal Design: Monotube

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 4.7000 lb
