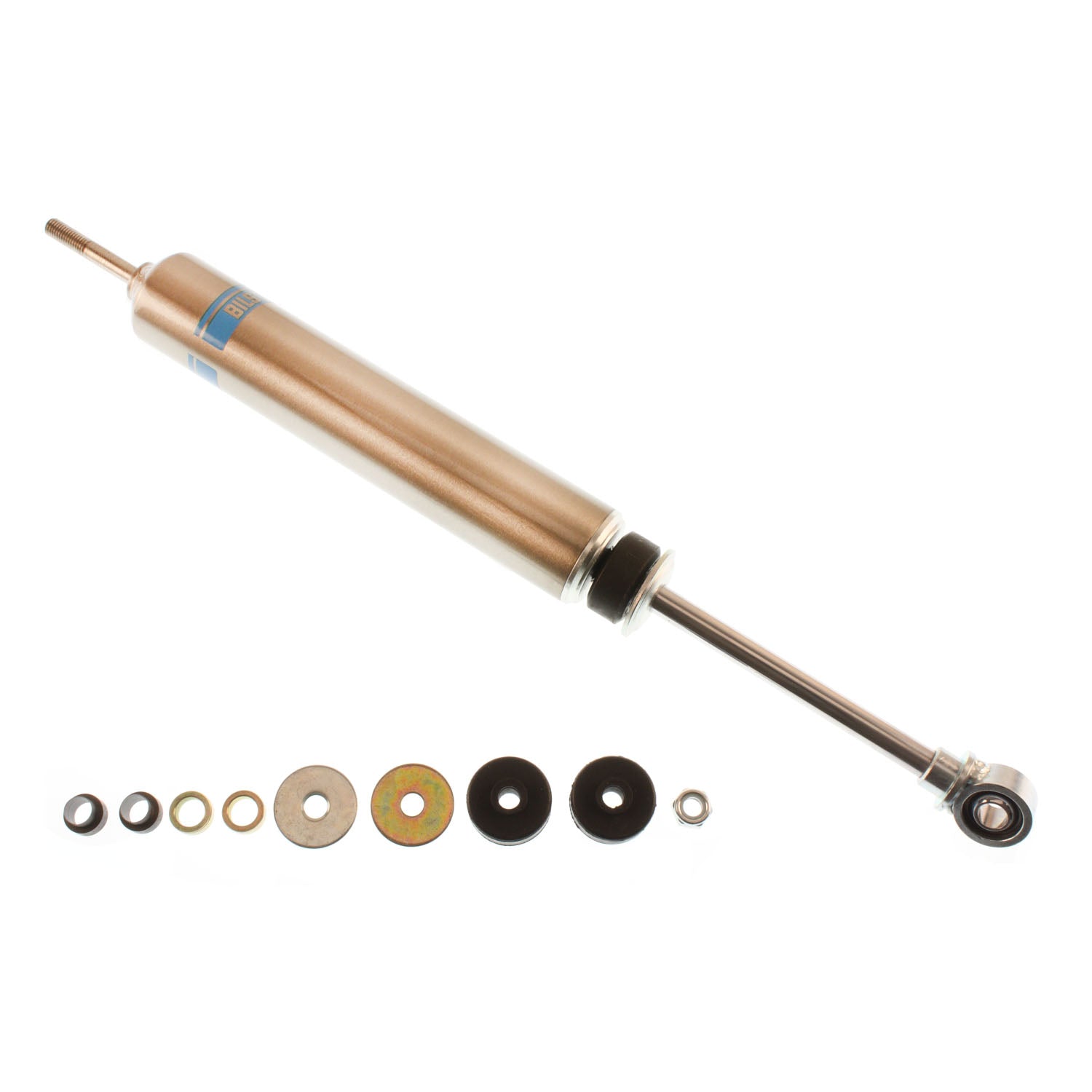

Bilstein Shock Absorbers F4-BOA-0000304

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

Attributes:

• GTIN: 00790832512252
• Brand Name: Bilstein
• Rebound @0.52m/s: 2200
• Spring Seat Included: No
• Lower Mount Type: 12mm Heim
• Reservoir: No
• Body Diameter (ID): 46mm
• Extended Length (IN) Rounded: 19
• Extended Length (IN): 18.74
• Internal Design: Monotube
• Optional Reservoir Clamp: N/A
• Mount Type: Stem-to-Eye
• Series: M 7100 Classic
• Body Design: Smooth Body (Non-Coilover)
• Compression @0.52m/s: 1150
• Upper Mount Type: Stem
• Collapsed Length (MM): 308.6
• Finish: Nickel Plated with Clear Powder Coat
• Collapsed Length (IN) Rounded: 12
• Extended Length (MM): 476.0
• Collapsed Length (IN): 12.15

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 4.3000 lb
