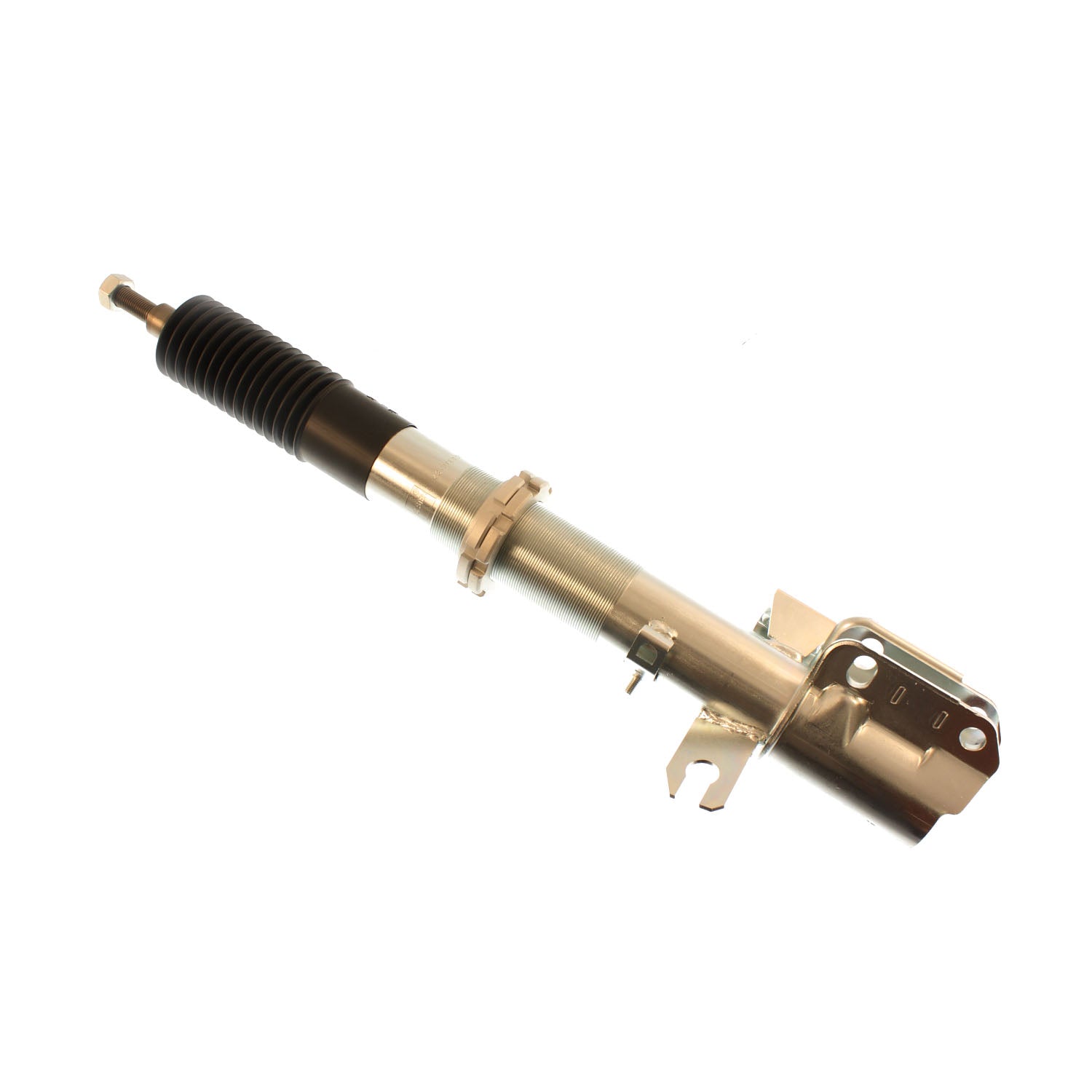

Bilstein Shock Absorbers 35-593751

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

Attributes:

• GTIN: 00651860501574
• Brand Name: Bilstein
• Piston Type: Digressive
• Series: Motorsports
• Spring Seat Included: Yes
• Extended Length (IN): 20.53
• Adjustable Damping: Non-Adjustable
• Compression @0.26m/s: 1440
• Internal Design: Monotube
• Lower Mount Type: Bracket
• Body Design: Threaded Body (Coilover)
• Rebound @0.26m/s: 5370
• Extended Length (MM): 521.5
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Body Material: Steel
• Collapsed Length (IN): 16.61
• Upper Mount Type: Stem
• Position: Front
• Finish: Zinc Plated
• Collapsed Length (MM): 422.0
• Valving Identifier: N/A

Extended Information:

• Country of Origin: Germany
• Life Cycle Status: Available To Order
• Emissions : Released

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 9.7900 lb
