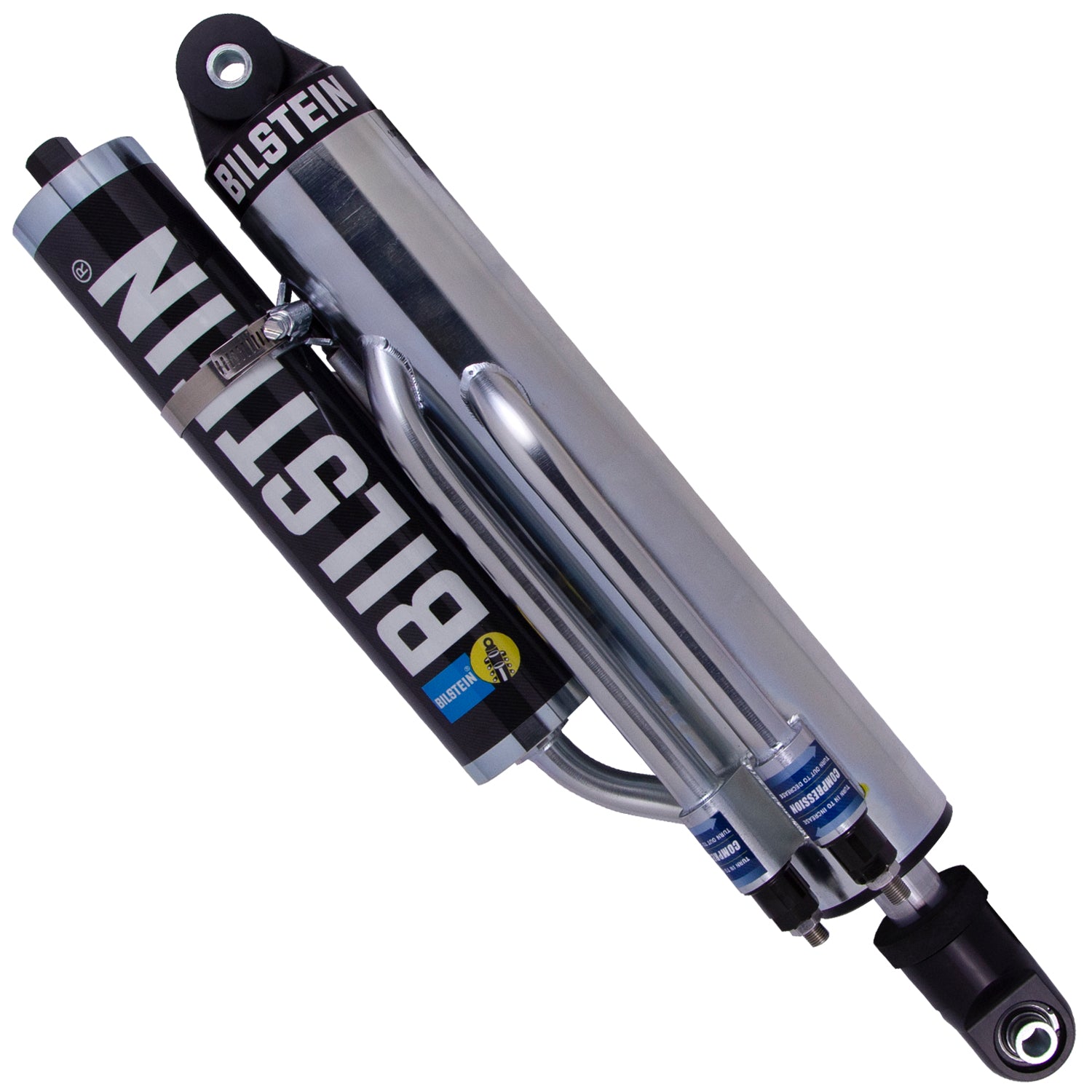

Bilstein Shock Absorbers 33-250625

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860766546
• Brand Name: Bilstein
• Mount Type: Eye-to-Eye
• Collapsed Length (IN) Rounded: 20
• Rebound @0.52m/s: Custom
• Collapsed Length (MM): 495.3
• Body Diameter (ID): 70mm
• Lower Mount Type: Eye .5x1.5in
• Compression @0.52m/s: Custom
• Position: Right
• Reservoir: Yes
• Upper Mount Type: Eye .5x1.5in
• Extended Length (MM): 749.3
• Collapsed Length (IN): 19.50
• Body Design: 3-Tube Bypass Screw Top
• Extended Length (IN) Rounded: 30
• Finish: Zinc Plated
• Spring Seat Included: No
• Optional Reservoir Clamp: N/A
• Series: M 9200 (Bypass)
• Internal Design: Monotube
• Boot Included: N/A
• Extended Length (IN): 29.50

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 28.4000 lb
