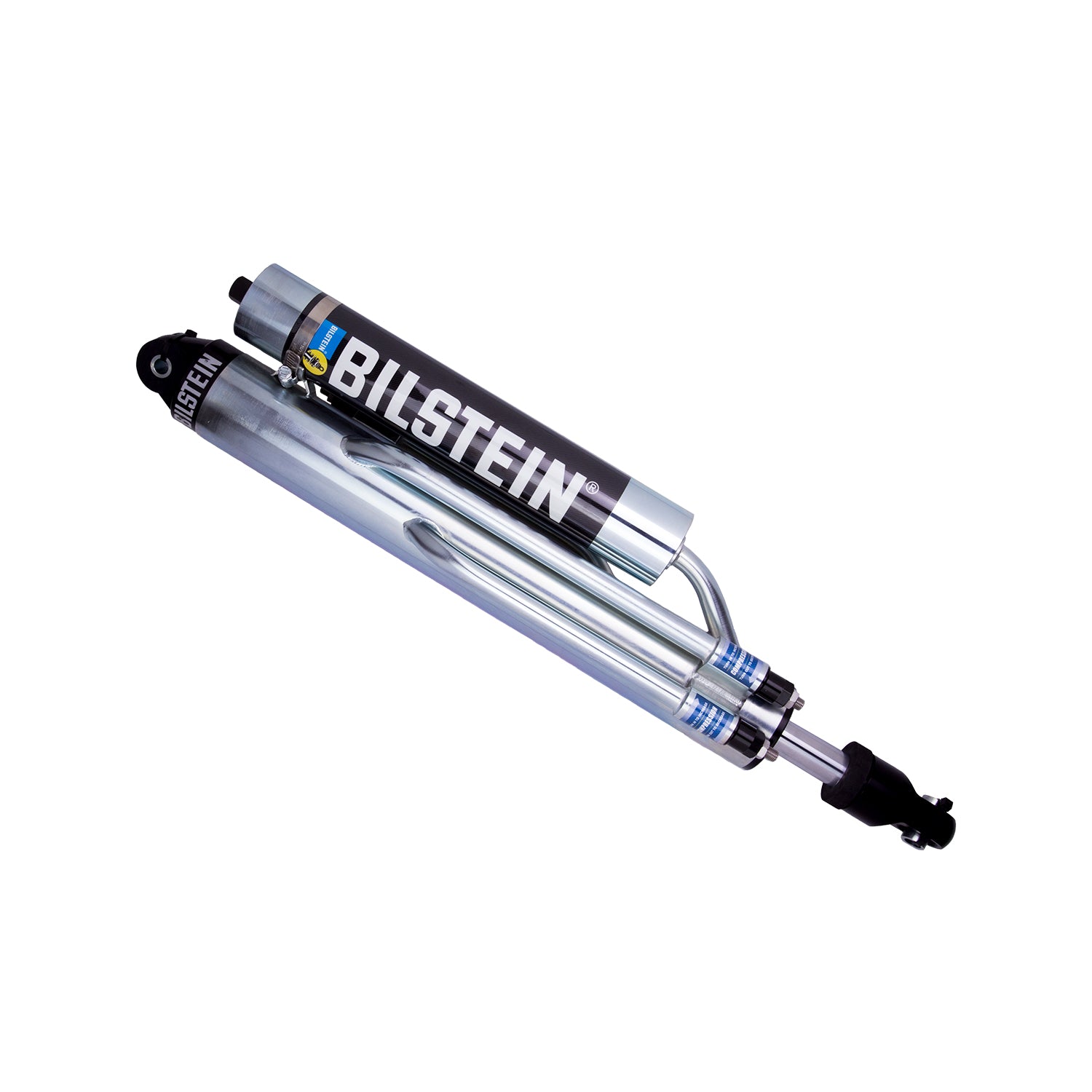

Bilstein Shock Absorbers 33-250656

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860766843
• Brand Name: Bilstein
• Body Design: 3-Tube Bypass Screw Top
• Compression @0.52m/s: Custom
• Position: Left
• Extended Length (MM): 977.9
• Collapsed Length (IN) Rounded: 25
• Body Diameter (ID): 70mm
• Boot Included: N/A
• Internal Design: Monotube
• Spring Seat Included: No
• Reservoir: Yes
• Collapsed Length (MM): 622.3
• Finish: Zinc Plated
• Rebound @0.52m/s: Custom
• Series: M 9200 (Bypass)
• Lower Mount Type: Eye .5x1.5in
• Extended Length (IN) Rounded: 39
• Extended Length (IN): 38.50
• Collapsed Length (IN): 24.50
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• Upper Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 34.0400 lb
