47-234413 Bilstein Shock Absorbers

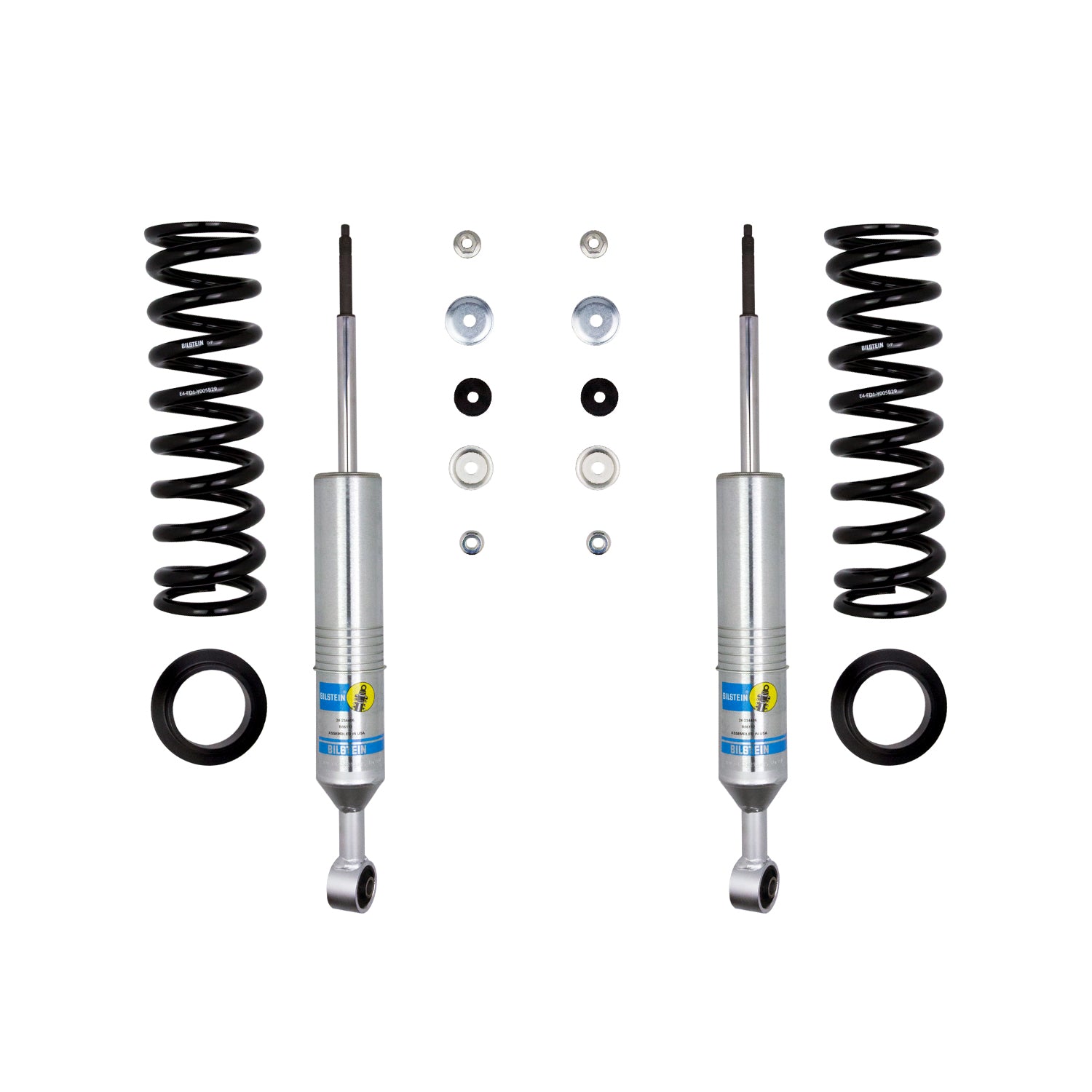

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Attributes:

• GTIN: 00651860785417
• Brand Name: Bilstein
• Optional Heavy Load Springs: 53-291387
• Internal Design: Monotube
• Series: B8 6112
• Body Diameter (ID): 60mm
• Spring Seat Included: Yes
• Reservoir: No
• Finish: Dampers: Zinc Plated/Springs: Black
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Upper Mount Type: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 28.0000 x 12.7500 x 4.6250 inches
• Weight: 41.0900 lb
