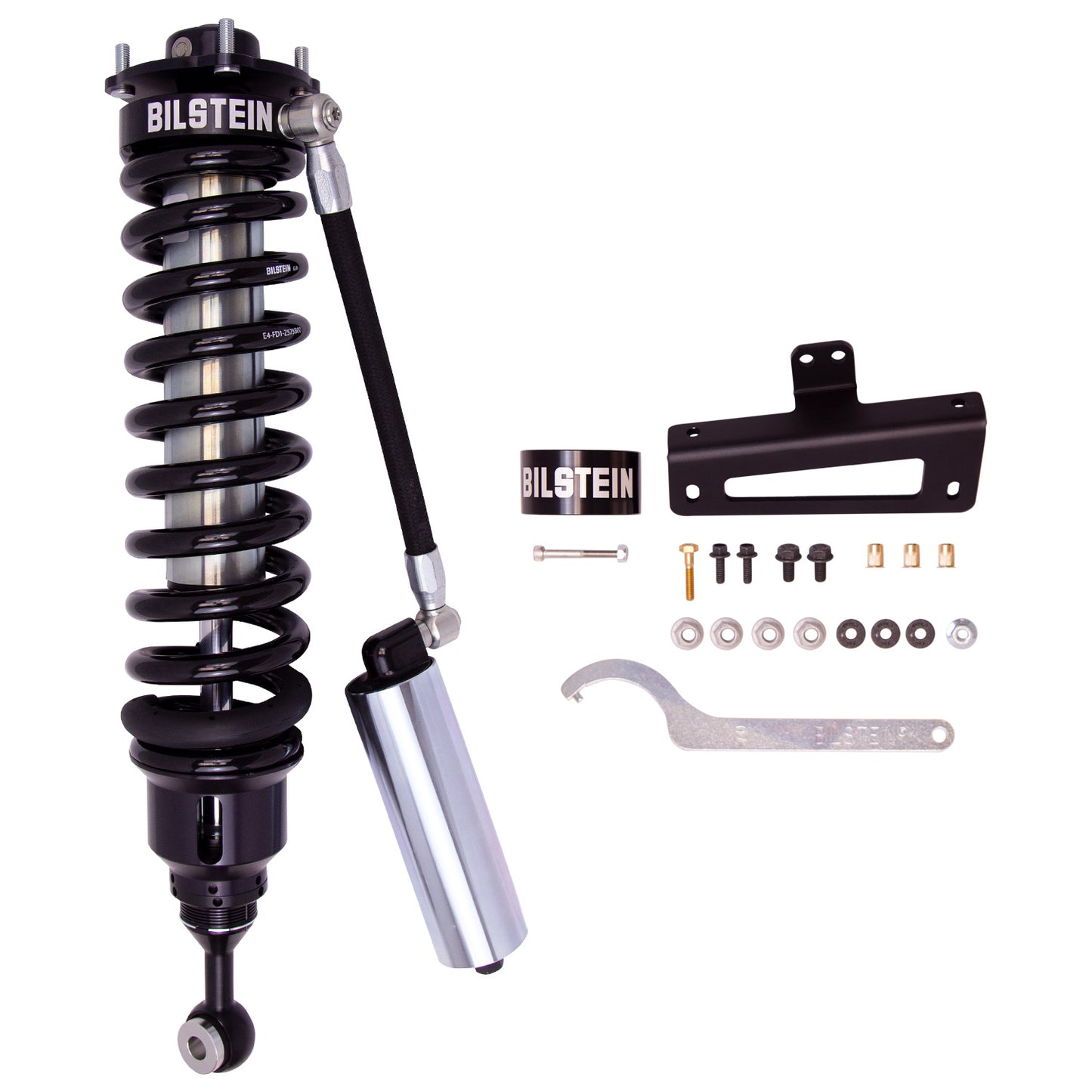

Bilstein Shock Absorbers 41-284544

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Attributes:

• GTIN: 00651860838489
• Brand Name: Bilstein
• Collapsed Length (IN): 19.43
• Series: B8 8112 (ZoneControl CR)
• Body Diameter (ID): 60mm
• Spring Seat Included: Yes
• Body Material: Steel
• Internal Design: Monotube
• Extended Length (IN): 25.79
• Upper Mount Type: Special
• Collapsed Length (MM): 493.6
• Finish: Dampers: Zinc Plated/Springs: Black
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Coilover)
• Reservoir: Yes
• Lower Mount Type: Eye 16.1mm
• Optional Heavy Load Springs: N/A
• Boot Included: No
• Extended Length (MM): 655.1
• Aftermarket Upper Arms Required: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 41.0000 lb
