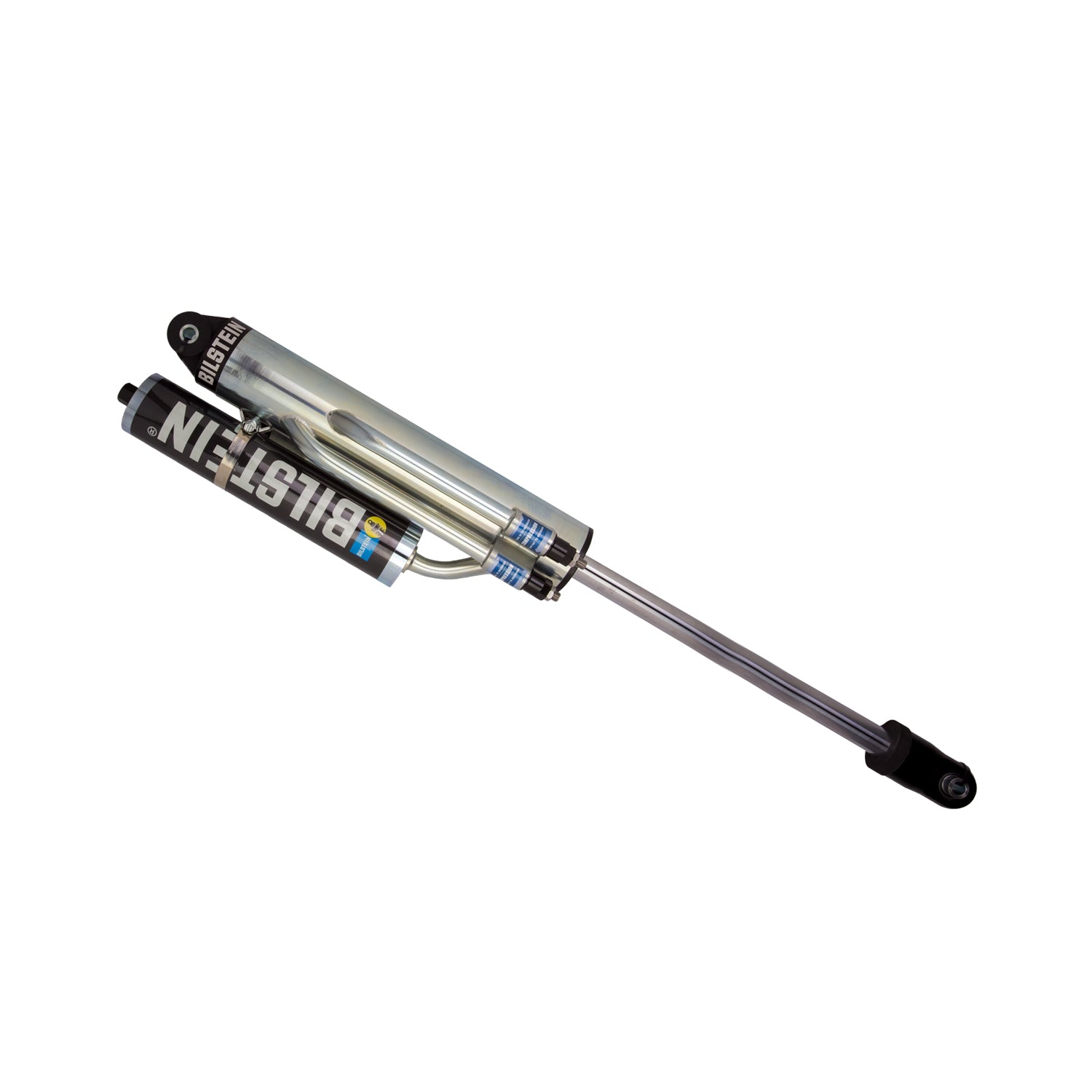

Bilstein Shock Absorbers 33-250793

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860766935
• Brand Name: Bilstein
• Spring Seat Included: No
• Extended Length (IN) Rounded: 39
• Finish: Zinc Plated
• Mount Type: Eye-to-Eye
• Body Diameter (ID): 70mm
• Internal Design: Monotube
• Extended Length (IN): 38.50
• Body Design: 4-Tube Bypass Screw Top
• Rebound @0.52m/s: Custom
• Collapsed Length (IN) Rounded: 25
• Collapsed Length (IN): 24.50
• Series: M 9200 (Bypass)
• Boot Included: N/A
• Optional Reservoir Clamp: N/A
• Upper Mount Type: Eye .5x1.5in
• Position: Right
• Reservoir: Yes
• Lower Mount Type: Eye .5x1.5in
• Compression @0.52m/s: Custom
• Collapsed Length (MM): 622.3
• Extended Length (MM): 977.9

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 34.7400 lb
