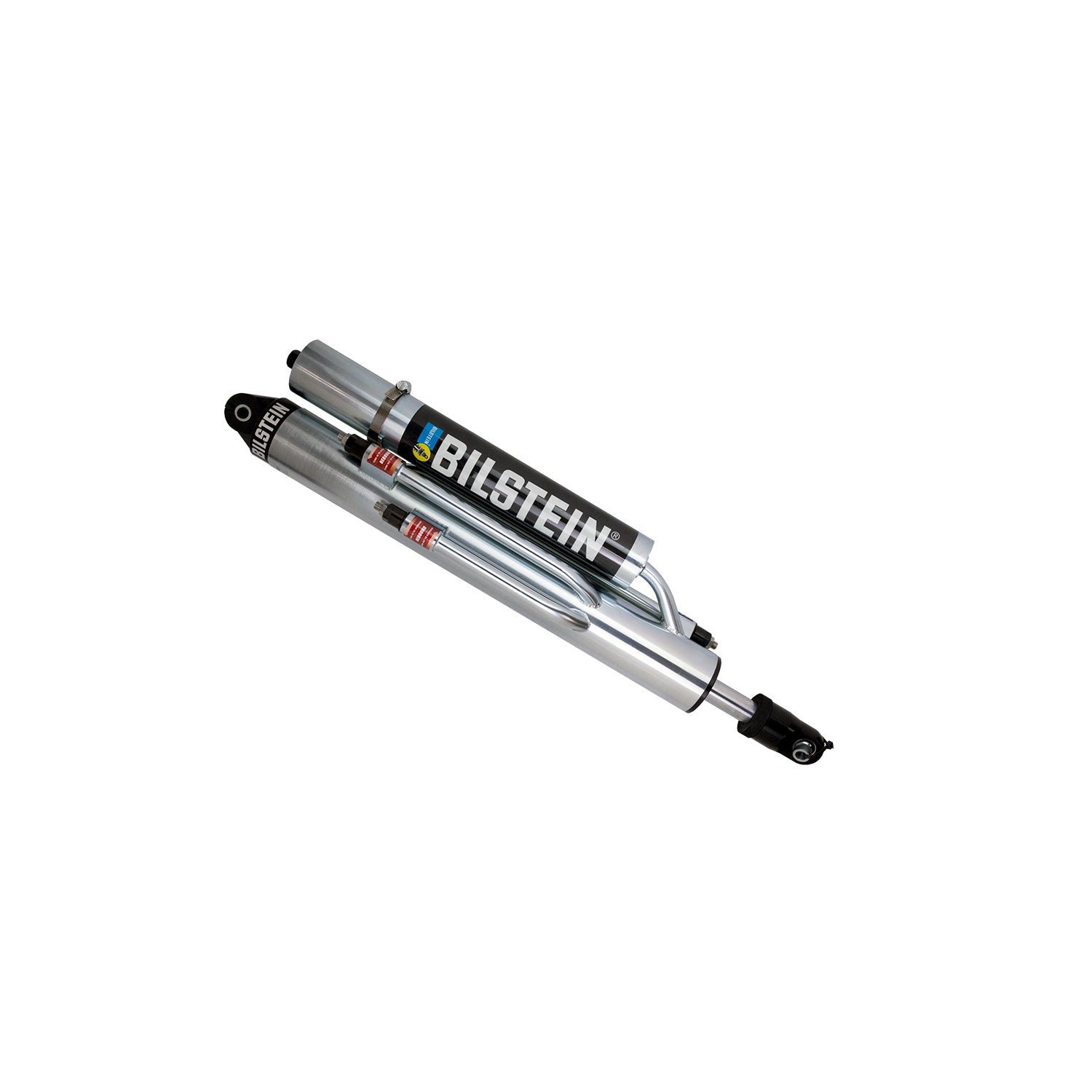

Bilstein Shock Absorbers 33-250816

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Attributes:

• GTIN: 00651860766959
• Brand Name: Bilstein
• Spring Seat Included: No
• Collapsed Length (MM): 673.1
• Body Design: 4-Tube Bypass Screw Top
• Upper Mount Type: Eye .5x1.5in
• Series: M 9200 (Bypass)
• Mount Type: Eye-to-Eye
• Finish: Zinc Plated
• Internal Design: Monotube
• Collapsed Length (IN) Rounded: 27
• Collapsed Length (IN): 26.50
• Body Diameter (ID): 70mm
• Rebound @0.52m/s: Custom
• Extended Length (MM): 1079.5
• Extended Length (IN): 42.50
• Lower Mount Type: Eye .5x1.5in
• Reservoir: Yes
• Boot Included: N/A
• Compression @0.52m/s: Custom
• Extended Length (IN) Rounded: 43
• Position: Right
• Optional Reservoir Clamp: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 37.5000 lb
