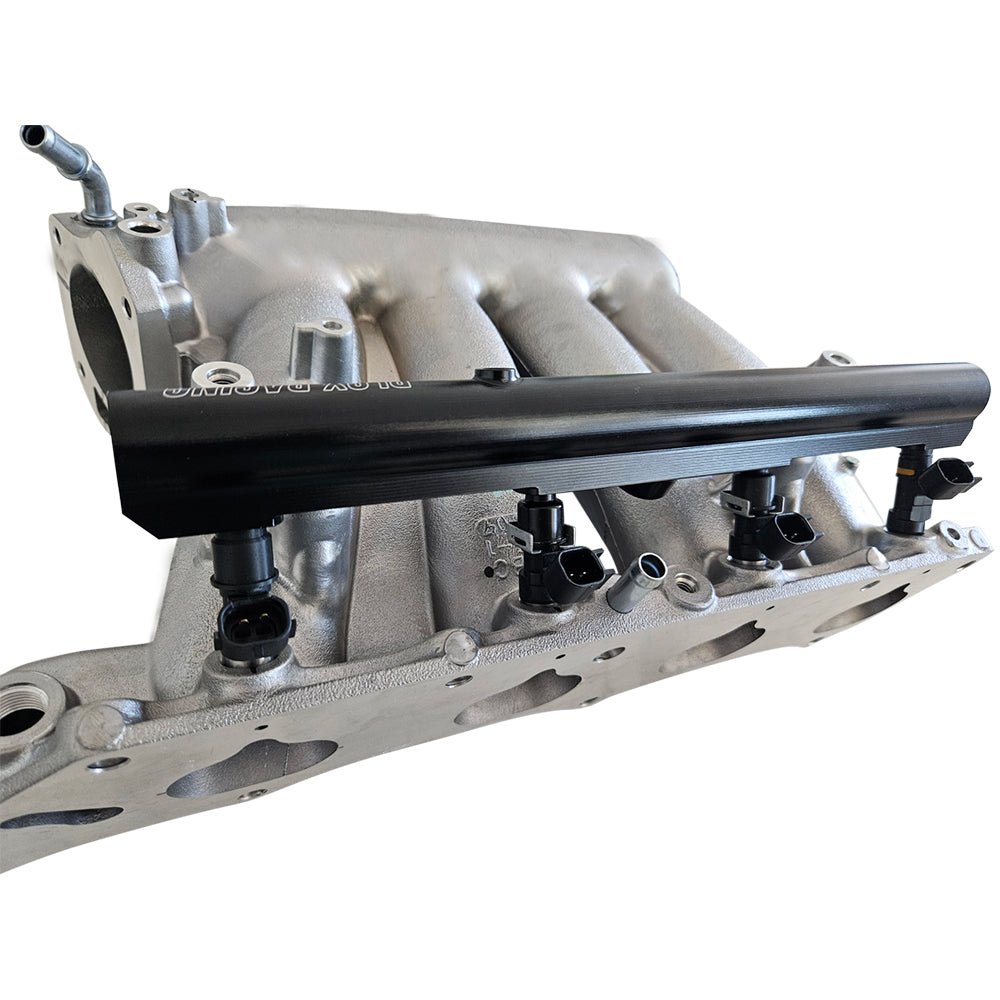

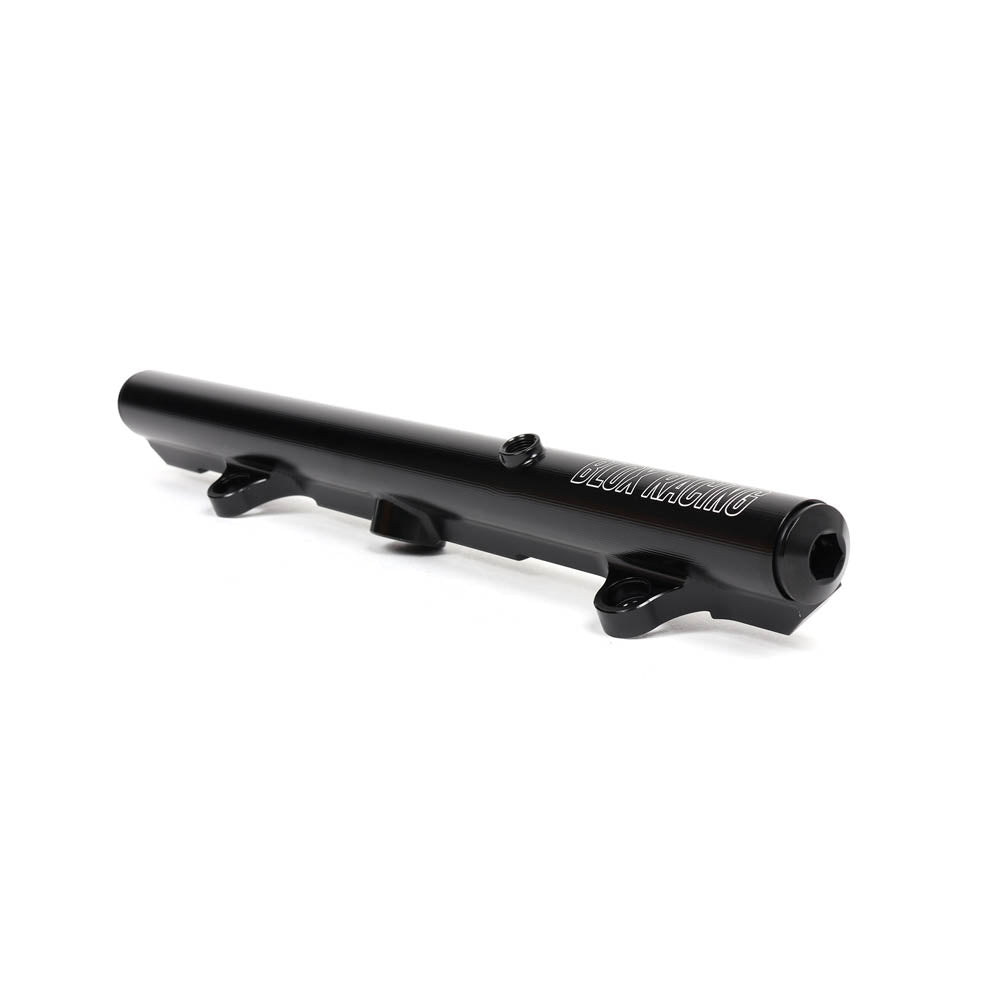

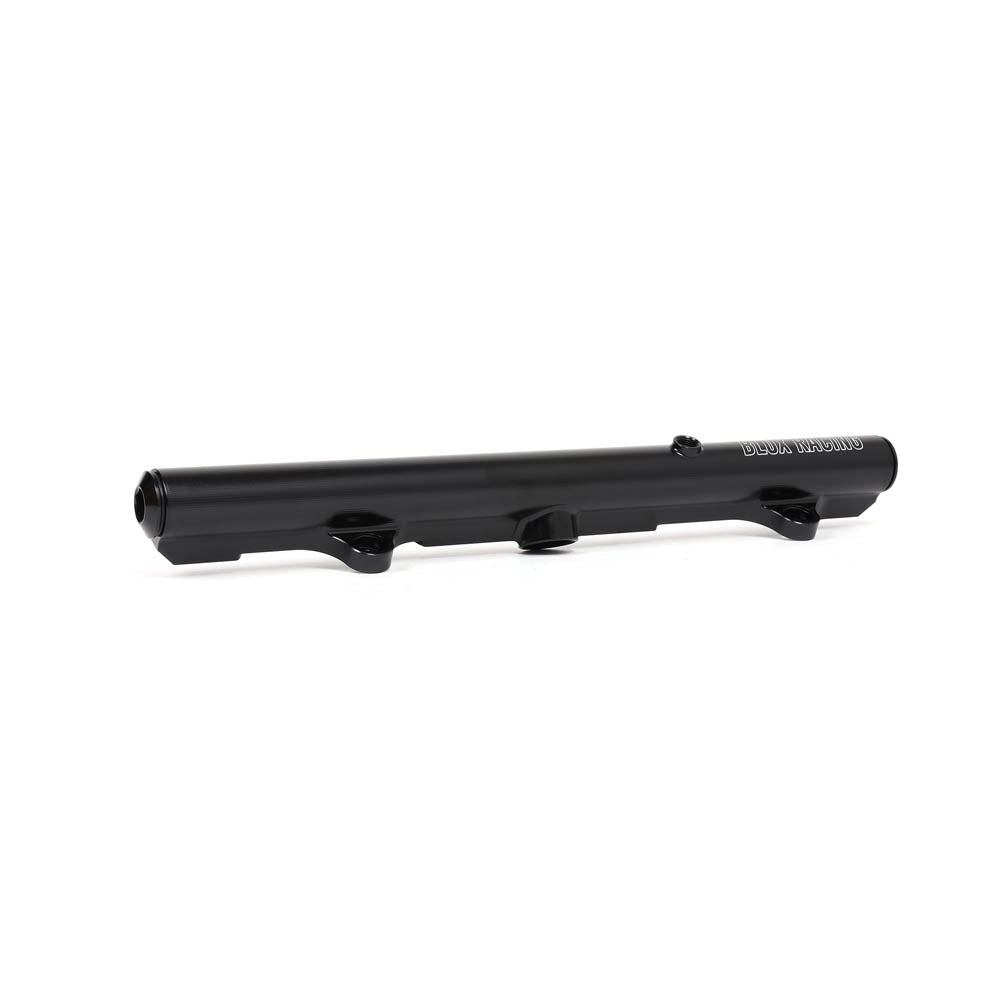

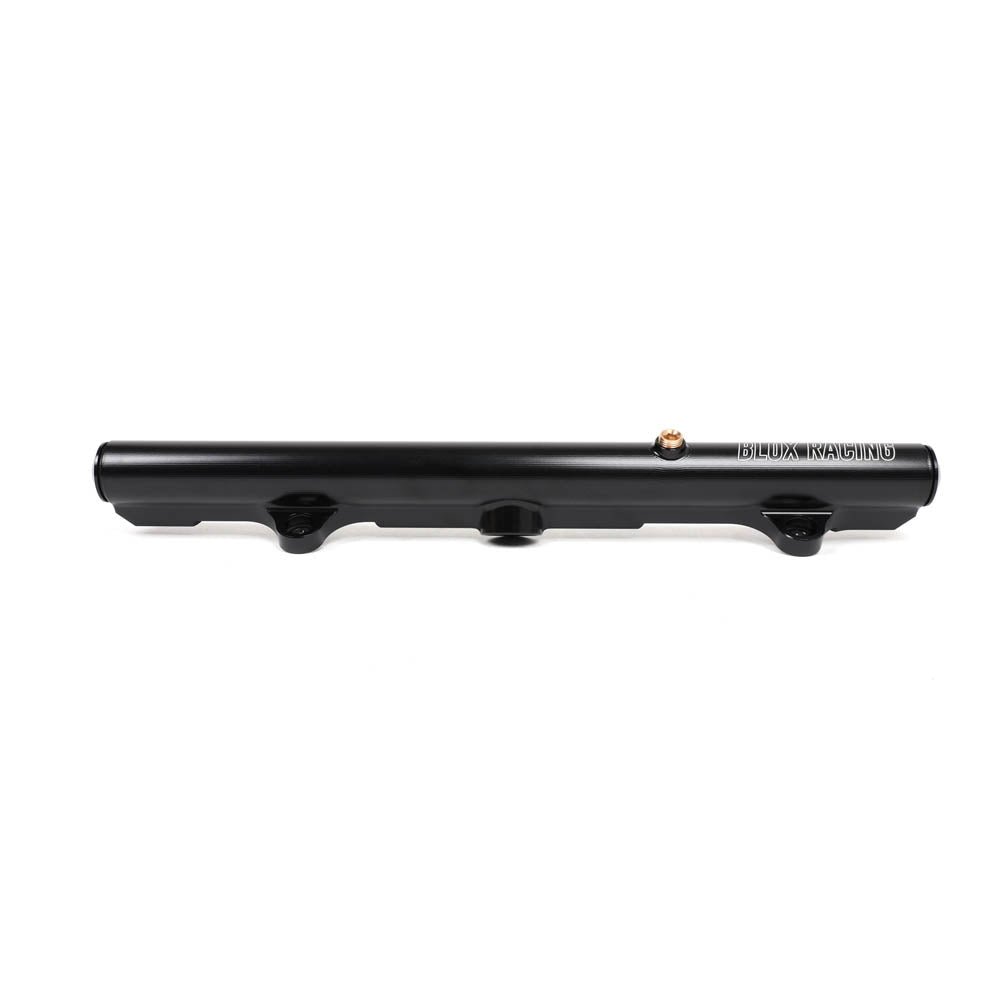

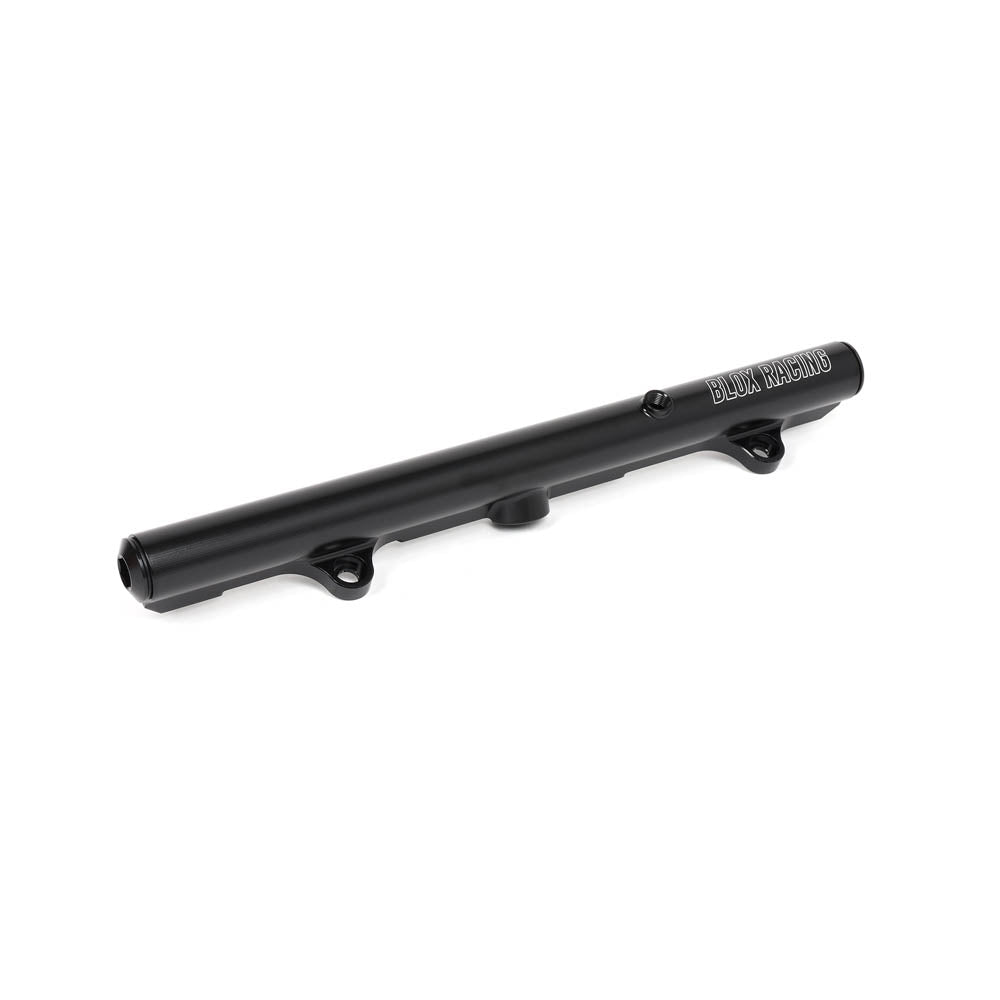

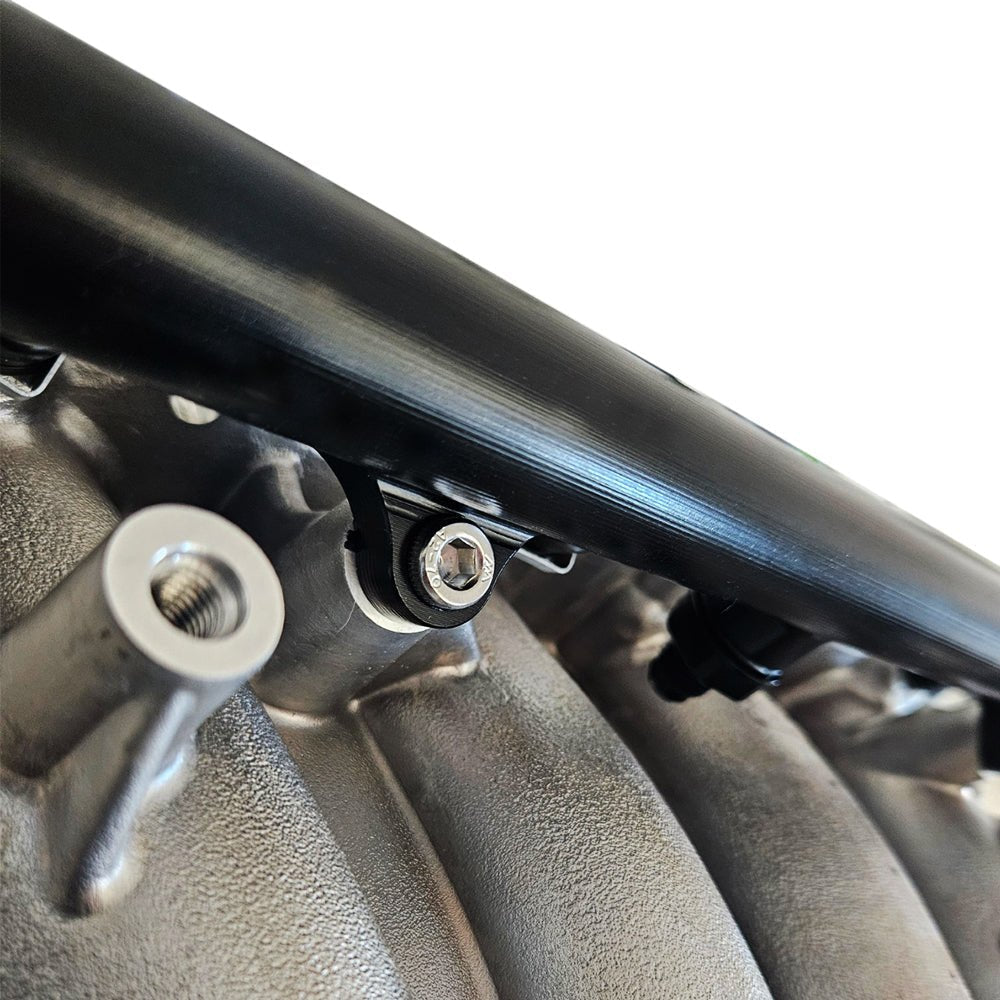

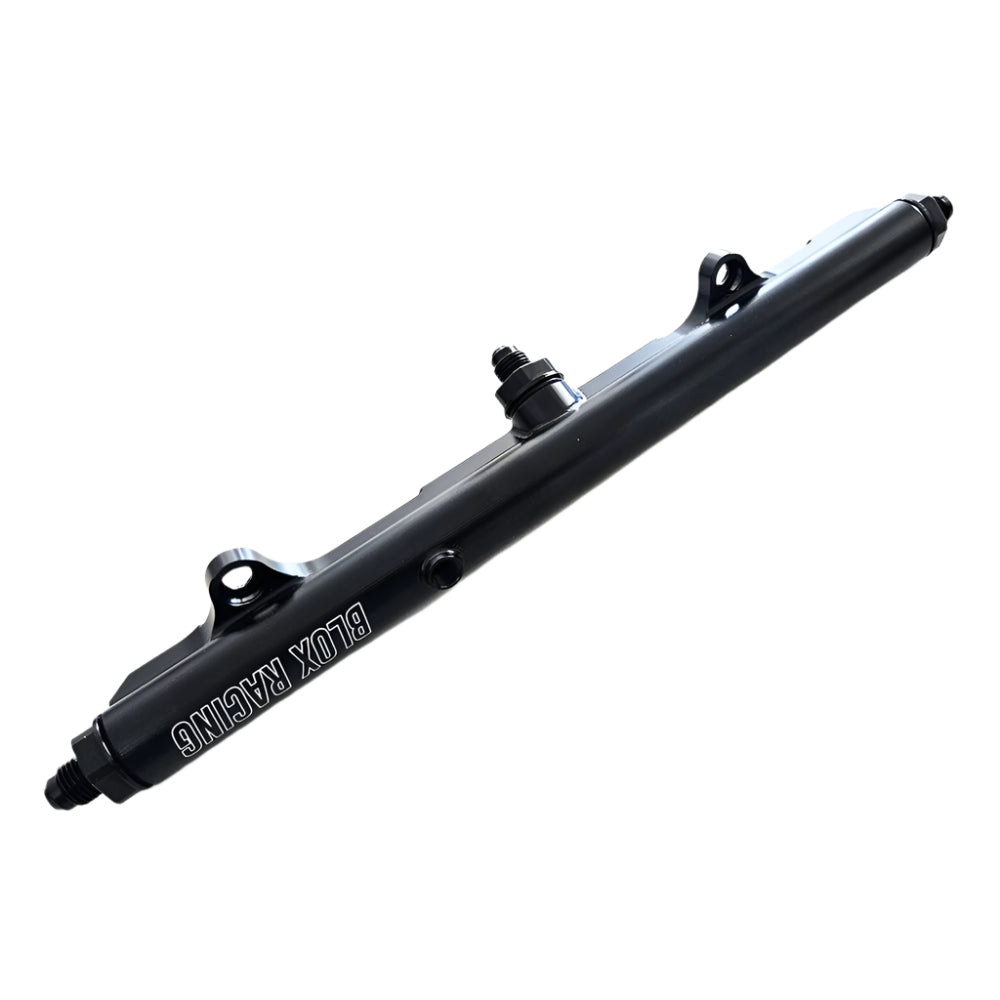

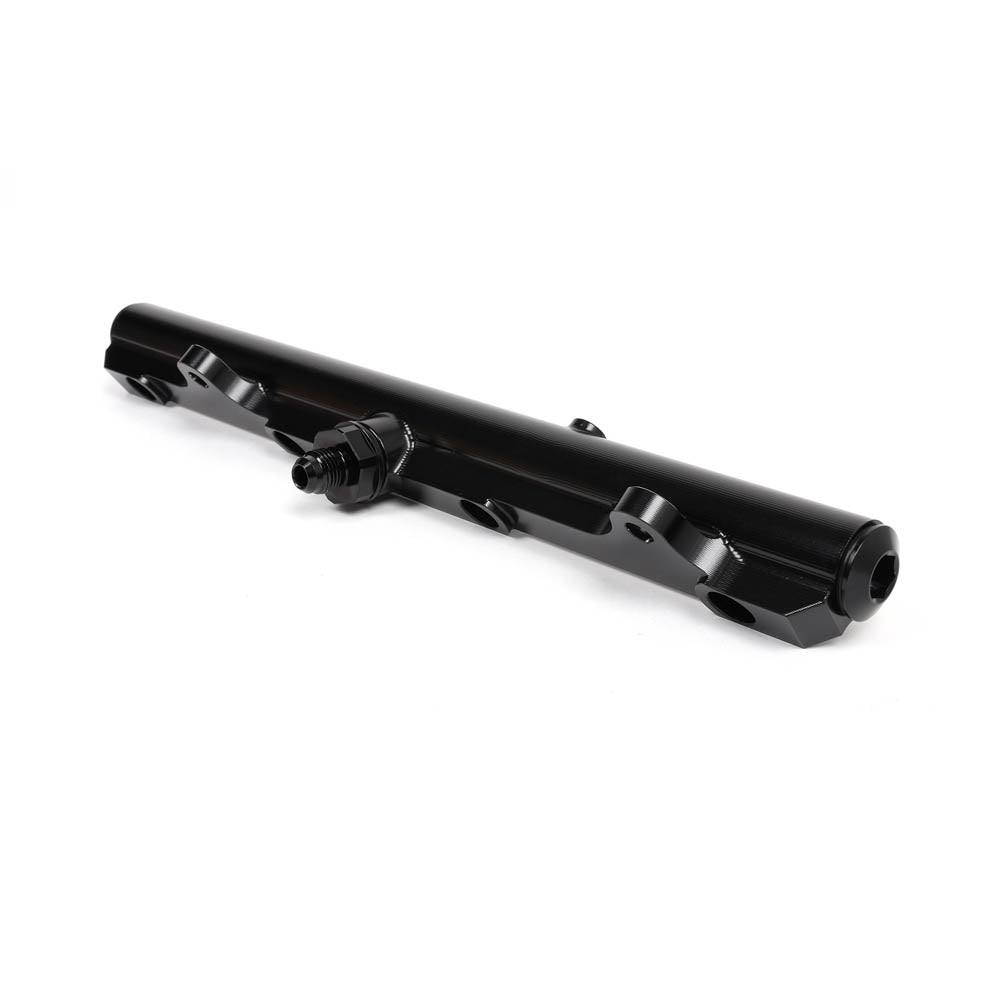

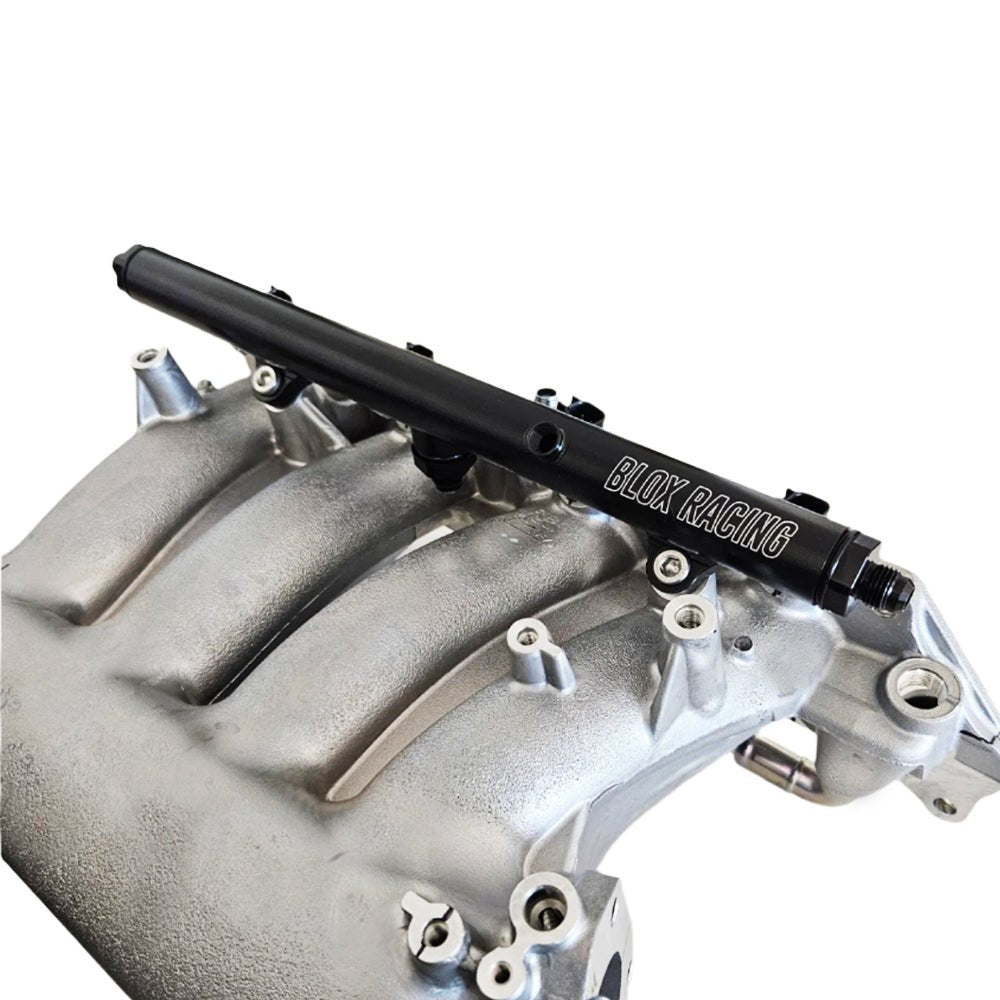

BLOX Racing XTREME Aluminum K-Series Fuel Rail

BLOX Racing is proud to introduce the Xtreme Aluminum Fuel Rail for your Honda K-Series Engine. Whether upgrading for additional fuel delivery needs, to run upgraded fuel lines, or to simply clean up your engine bay, our fuel rail makes sure those needs are met.

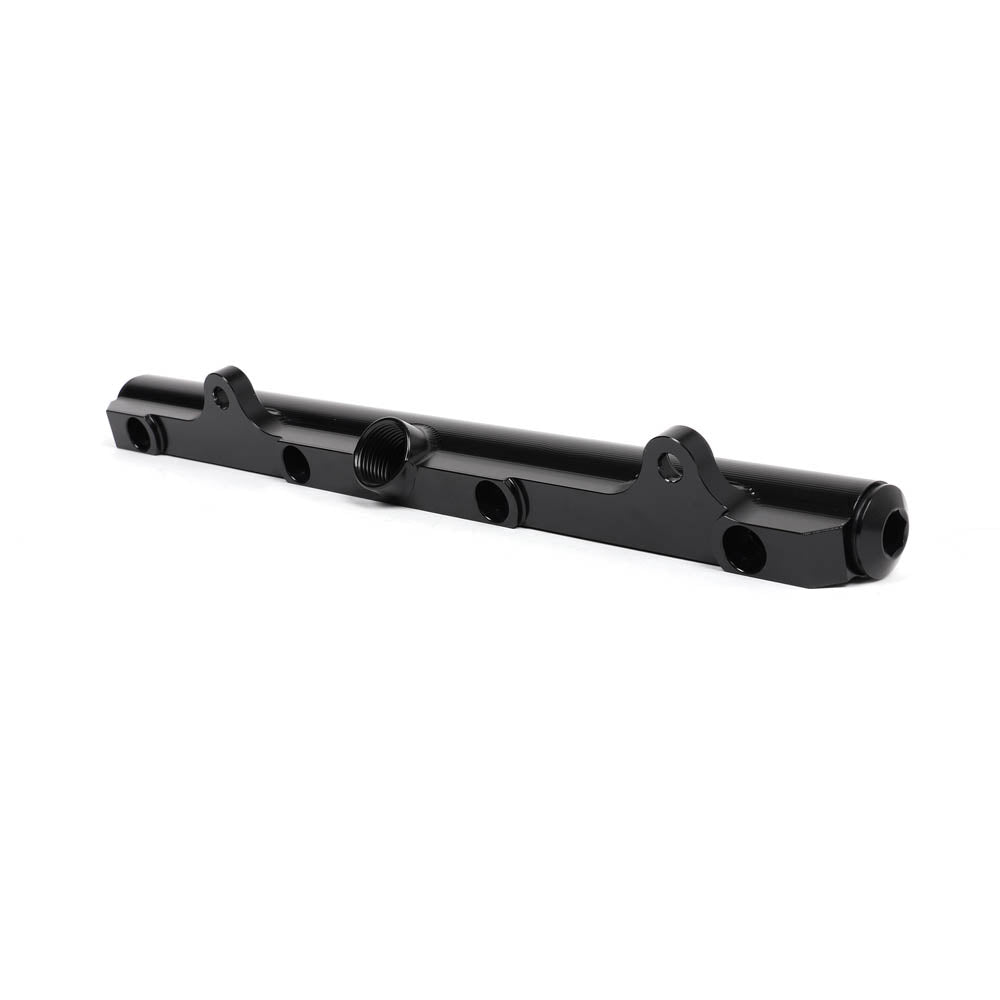

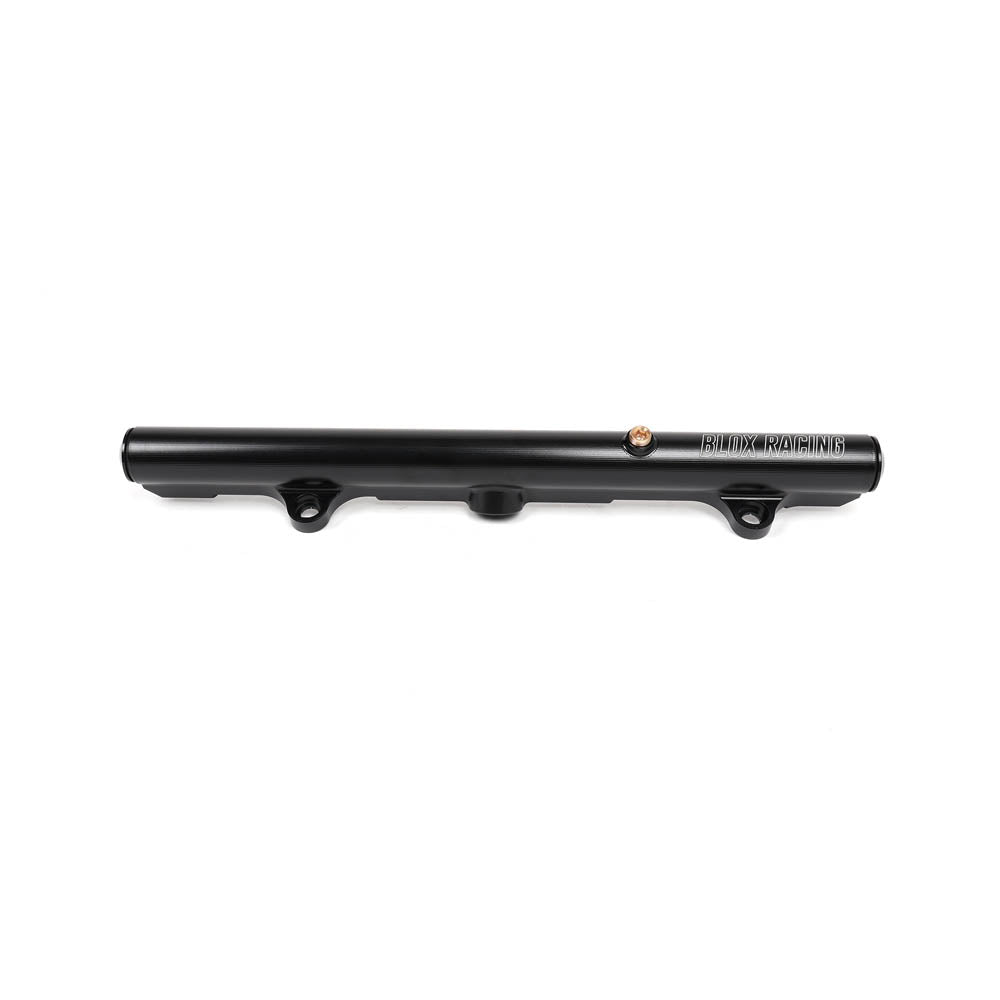

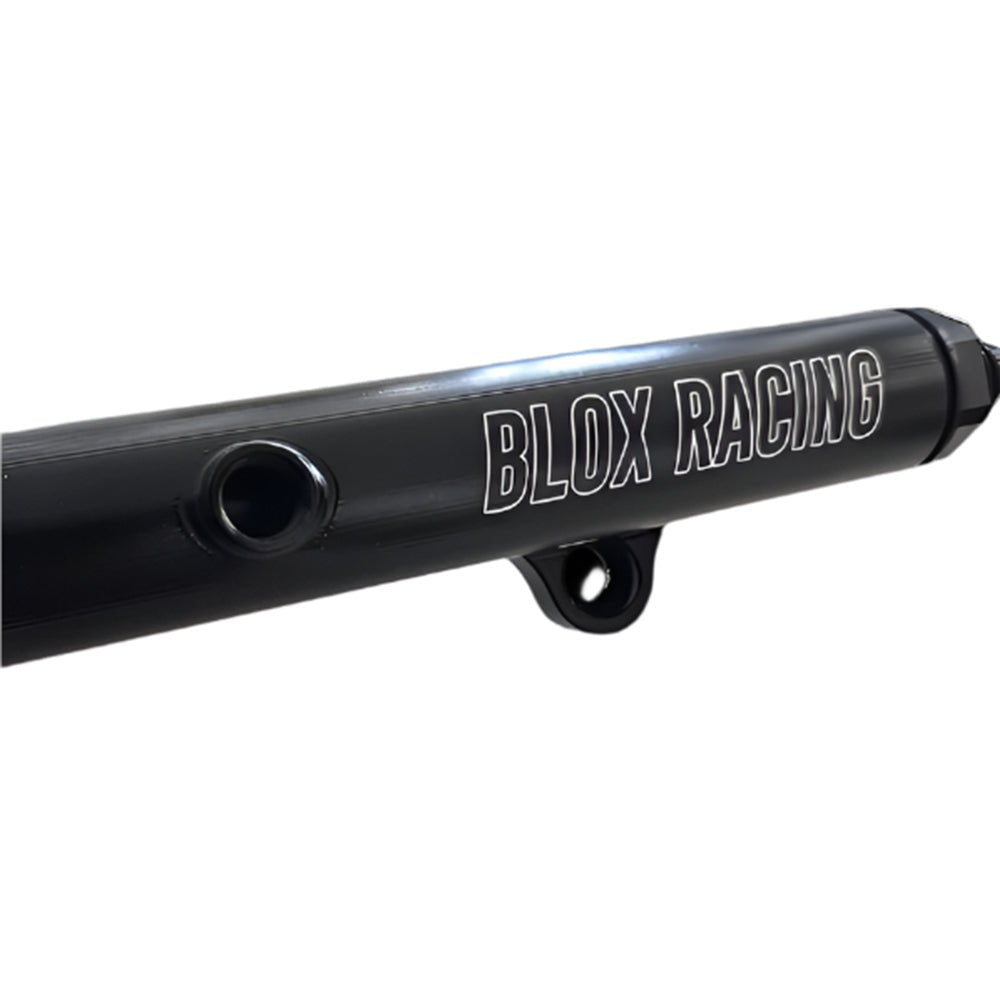

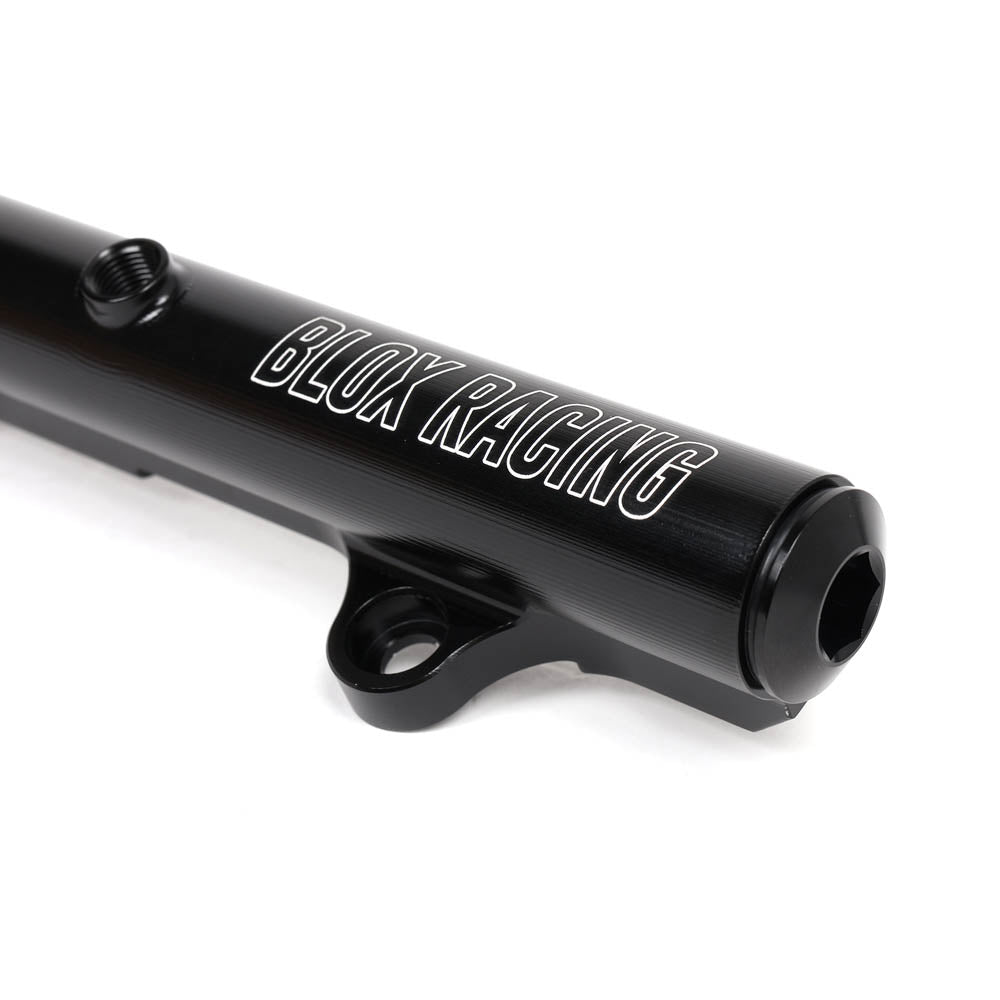

With it's 1/8 NPT port on top, -10 O-ring boss (ORB) ports on both ends and another -10 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car and easily mount a fuel pressure gauge directly on the rail.

Features

• XTREME 7/8" Bore for Feeding Over 1800hp

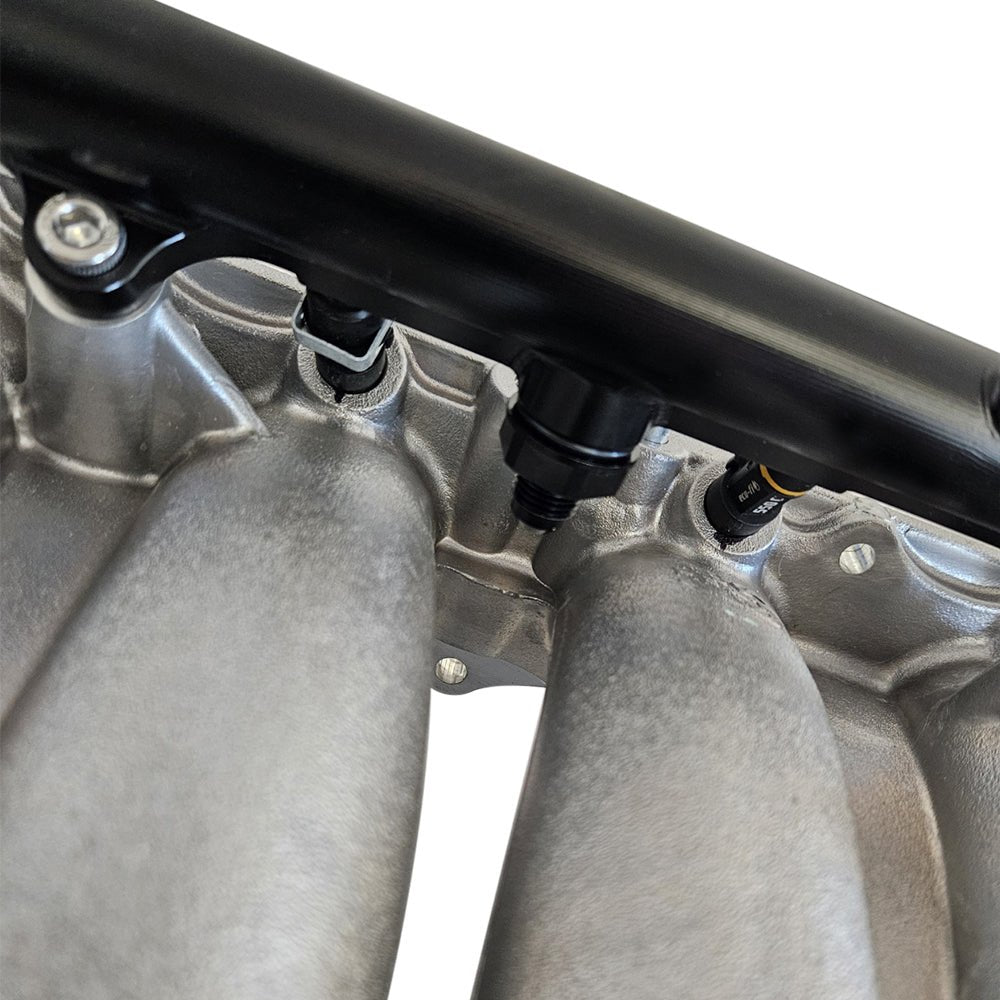

• -10 ORB Center-feed Port for Tucked Fuel Lines

• -10 ORB End Ports for OEM, Side-Feed, or Return Setups

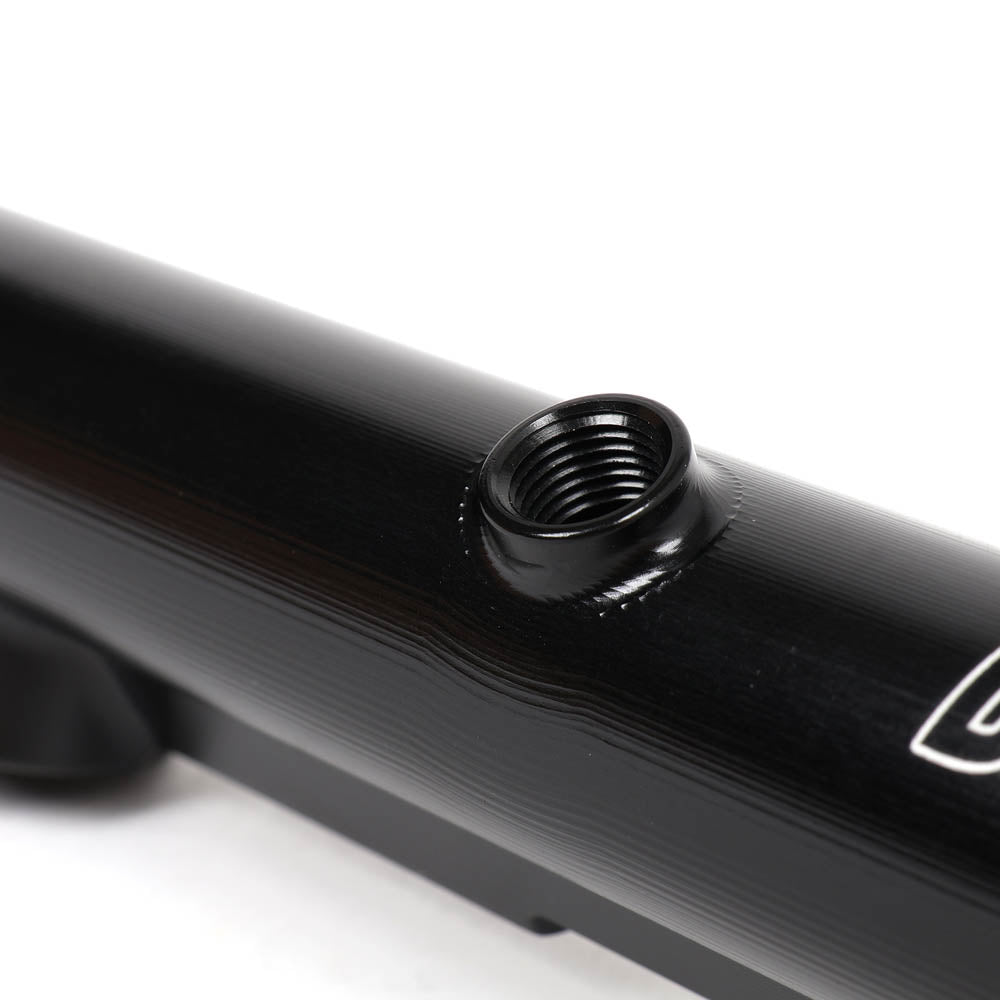

• 1/8 NPT Gauge Port
• Universal K-Series Engine Fuel Rail
• Crafted From Billet 6061-T6 Aluminum
• Allows for Tucked Fuel Lines
• Available in Anodized Black Finish

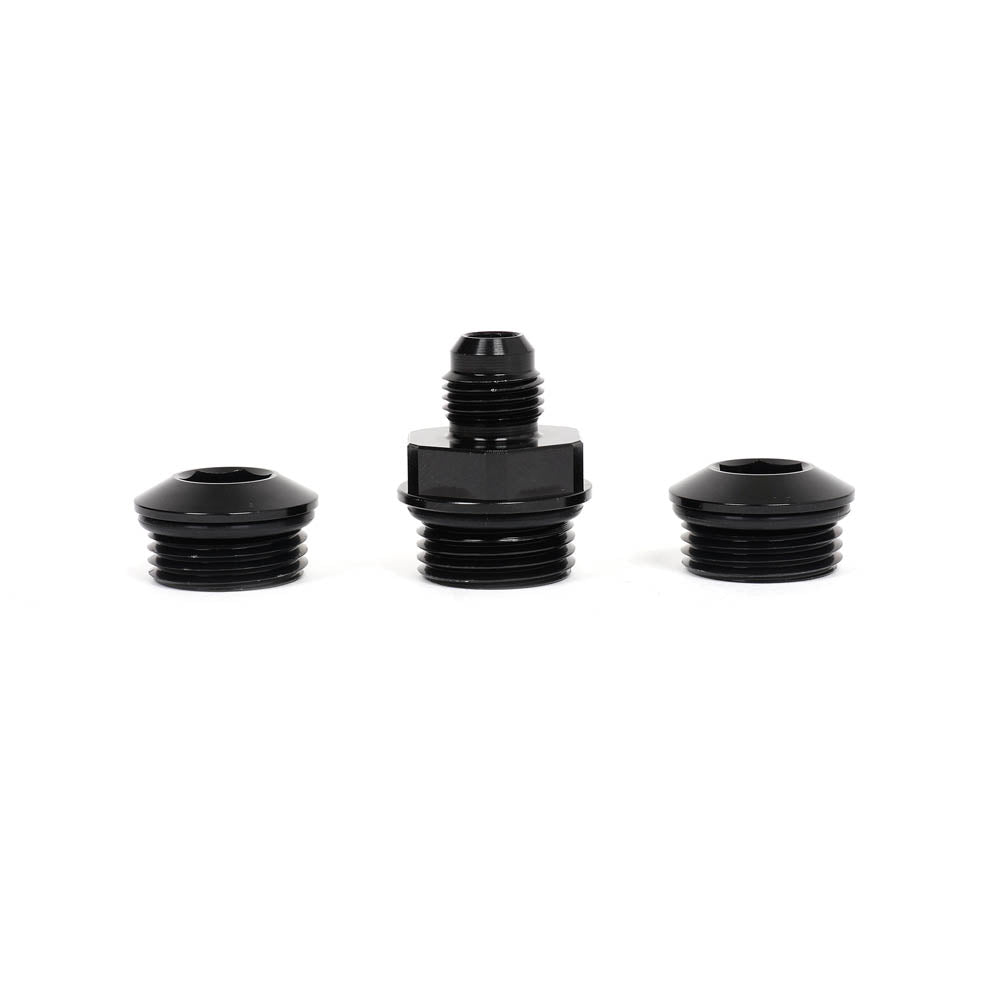

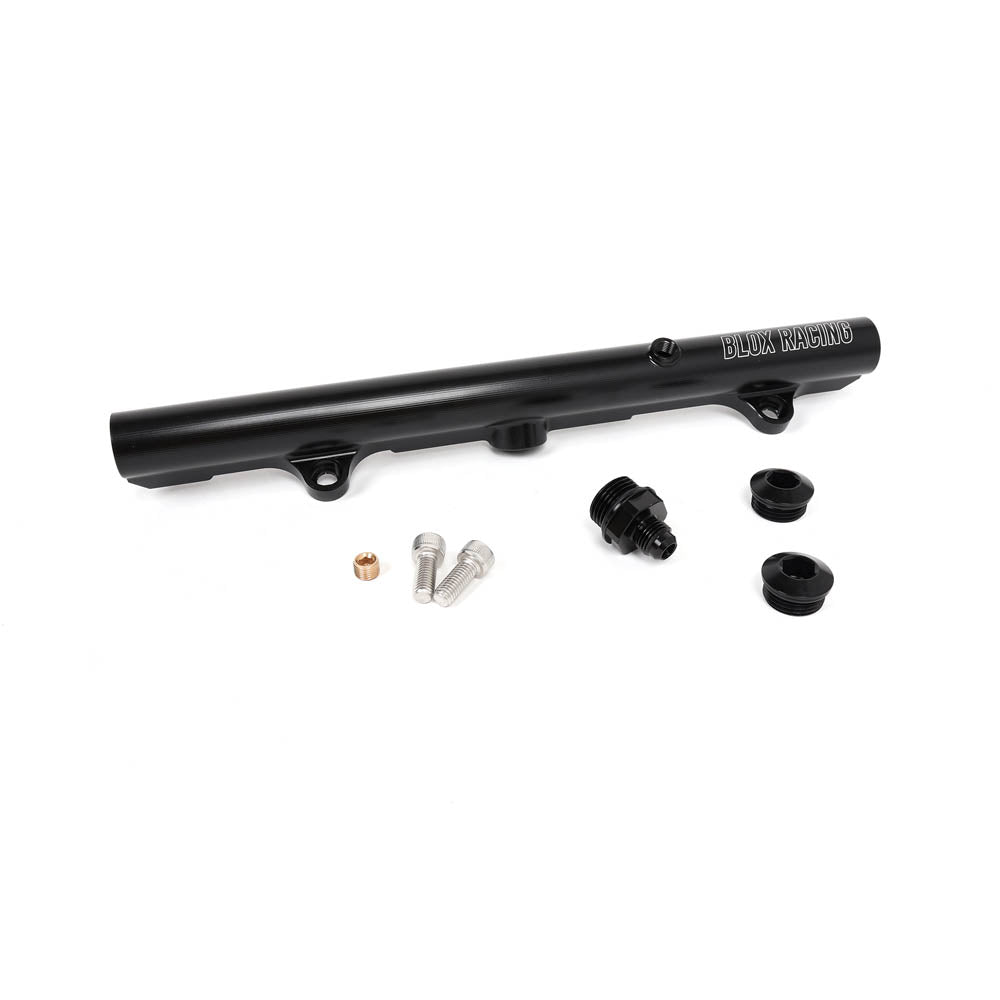

• Included Fittings
  • (2) Titanium Socket Head Cap Screw M8x1.0x20mm
  • (2) -10 ORB Plug

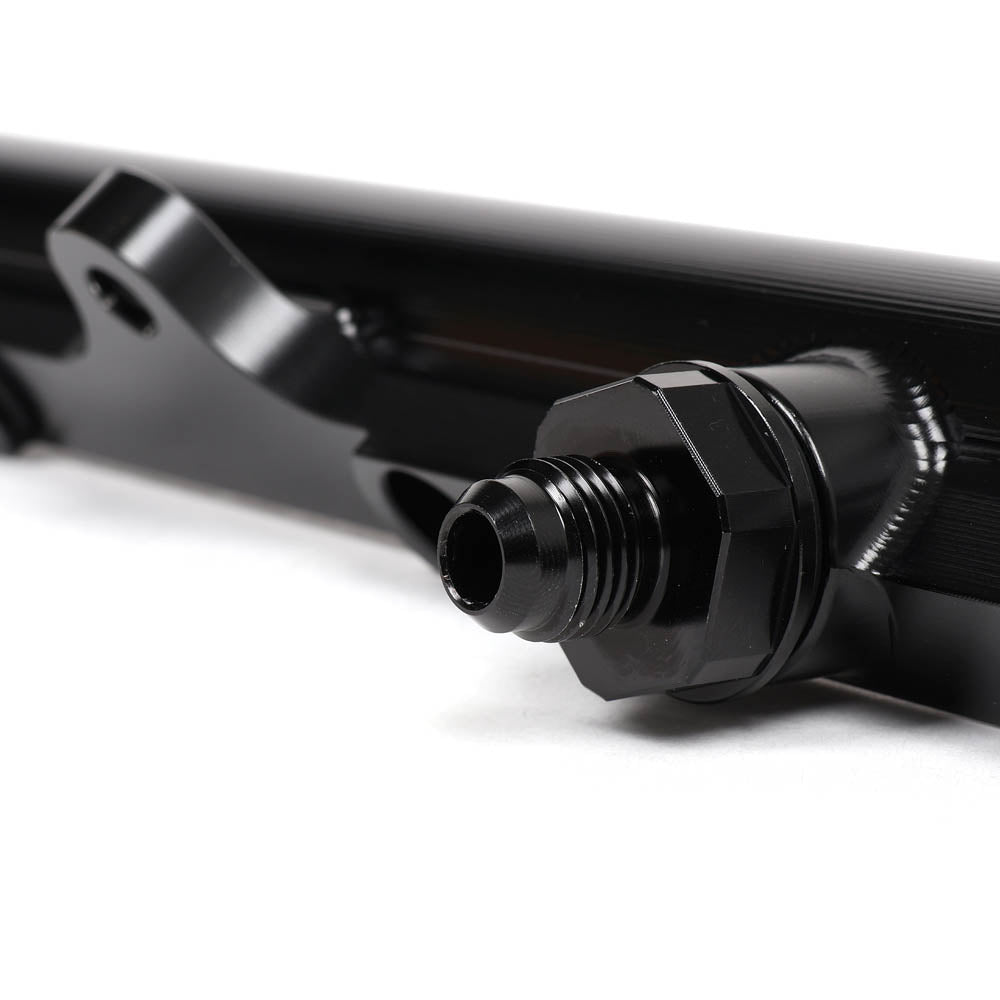

  • (1) -10 ORB to -6AN Adapter Fitting
  • (1) 1/8x27 NPT Pipe Plug

Applications

• K-Series
