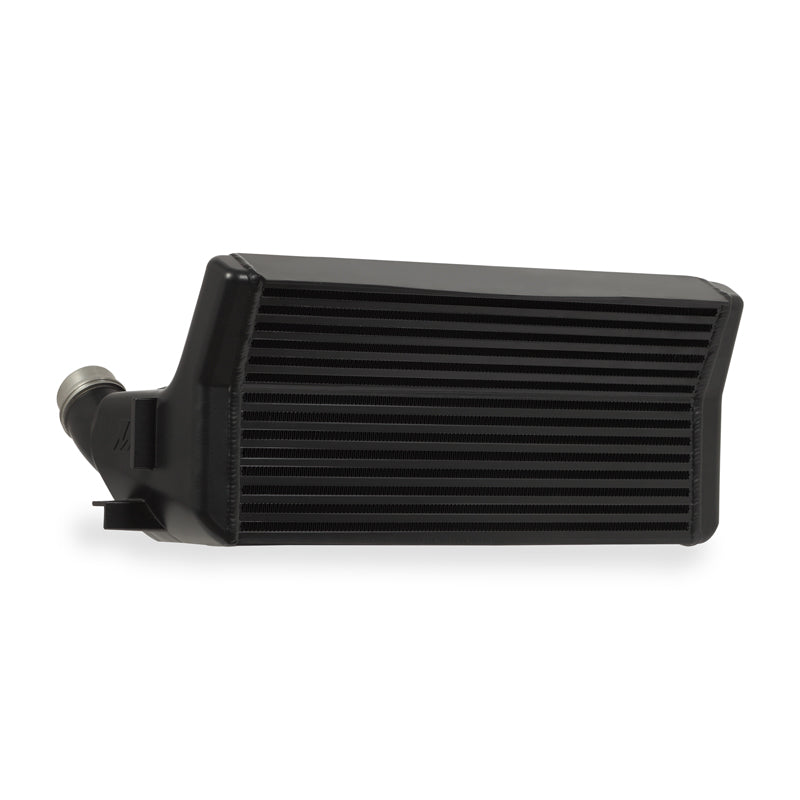

Mishimoto BMW F22/30 Chassis Performance Intercooler, 2012-2016 MMINT-F30-12BK

Make your Ultimate Driving Machine even more ultimate with the addition of the Mishimoto BMW 2012-2016 F22/F30 Chassis Performance Intercooler! From the factory, the N20/26 and N55 engines are a prowess of German engineering, but the stock intercooler unit poses as a weak link for your turbocharged Bimmer. The tube-and-fin design coupled with plastic end tanks makes for the perfect environment for heat to set up residence and throttle the power of your 2, 3, or 4-series, especially for those running a tune. Mishimoto is here to unlock the full potential of your N20/26 and N55 engines with our Performance Intercooler specifically designed for the F22/F30 chassis. Our unique 6? thick step-core design, adds a 115? angle to the top section to allow for additional charged air cooling without fully obstructing other heat exchangers. Tubes and fins are a thing of the past with this design as we engineered our intercooler with a bar-and-plate construction optimizing this intercooler for heat dissipation with minimal pressure drop. Coupled together, our features were able to drop intercooler outlet temperatures by 45?F, and add 10 whp and 8 wtq all on the stock tune of our 2017 M2 test vehicle. The BMW F22/F30 Performance Intercooler is available in Silver or Black and also includes the Mishimoto Lifetime Warranty.

• Direct fit for the 2012-2016 BMW F22/F30 Chassis
• Max power gains of 10 whp and 8 wtq on stock tuning
• Drops intercooler outlet temperature by 45 F on stock tuning
• 6in thick, angled step-core design optimized for maximum flow without fully obstructing other heat e
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580033414
• Brand Name: Mishimoto
• TechSpec Applications: 2014-2016 BMW 228i/228i xDrive--2014-2016 BMW M235i/M235i xDrive--2013-2016 BMW 320i/320i xDrive--2012-2016 BMW 328i/328i xDrive--2012-2016 BMW 328d/328d xDrive--2012-2016 BMW 335i/335i xDrive--2014-2016 BMW 428i/428i xDrive--2014-2016 BMW 435i/435i xDrive--2016+ BMW M2
• TechSpec Engine Codes: N20--N26--N47--N55
• TechSpec Chassis Codes: F22--F23--F30--F31--F32--F33--F34--F87
• TechSpec Maximum Recommended Boost Pressure (PSI): N/A
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Width (in): N/A
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): 6
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): 2
• TechSpec Outlet (in): 2
• TechSpec Weight (lbs): 28
• TechSpec Note: M2 owners will need to either remove or modify the front core support brace for installation. Please refer to the installation guide for proper modification instructions.
• TechSpec Includes: (1) Performance Intercooler--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2012-2016 BMW F22/F30 Chassis
• SellingPoint02: Patent Pending
• SellingPoint03: 6-in thick, angled step-core design optimized for maximum flow without fully obstructing other heat exchangers
• SellingPoint04: Max power gains of 10 whp and 8 wtq on stock tuning
• SellingPoint05: Drops intercooler outlet temperature by 45F on stock tuning
• SellingPoint06: Optimal core design for maximum cooling efficiency with minimal pressure drop
• SellingPoint07: Intercooler core volume increased my 96-percent
• SellingPoint08: External fin surface area increased by 130-percent
• SellingPoint09: Retains factory quick-disconnect fittings for compatibility with stock piping
• SellingPoint10: Available in silver or black
• SellingPoint11: Patent numberD931,337
• SellingPoint12: Mishimoto Lifetime Warranty
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 35 x 18 x 13 inches
• Weight: 34 lb
