Bolt-on Rear Spring Over 2.5 Bump Stop Mount Kit

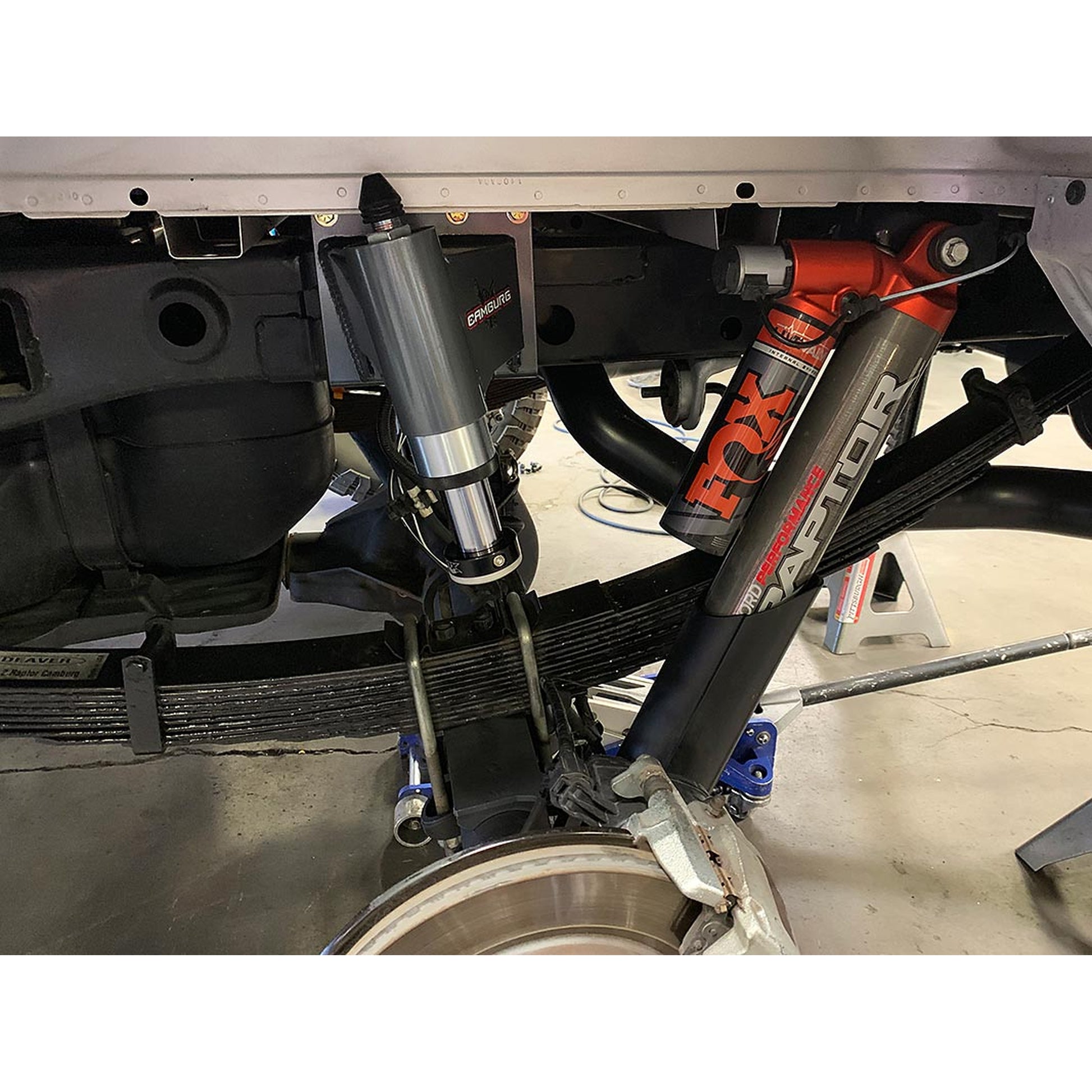

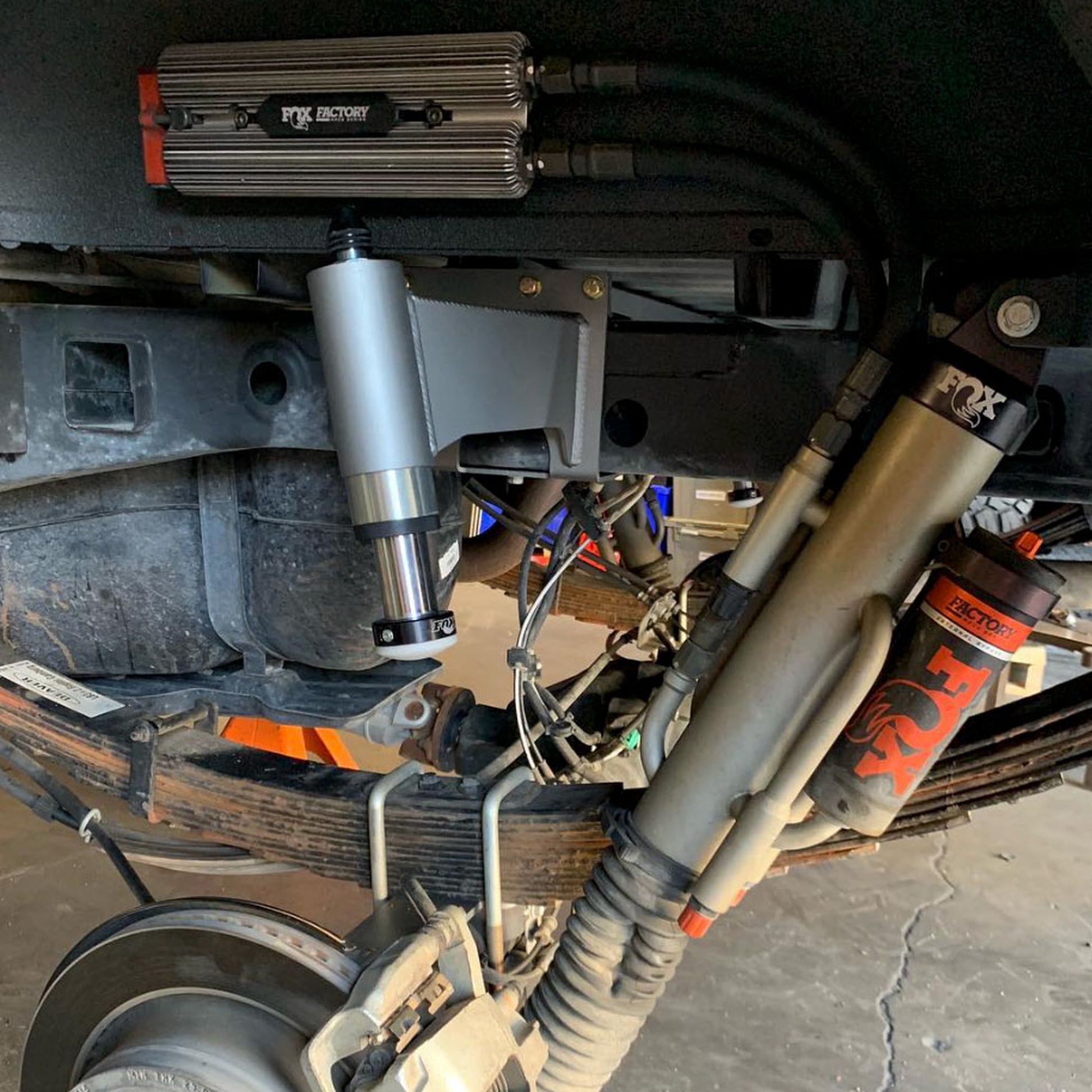

Our Camburg bump stop mounts bolt onto the rear of your 2017-2020 Ford Raptor with ease. These are designed to use FOX or King 2.5 x 2.5 hydraulic bump stops with Deaver spring-over leaf springs or the equivalent. They provide additional bottom out control to maximize the vehicles entire suspension travel. We also incorporate a bolt-on frame x-member to add torsional strength. They are MIG welded, powdercoated a textured gray to match our billet arms and the FOX shock hard anodize. They include all the necessary Grade 8 hardware. These bolt into existing holes in the frame, so their is no guess work on placement or drilling needed. We also supply a thick bump pad that gets installed under the leaf spring and gives the bump stop a flat surface to hit and has attachment points for the wheel speed sensor wires to keep them out of the way and secure. The CAD drawing shows an optional billet aluminum x-member that will be available in the near future. Designed to use FOX #980-02-801, 981-25-040 and King #BS2525 bump stops only.
