BOOST Products Billet Oil Filter Sandwich Plate Adapter w/ Thermostat, black anodized

BOOST Products Billet Oil Filter Sandwich Plate Adapter w/ Thermostat, black anodized

BOOST Products USA

Part #
OF-M22-BM
UPC #
4250815852615

Black Friday Sale On All November Long! No Code Needed!

Regular price $200.19 USD
Regular price $200.19 USD Sale price $200.19 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

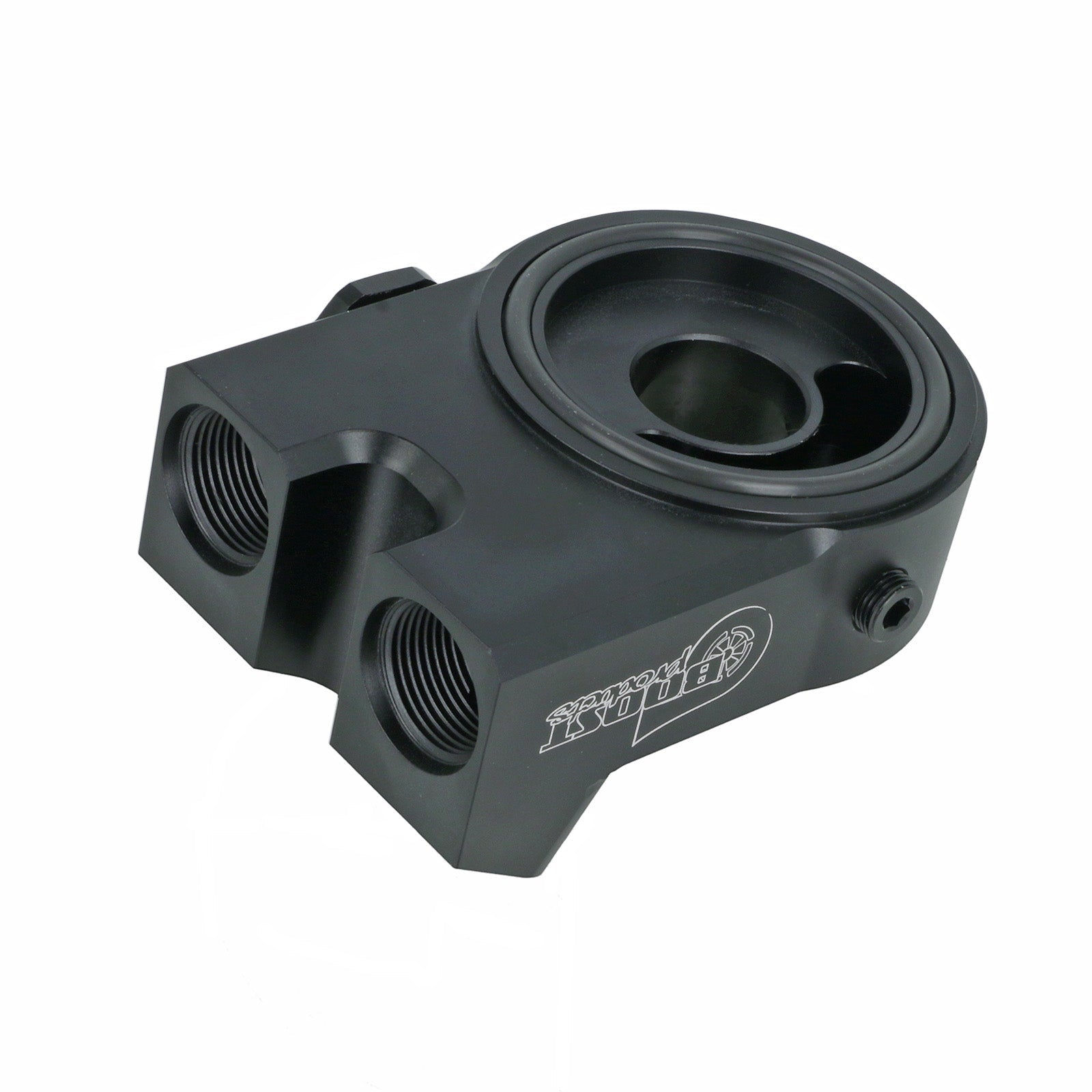

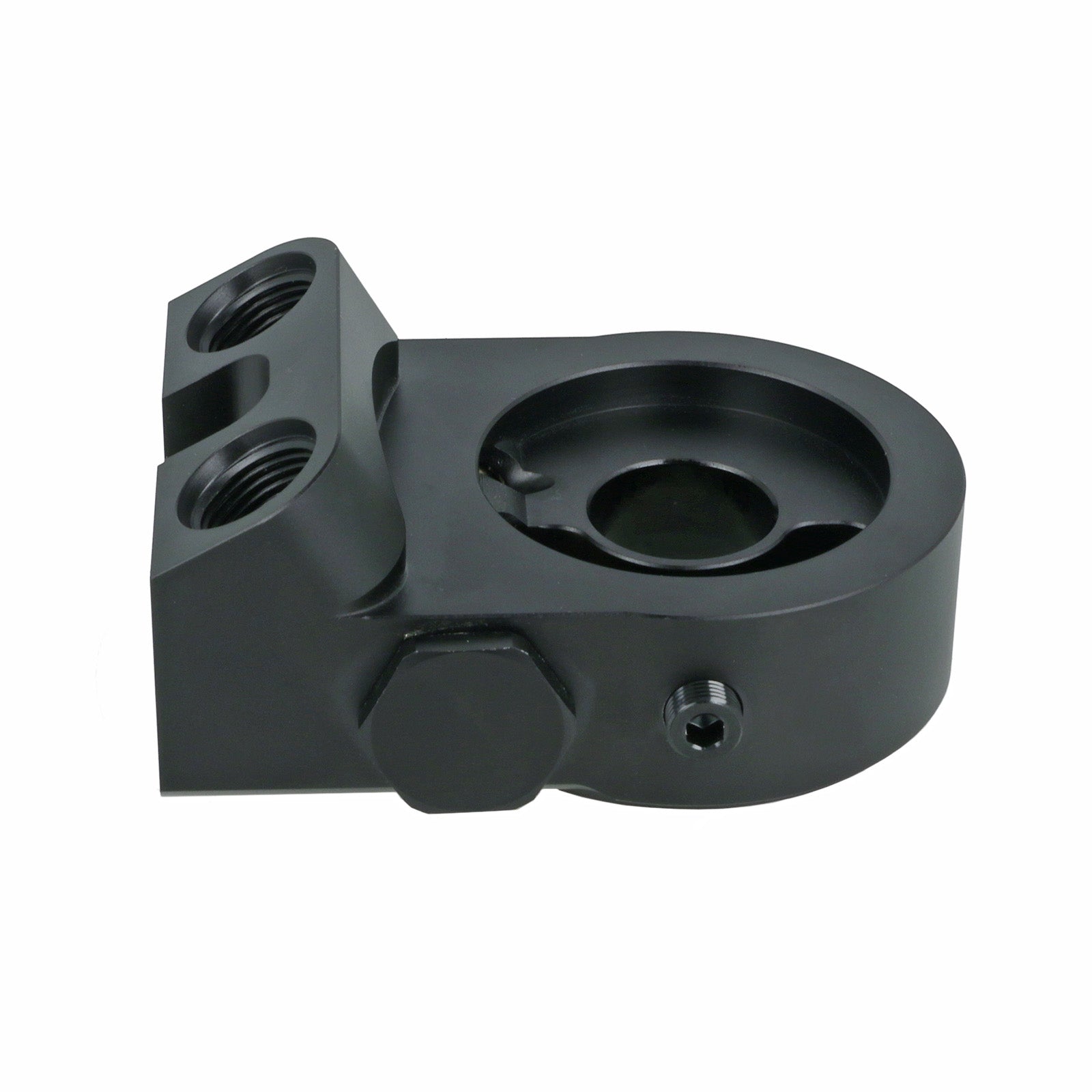

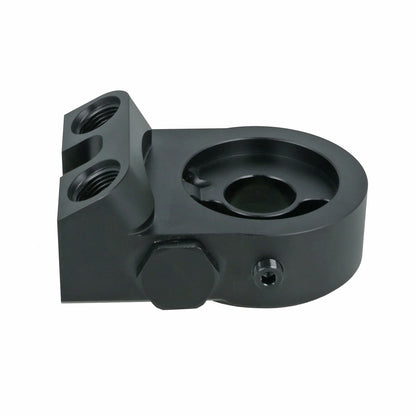

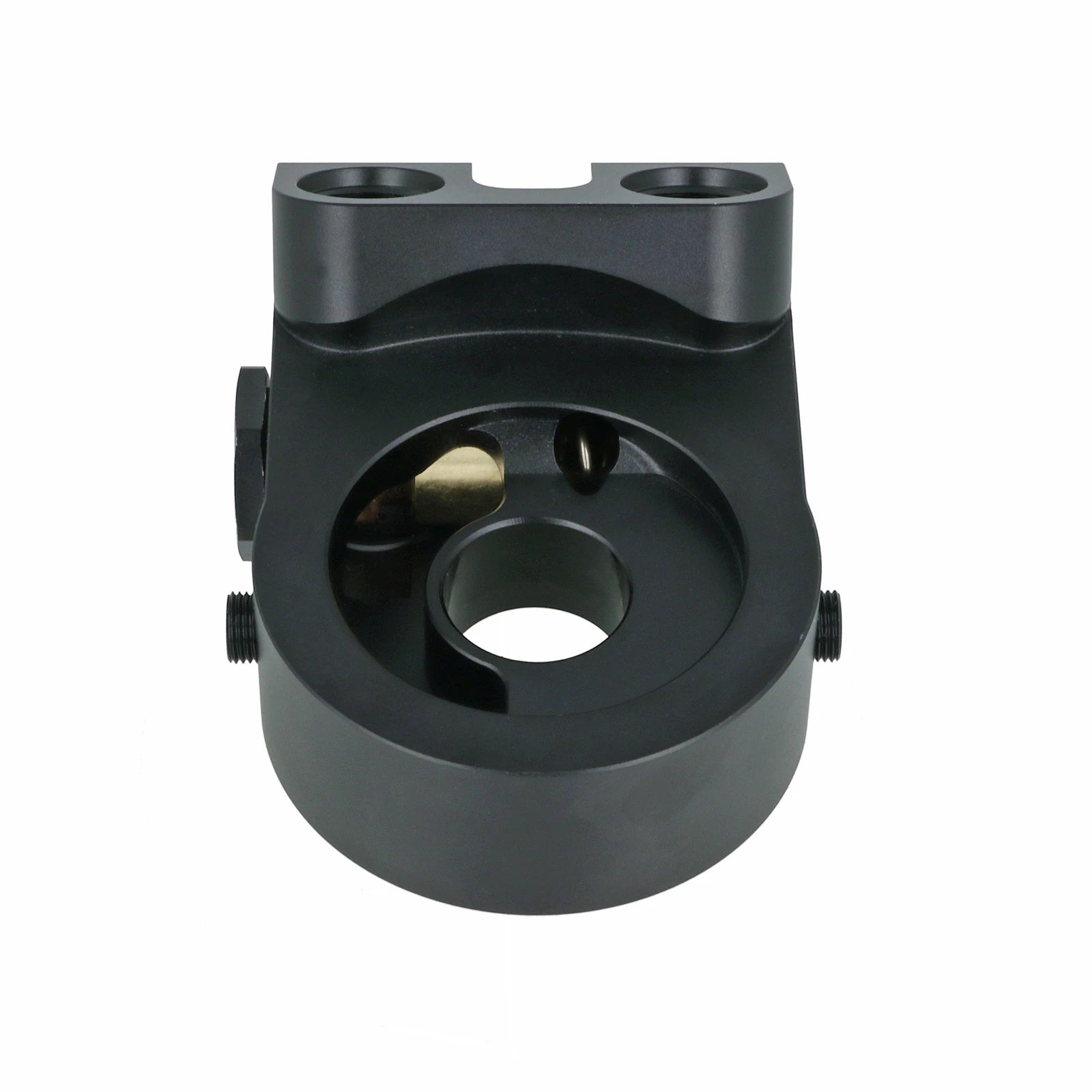

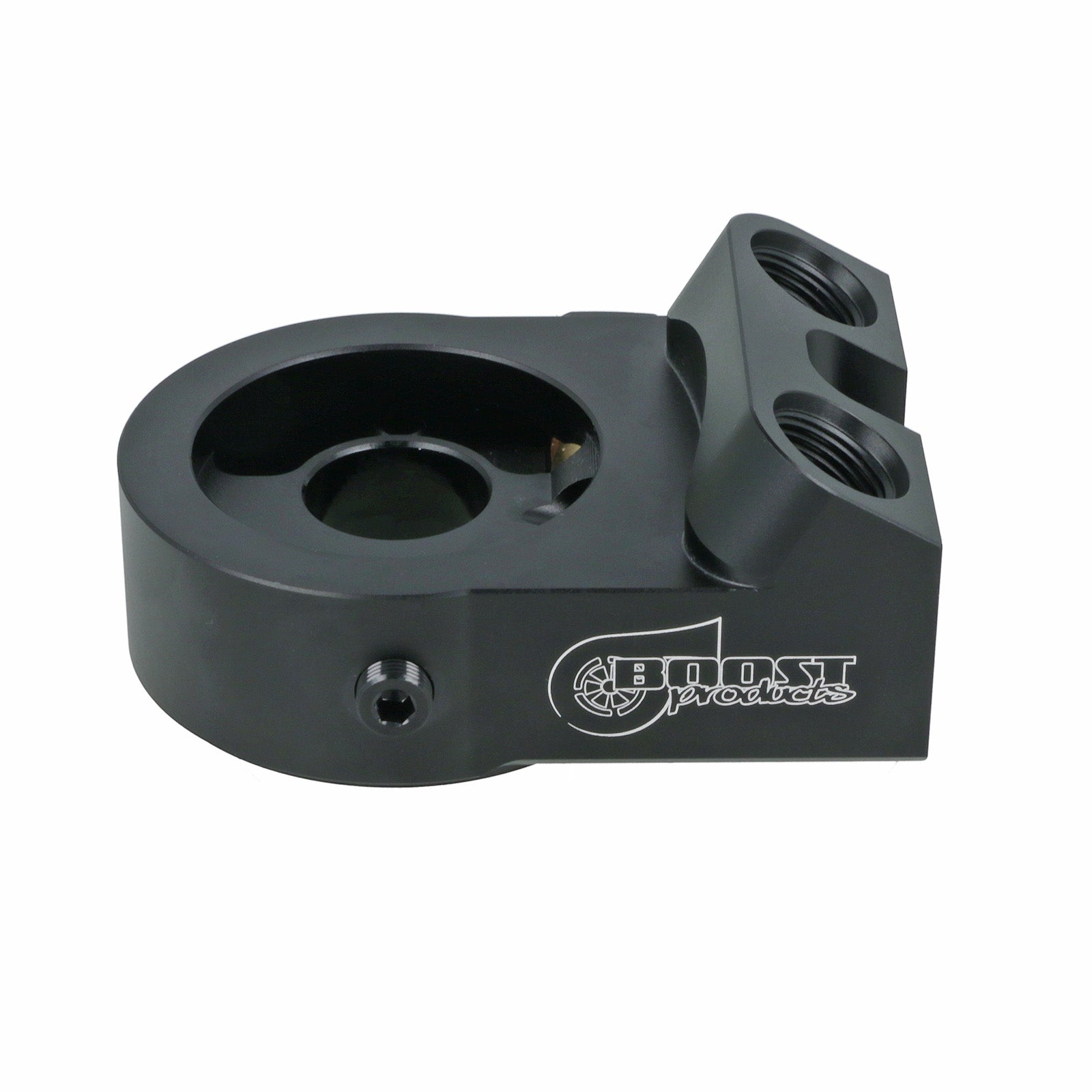

Billet Oil Filter Sandwich Plate Adapter with Thermostat, M22x1.5 Ports, Black

Universal billet aluminum oil filter sandwich plate with an integrated 82°C (180°F) thermostat for connecting an oil cooler. It has two compactly arranged, generously sized M22x1.5 ports and two additional -08 AN ORB ports at a 45° angle. If space is tight, you can swap the oil line connections and connect the oil cooler to the angled ports.

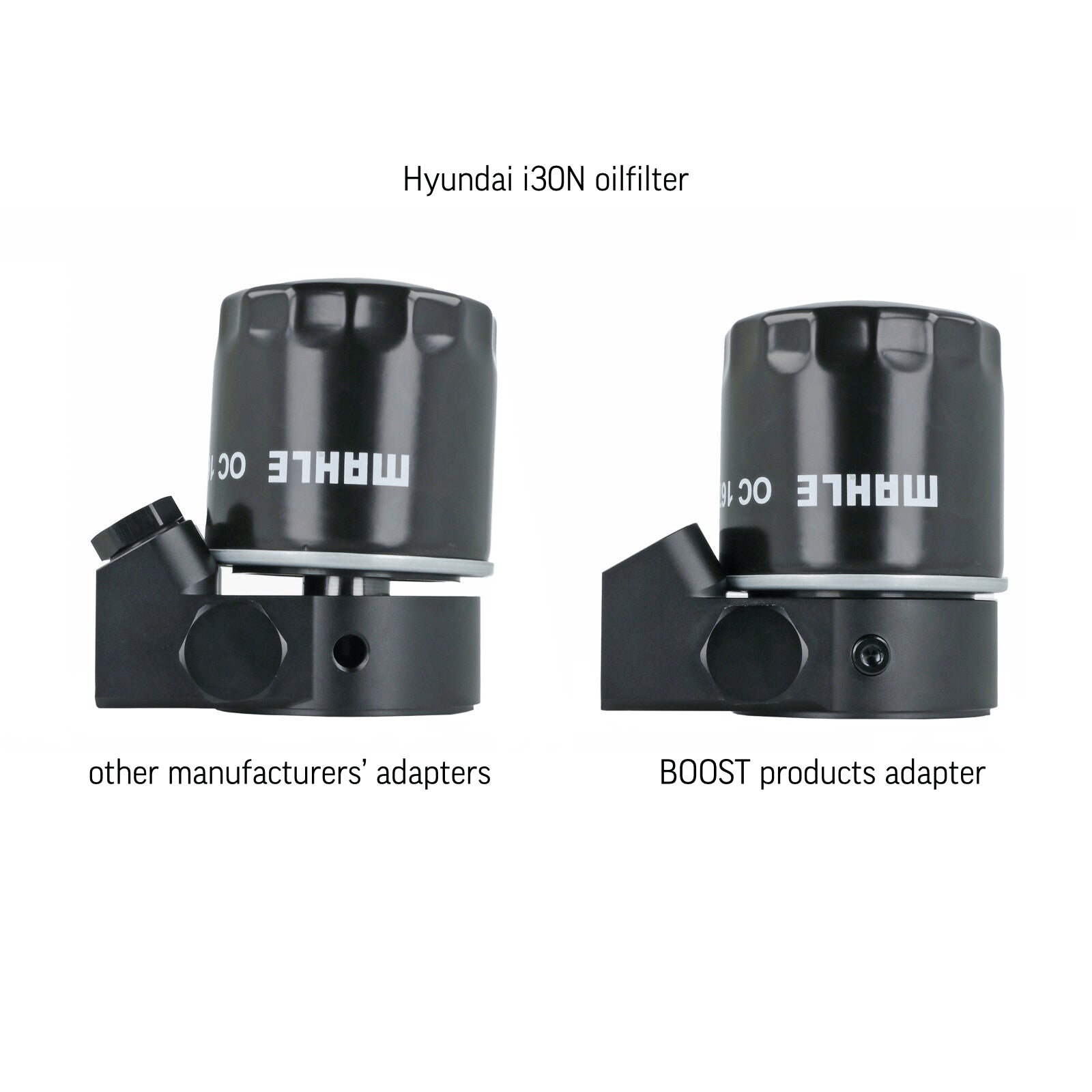

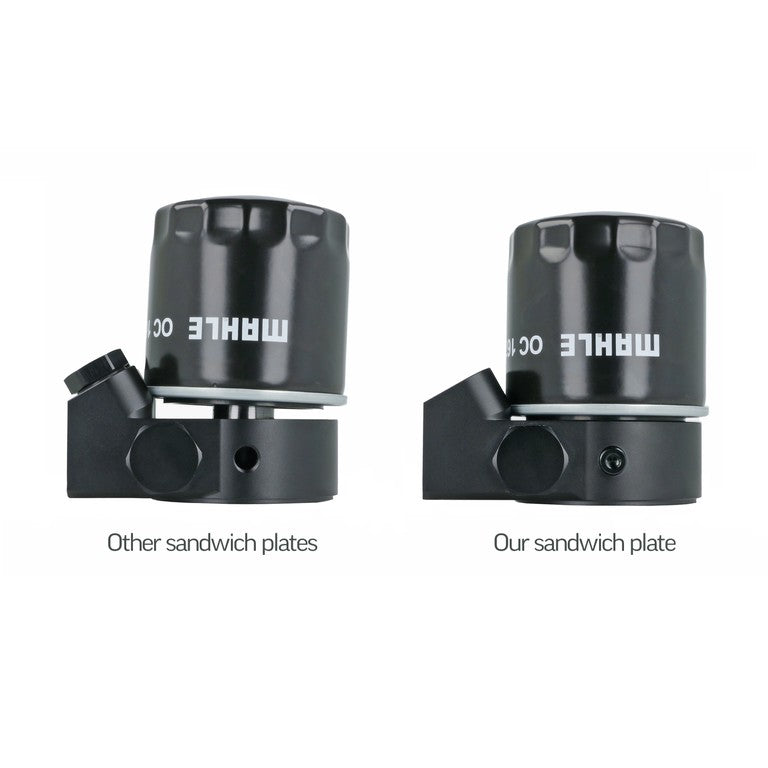

Unlike other oil filter adapter plates, this plate has a 1/8" NPT internal thread on each side. That allows a space saving and flexible installation of up to two sensors, for example for oil temperature and oil pressure.

When the thermostat is closed, only 1% of the oil volume circulates through the oil cooler. At the opening temperature it opens up to 100%. Sandwich plates from other manufacturers let one third of the oil flow through the cooler even when the thermostat is closed. In cold weather the oil may then never reach its operating temperature.

Key Features

  • Thermostat opening temperature: 82°C (180°F)
  • 2x M22x1.5 female ports
  • 2x -08 AN ORB female ports at a 45° angle
  • 2x 1/8" NPT female ports for sensors, one on each side
  • Only 1% oil flow through the cooler when the thermostat is closed
  • Material: billet aluminum, black anodized
  • All 1/8" NPT connections must be sealed with PTFE sealing tape

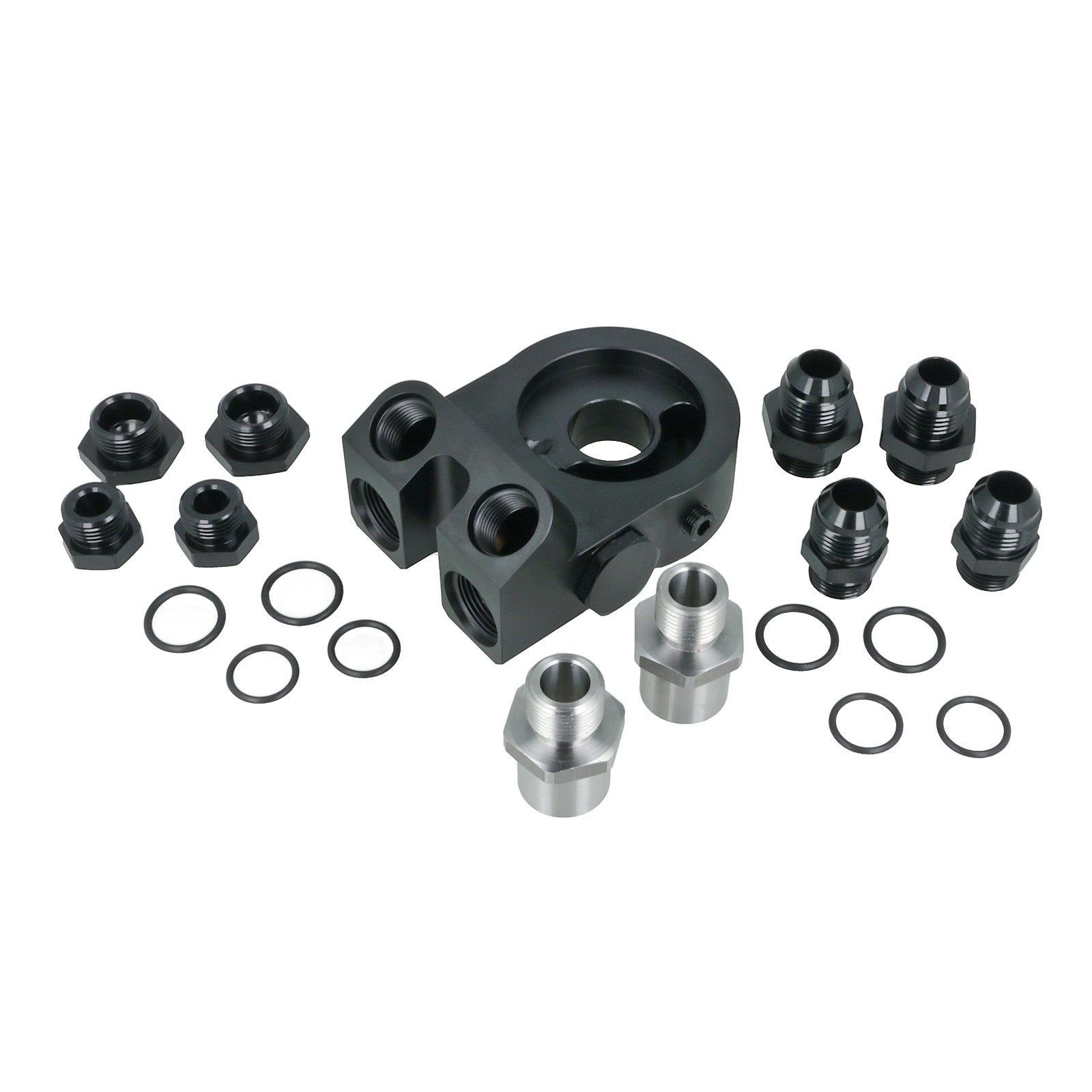

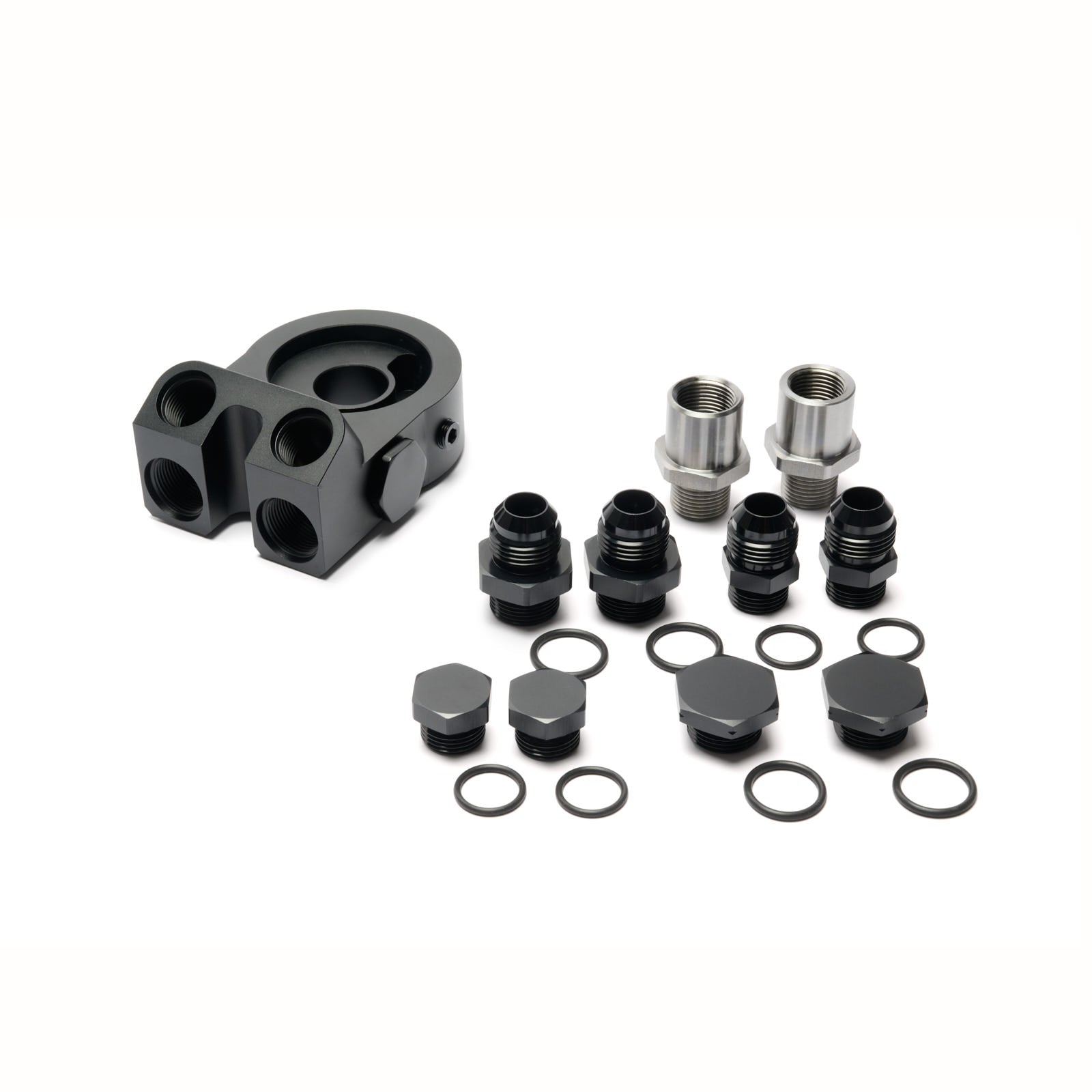

Scope of Delivery

  • 1 oil filter sandwich adapter plate
  • 2 M22x1.5mm ORB male to -10 AN male adapter
  • 2 -08 AN ORB male to -10 AN male adapter
  • 2 -08 AN ORB male plug
  • 2 M22x1.5mm ORB male plug
  • 2 1/8" NPT male plug
  • 1 M20x1.5mm extension screw for connecting the OEM oil filter
  • 1 3/4-16 UNF extension screw for connecting the OEM oil filter

Frequently Asked Questions

Why does the closed thermostat matter?

With only 1% flow through the cooler while the thermostat is closed, the oil warms up quickly. Plates that let one third of the oil through the cooler can keep the oil from reaching its operating temperature in cold weather.

Which oil filter threads are covered?

Two extension screws for the OEM oil filter are included: M20x1.5 and 3/4-16 UNF.

Do I need thread sealant?

On an NPT thread, yes. Use a sealant that is compatible with your fluid and keep it off the first thread so nothing ends up inside the line. On an AN flare, no. The flare seals dry, and sealant can keep it from seating.
