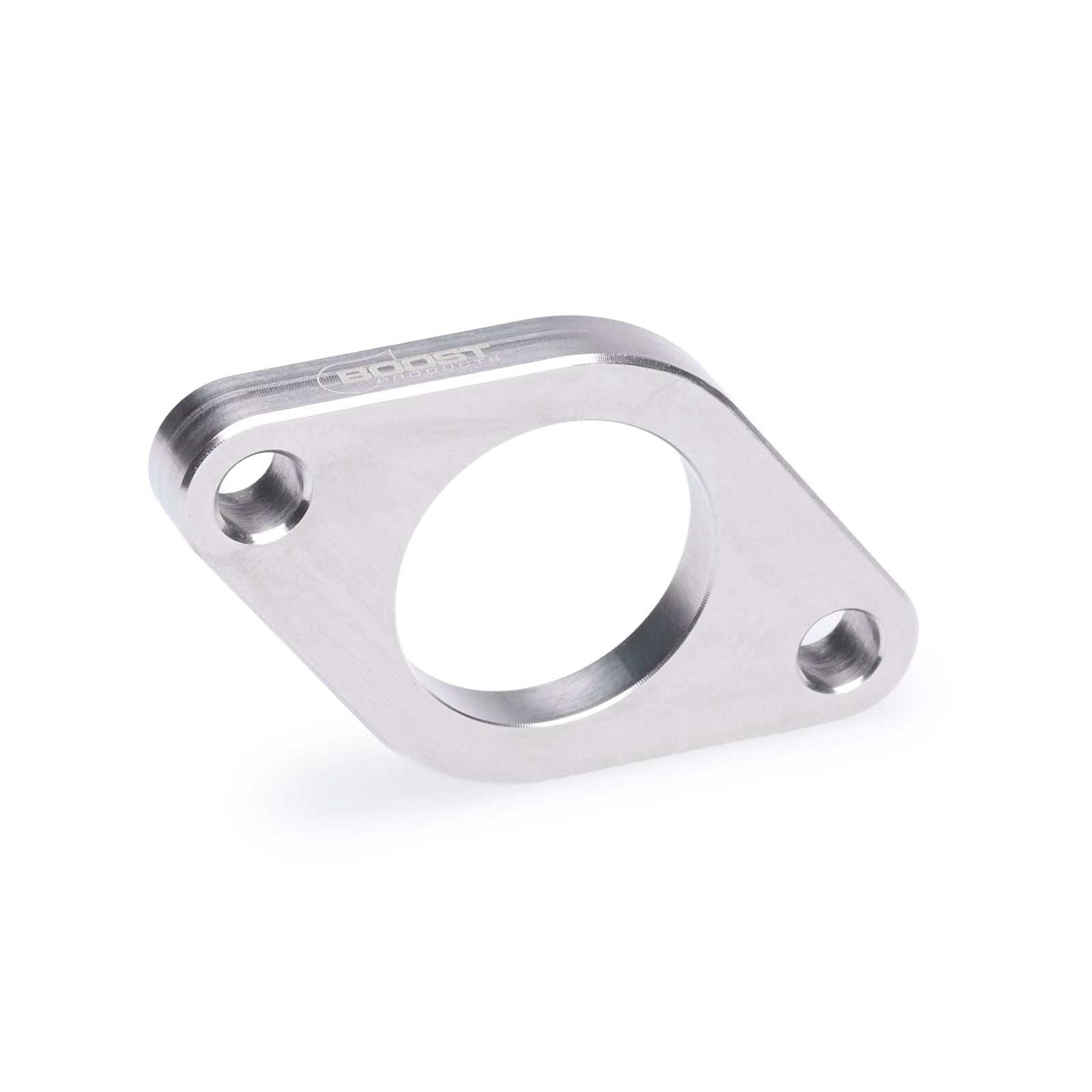

TiAL Flange F38 Outlet Stainless

Flange for the TiAL F38 / 38mm Wastegate

Stainless steel flange for wastegate outlet without thread

Premium mild steel flange for the TiAL F38 Wastegate. This flange features plain holes instead of threaded holes making it suitable for outlet connecting the wastegate to the downpipe. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.

Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 89mm x 50mm
Dimensions cut-out: 35mm (inner diameter of a 38mm pipe)
Hole distance: 71mm (diagonal)
Thread: for M8
Extras / Features: No threads! 8mm holes!
For / Fits:
Outlet TiAL F38 or other 38/40mm 2-bolt outlet flange Wastegates
Outlet Synapse Synchronic 40mm Wastegate (WG001)
