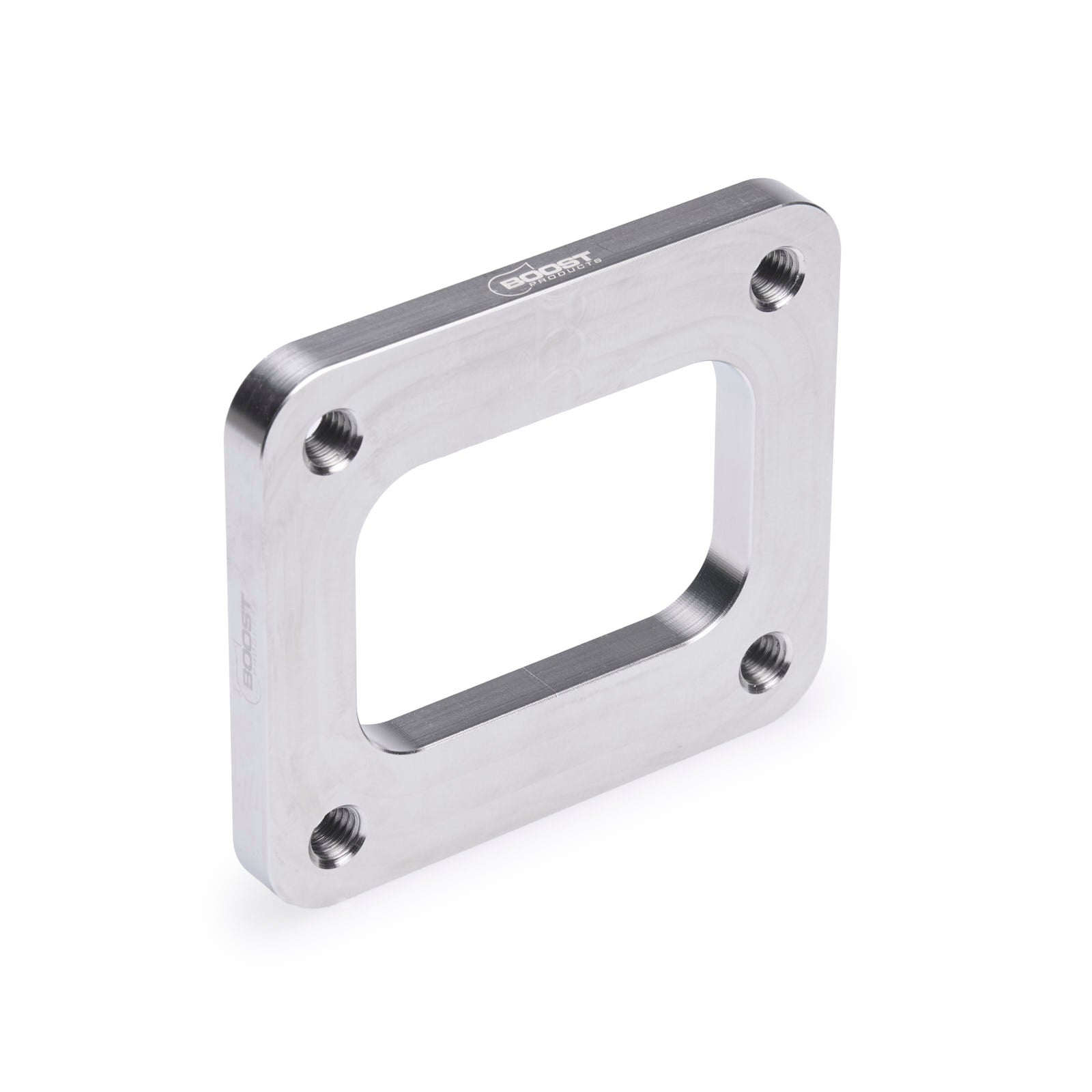

Exhaust Turbo Manifold Flange T4 / GT4X Singlescroll

Turbo flange for exhaust turbo manifold construction

Premium stainless steel turbo flange with threads

BOOST products high quality stainless steel CNC mashined flanges for turbo manifolds, downpipes flanges and others. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.

Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 114mm x 96mm
Dimensions cut-out: 75mm x 50mm
Hole distance: 83mm x 70mm
Thread: M10x1.5
Extras / Features: Flange with threads! No holes!

For / Fits:
Tial T4 Singlescroll turbine housings
AGP Turbo T4 Singlescroll turbine hosings
Precision Turbo T4 Singlescroll turbine hosings
Turbocharger T4X / GT4X
Garrett T4 , T04
Garrett GT40 , GT42 , GT45 , GT47
Garrett GT4082
Garrett GT4088
Garrett GT4708, GT4780
Garrett GT4718, GT4788
Garrett GT40R, GT4088R
Garrett GT40/42R, GT4042R , GT4094R
Garrett GT45R, GT4508R
Garrett GT47R, GT4780R , GT4708R
Garrett GT47R, GT4788R , GT4718R

If you are unsure whether this flange fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
