BOOST products Quick Click Female Fitting -04 AN to -04 AN Male - matte silver

BOOST products Quick Click Female Fitting -04 AN to -04 AN Male - matte silver

BOOST Products USA

Part #
GA-QCFD04F-S
UPC #
4250815807974

Black Friday Sale On All November Long! No Code Needed!

Regular price $20.99 USD
Regular price $20.99 USD Sale price $20.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Product Description

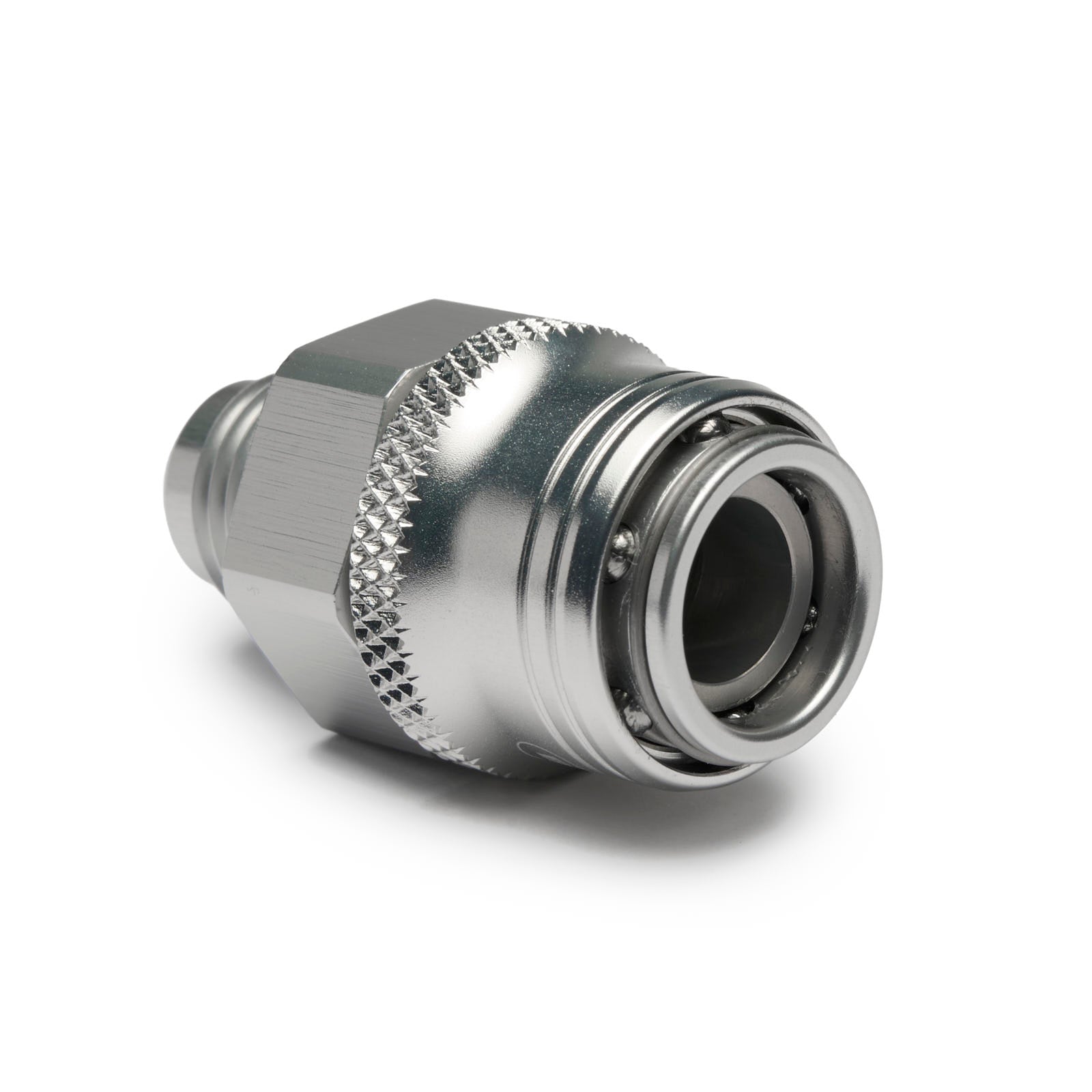

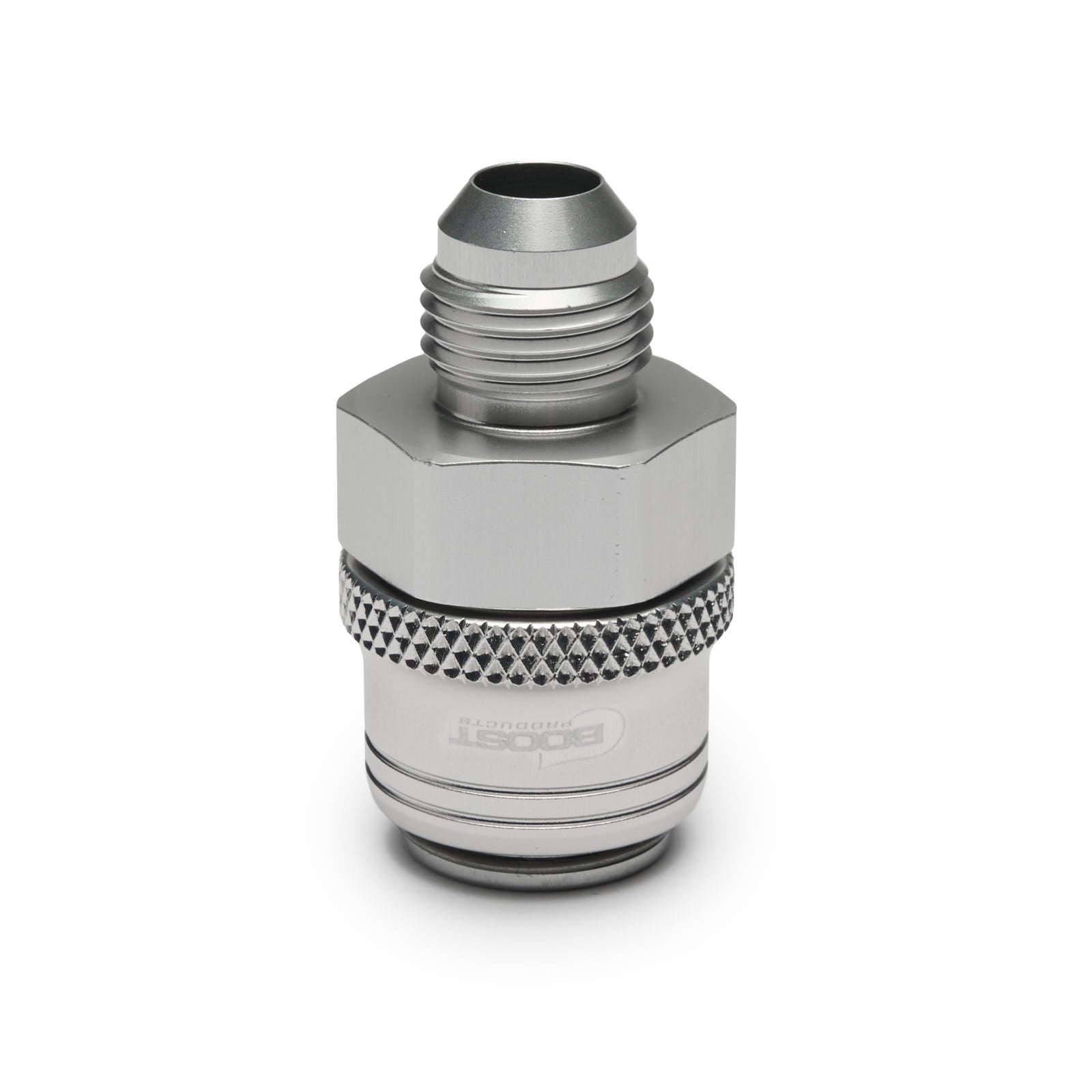

Quick Click Female Fitting -04 AN to -04 AN Male, Matte Silver

Quick Click is the BOOST Products quick disconnect system for AN lines. This fitting is the female part (socket) of the coupling. Connection on the other side: -AN Male. It connects to any Quick Click counterpart of the same dash size in seconds and without tools.

Important: Quick Click fittings are quick release, but not dry break. They do not seal when disconnected, so the fluid in the line will run out.

Specifications

  • Thread: -04 AN (7/16x20) male
  • Quick Click size: -04 AN (7/16x20) female
  • Burst pressure of the Quick Click fitting: 10000psi / 680 bar
  • Tool-free connection and disconnection
  • Suitable for fuel, oil, E85 and methanol
  • Material: aluminum, CNC machined from 6061-T6
  • Temperature range -40 °C (-40 °F) up to 150 °C (302 °F)
  • Color: matte silver

Frequently Asked Questions

Does Quick Click seal when I disconnect it?

No. They are quick release, but not dry break. When you separate the coupling, the fluid in the line runs out. Relieve the system pressure and drain or catch the fluid before you disconnect. If you need a coupling that shuts off on both sides, use the BOOST Products Dry Break Quick Release / Disconnect Adapter.

What do I need for a complete Quick Click connection?

Two halves in the same dash size: one Quick Click male part (pin) and one female part (socket). A -06 AN male will not fit a -10 AN female.

Which fluids can I run through it?

Fuel, E85, methanol, oil and coolant. The anodized aluminum body resists common automotive fluids.
