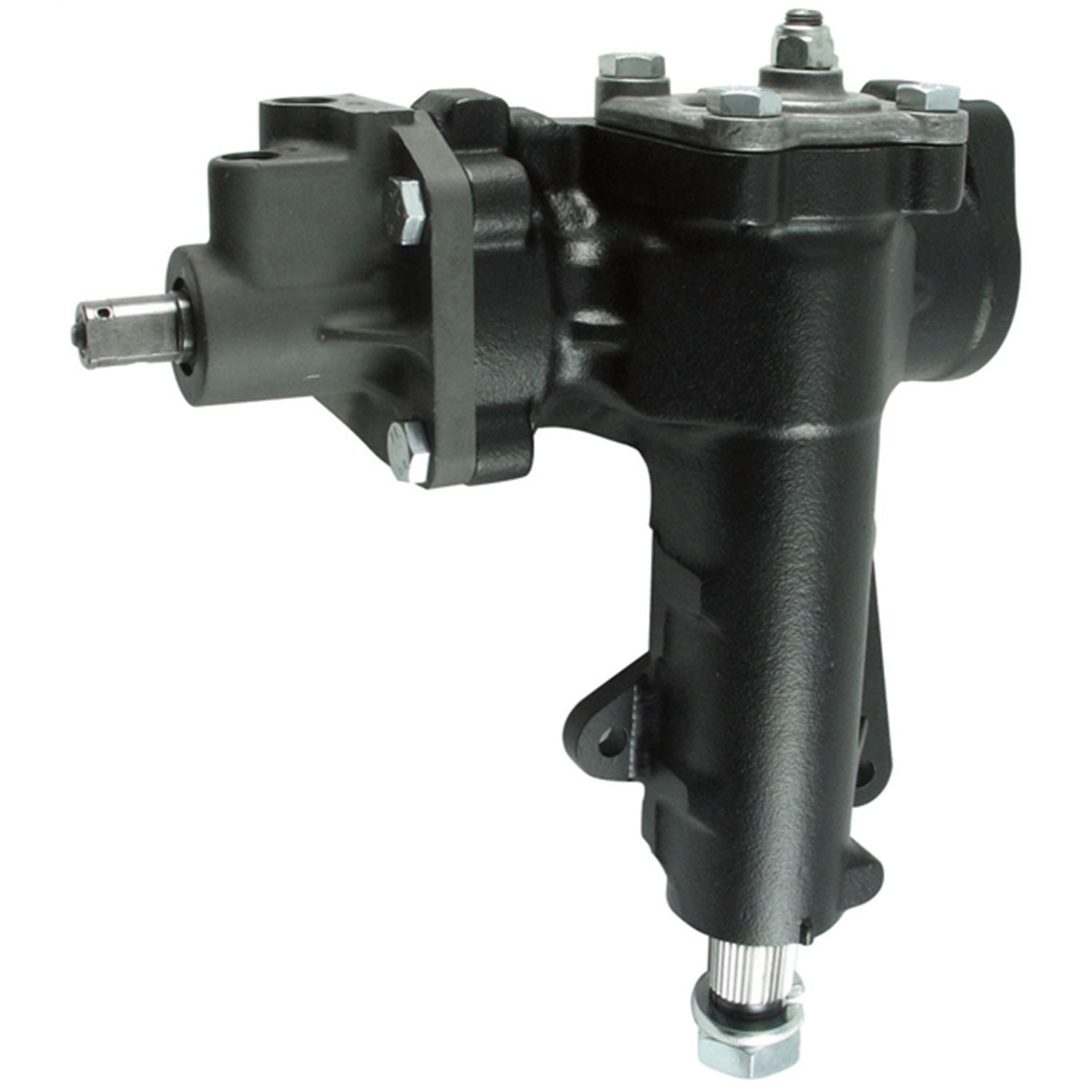

Borgeson - Power Steering Box - P/N: 800108 - Power steering conversion box for 1963-1982 Chevy Corvettes. Remanufactured Delphi 600 series power steering box with a 18MM Double-D input shaft and a 12.7:1 ratio.

Borgeson offers an integral power steering conversion for your 1963-1982 Classic Corvette. The Borgeson conversion box is a remanufactured GM Delphi 600 integral power steering gearbox. The Delphi 600 represents the latest generation of integral power steering gearbox technology with true modern power steering feel, feedback and a sporty 12.7:1 ratio. Borgeson has remanufactured this box to bolt directly to the factory mounting location and to fit the stock pitman arm. A new rag joint will be required for connection to the stock column. The factory column will need to be collapsed or shortened 1-2" for clearance of conversion box. Also a drag link adapter will be required for cars with factory style power steering. Box includes adapter to use either flare or O-ring hoses. Eliminate your leaky control valve and feel the road with a new integral power steering conversion from Borgeson.

• True modern power steering feel and feedback, quick steering ratio with fewer turns lock-to-lock. Based on a true OEM Delphi 600 series steering gear. Made in the USA.

Attributes:

• GTIN: 00843975015842
• Brand Name: Borgeson
• Color: Black
• Finish: Painted Black
• Housing Material: Cast Iron
• Inlet Port Diameter: 18
• Input Shaft Diameter: 18
• Outlet Port Diameter: 16
• Output Shaft Diameter: 1.125
• Output Shaft Spline Quantity: 32
• Splined Input Shaft: No
• Total Turns Lock To Lock: 3

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 14 x 6 inches
• Weight: 27.9 lb
