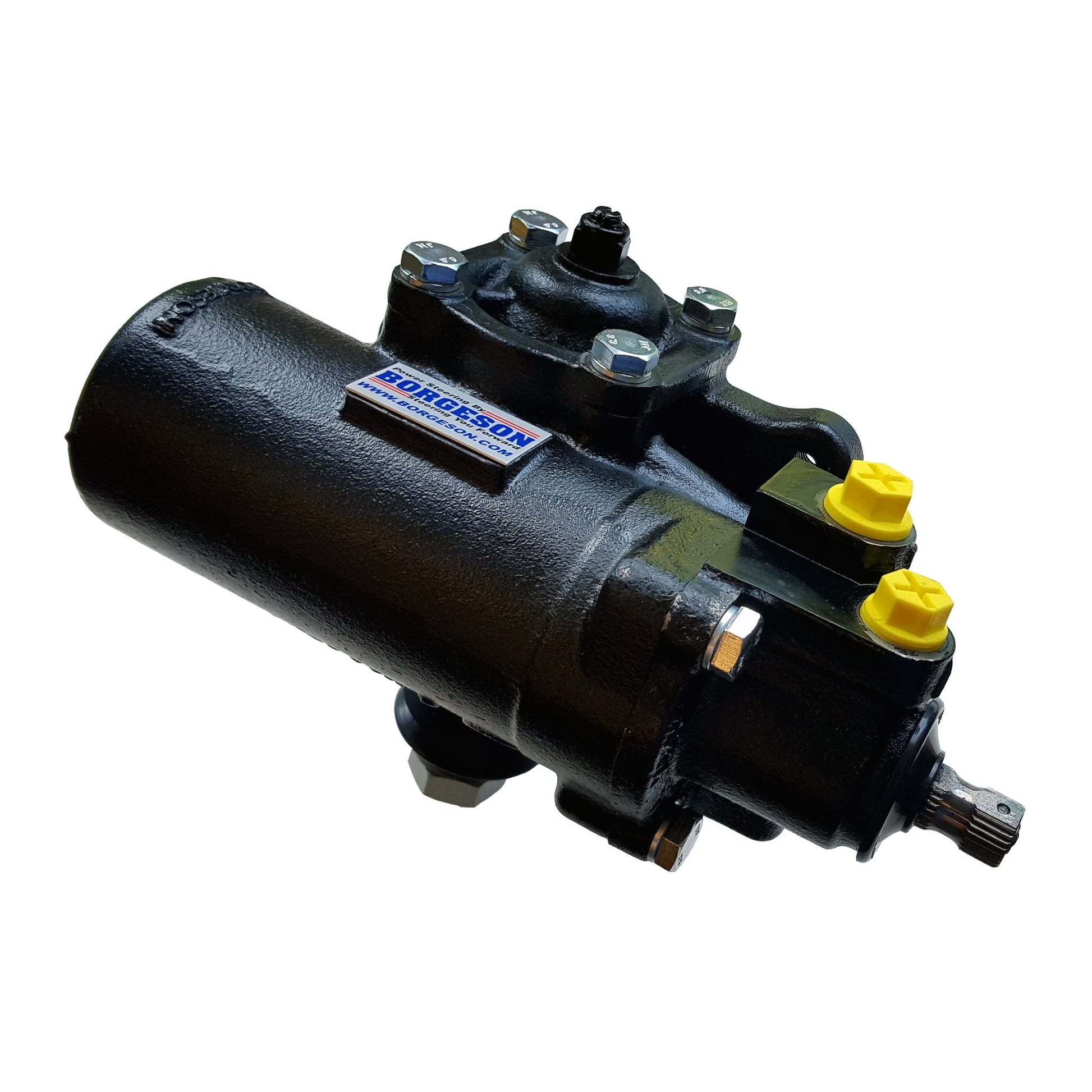

Borgeson - Power Steering Box - P/N: 800132 - Borgeson Street and Performance Quick Ratio GM Power Steering Box. 12.7:1 Ratio.

Borgeson Street & Performance Quick Ratio Chevy C10 Power Steering Box. Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800 series in 68-86 Chevy C10 trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Trucks switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections. This new Borgeson steering box uses a ¾”-30 spline input shaft and all pre-1977 trucks will require a new rag joint connector #990012.

• True modern power steering feel and feedback, quick steering ratio with fewer turns lock-to-lock. All new components, not remanufactured. Assembled and tested in the USA.

Attributes:

• GTIN: 00843975017693
• Brand Name: Borgeson
• Color: Black
• Finish: Painted Black
• Housing Material: Cast Iron
• Inlet Port Diameter: 18
• Input Shaft Diameter: .75
• Input Shaft Spline Quantity: 30
• Outlet Port Diameter: 16
• Output Shaft Spline Quantity: 32
• Splined Input Shaft: Yes
• Output Shaft Diameter: 1.25
• Total Turns Lock To Lock: 3

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 14 x 6 inches
• Weight: 29 lb
