Camburg Axle Housing CAM-020059

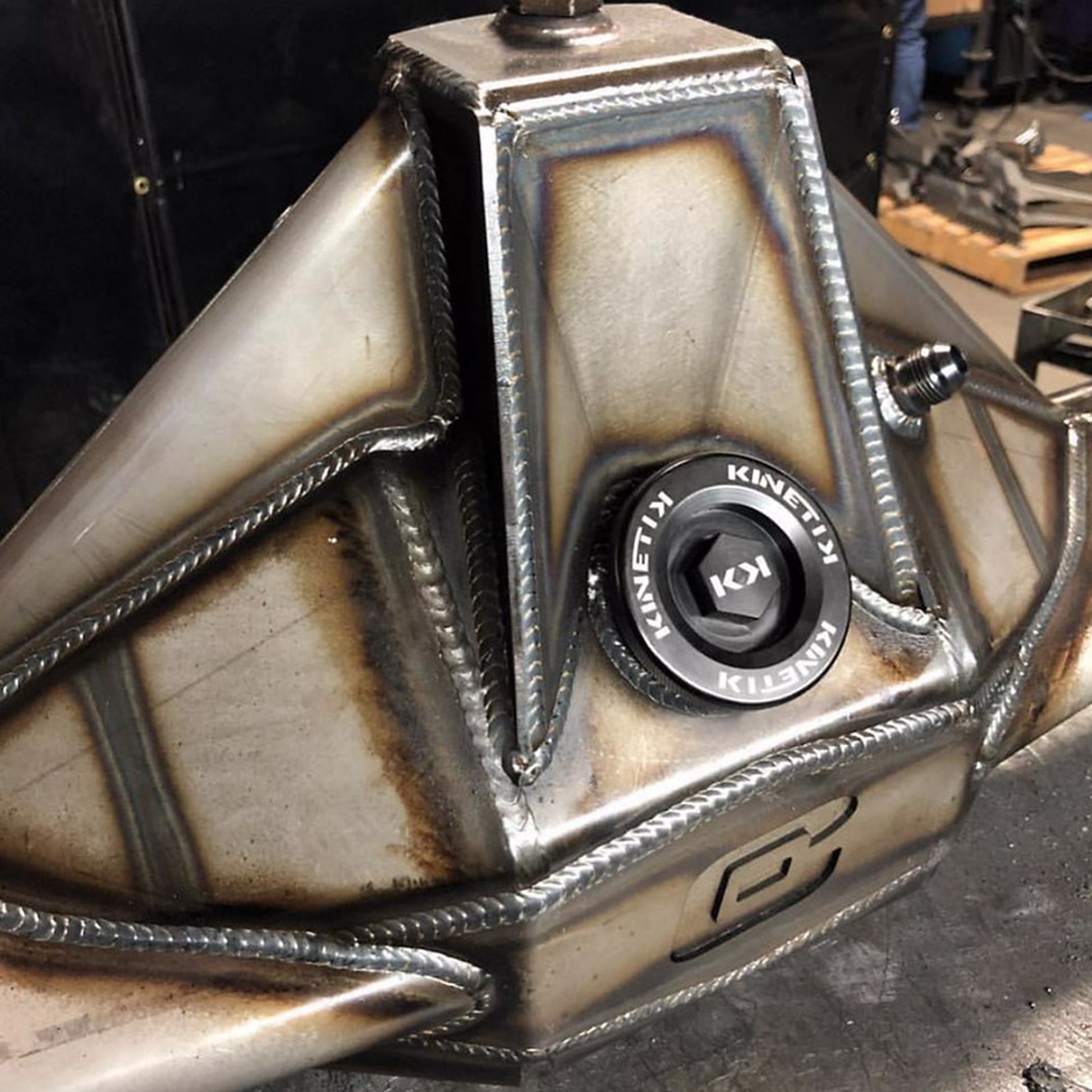

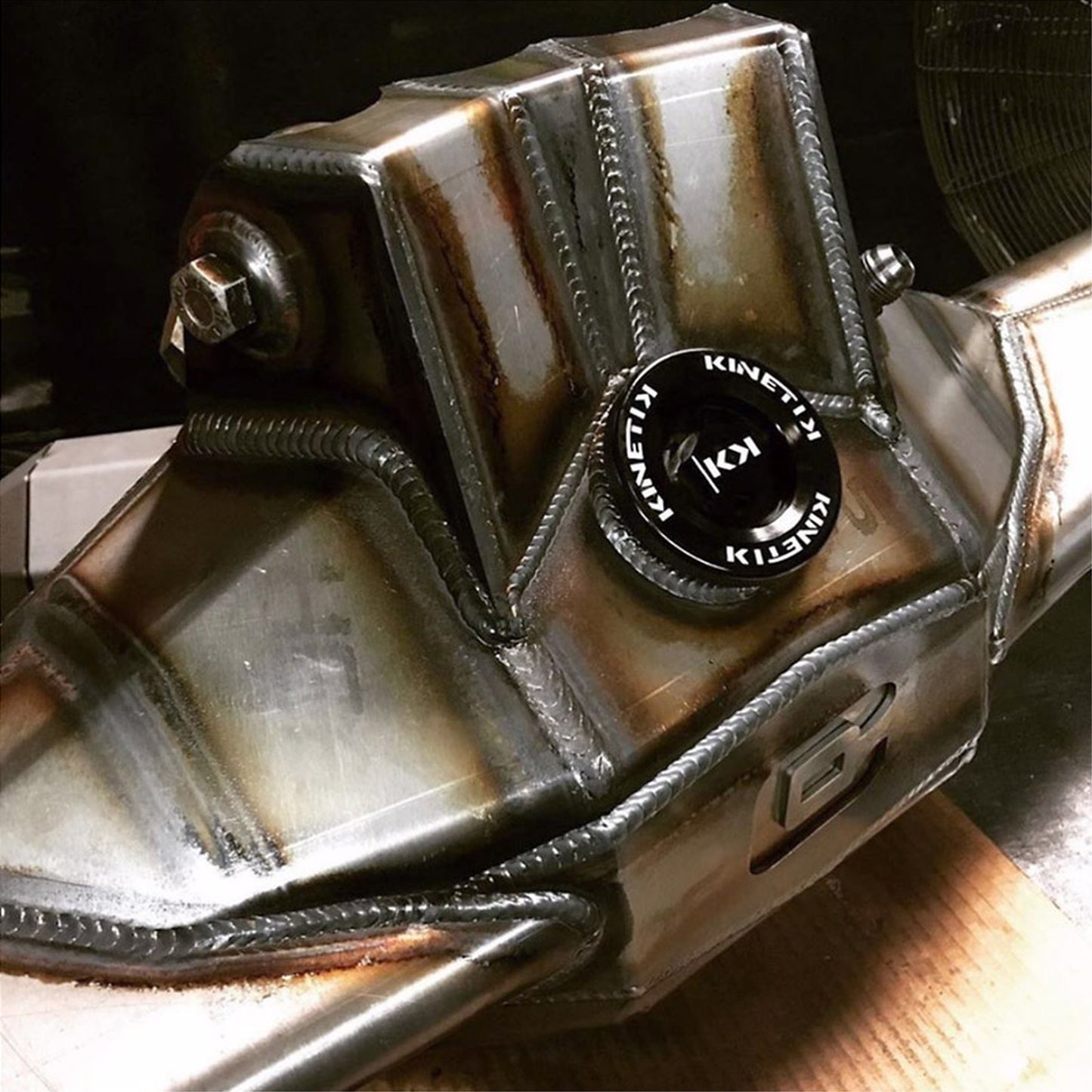

The Camburg 4.00 housing is a high-quality and meticulously designed axle housing for serious racers. It allows for the use of Ford 9" or 10" 3rd members and larger TT axles and floater hubs. The housing is built with attention to detail, starting with a 3/8" thick faceplate that is MIG welded to 3/16" sections with internal gussets for added strength. The faceplate is machined for a precision flat sealing surface and the holes for the ARP 3rd member studs are machined and tapped to ensure proper fitment. The housing is constructed using 4.00" OD x .250w 4130 US chromoly tubing, which offers exceptional strength and compatibility with various full float hub combinations. All welding is done in specific fixtures to minimize distortion and ensure straightness. Optional upper 3 and 4 link mounts are available, designed to distribute loads for optimum strength. The axle tubes can be heat-treated for increased strength and surface hardness. The housing is custom-built to your specifications with many options available. It is recommended for heavier weight vehicles, serious pre-runners, and race trucks running 35-40" tires with higher horsepower engines. The housing features MIG welded construction, CNC machined seal surface faceplate, internally gusseted center section, ARP studs and hardware, rear radiused truss, lower bash plate, large filler with KINETIK aluminum O-ring cap, -10 AN male vent fitting, and 3/4" NPT drain plug. The 4-link setup uses 5/8" bolts at the upper mounts and 3/4" bolts at the lower mounts, while the 3-link setup uses 3/4" bolts at both upper and lower mounts. High mis-alignment spacers are available for both setups.
