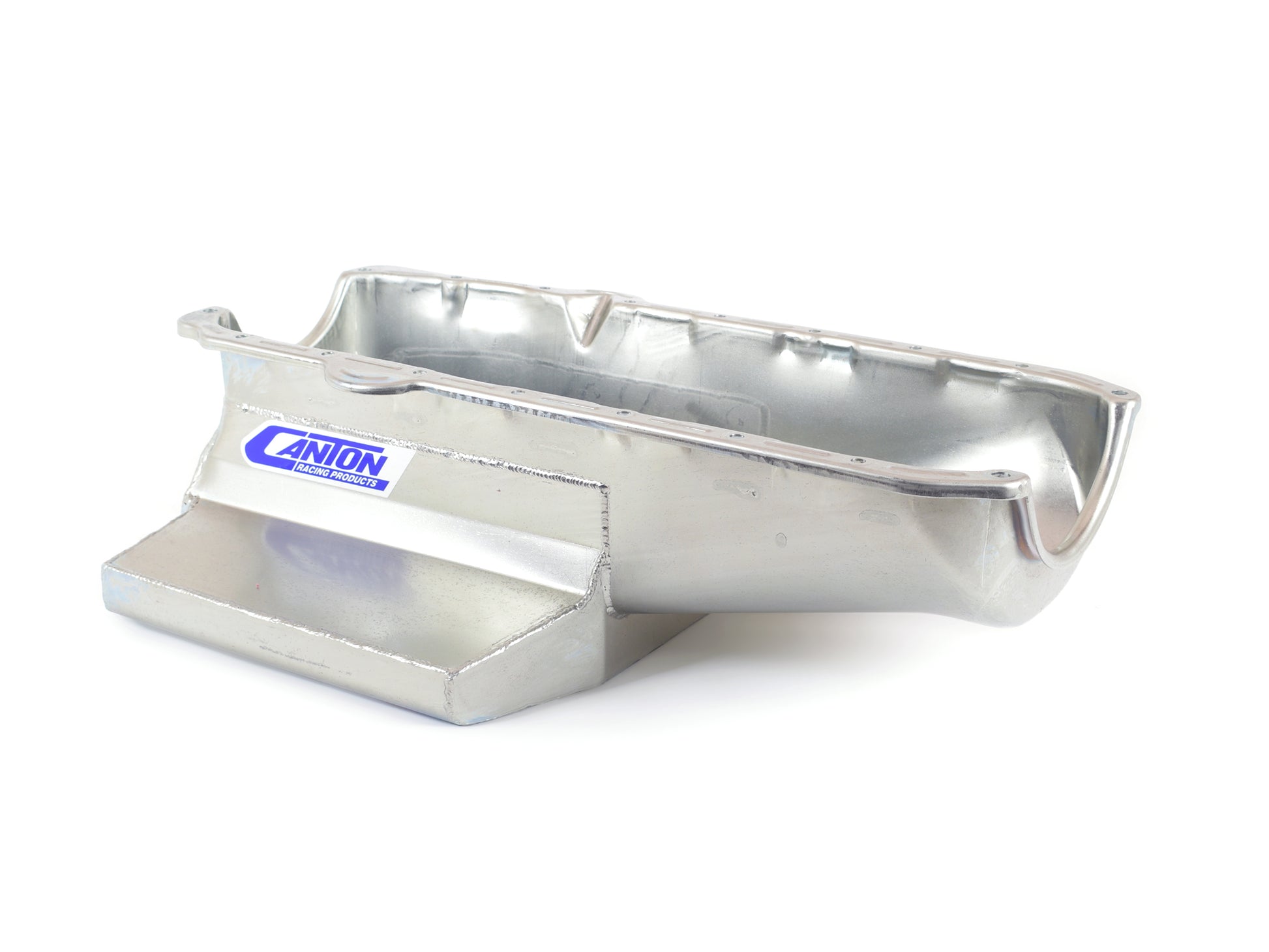

Canton 11-102 Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump

Name: Canton 11-102 Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump
Brand: CANTON
SKU: CANTON-11-102
Price: 499.00 USD
Availability: InStock

CANTON

Part #
CANTON-11-102
UPC #
00887753711137

$499.00 USD

~~$598.80 USD~~ $499.00 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

This Competition wet sump is for pre-'80 Small Block Chevys with left side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.

7 qt System Capacity
3.75" Stroke Clearance

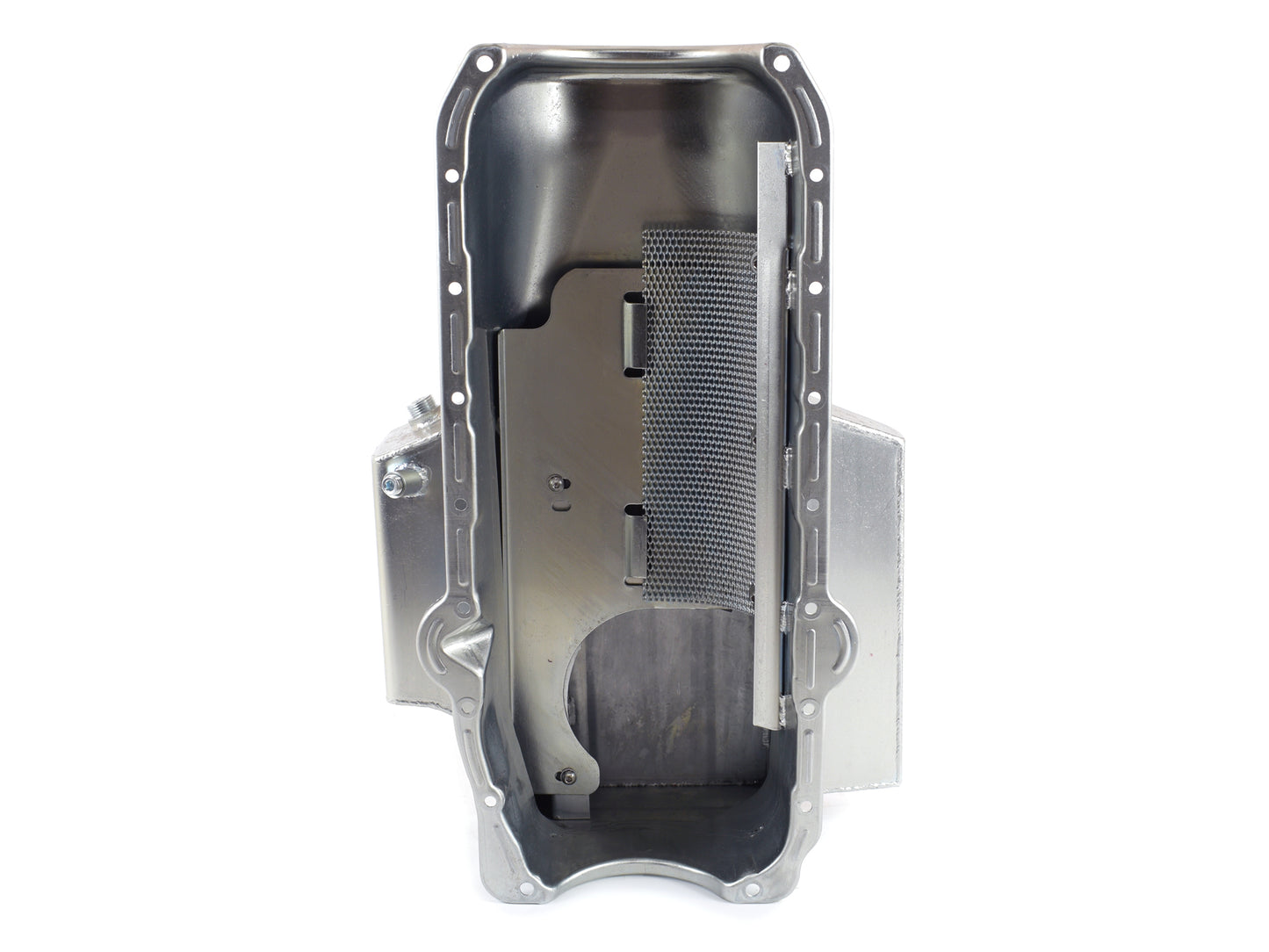

Six Trap Door Baffles & Three Runners
Crank Scraper
Bolt in Slosh Baffle
Built in Windage Tray
1/2" NPT Temperature Bung
Provison for our Pan Mounted Dipstick
Magnetic Drain Plug

Attributes

GTIN: 00887753711137
Brand Name: Canton
Baffled: Yes
Hardware Included: No
Sump Width: 15 inches
Sump Location: Rear Sump
Stoke: 3.75
Recommended Accessory 5: 88-100 - SBC Pre '85 Oil Pan Gasket
Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
Recommended Accessory 2: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
Recommended Accessory 1: 20-031 - Pickup for Small Block High Volume Pumps M55HV
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Gasket or Seal Included: No
Capacity: 7 Quart System Capacity
Finish: Silver Plating
Feature 7: Magnetic Drain Plug
Feature 6: 1/2 NPT Temp Sensor Bung
Feature 5: Provision for Canton Pan Mounted Dipstick
Feature 4: Reduces Crank Windage And Saves Horsepower
Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
Feature 2: Bolt On Slosh Baffle For Oil Control
Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
Engine: For S.B. Chevy Pre-1980 Blocks
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
