Canton 11-102M Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump
Canton 11-102M Oil Pan Small Block Chevy Shallow Circle Track 12" Long Sump
CANTON
Part #
CANTON-11-102M
UPC #
Regular price
$548.00 USD
Regular price
$541.40 USD
Sale price
$548.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Product Description

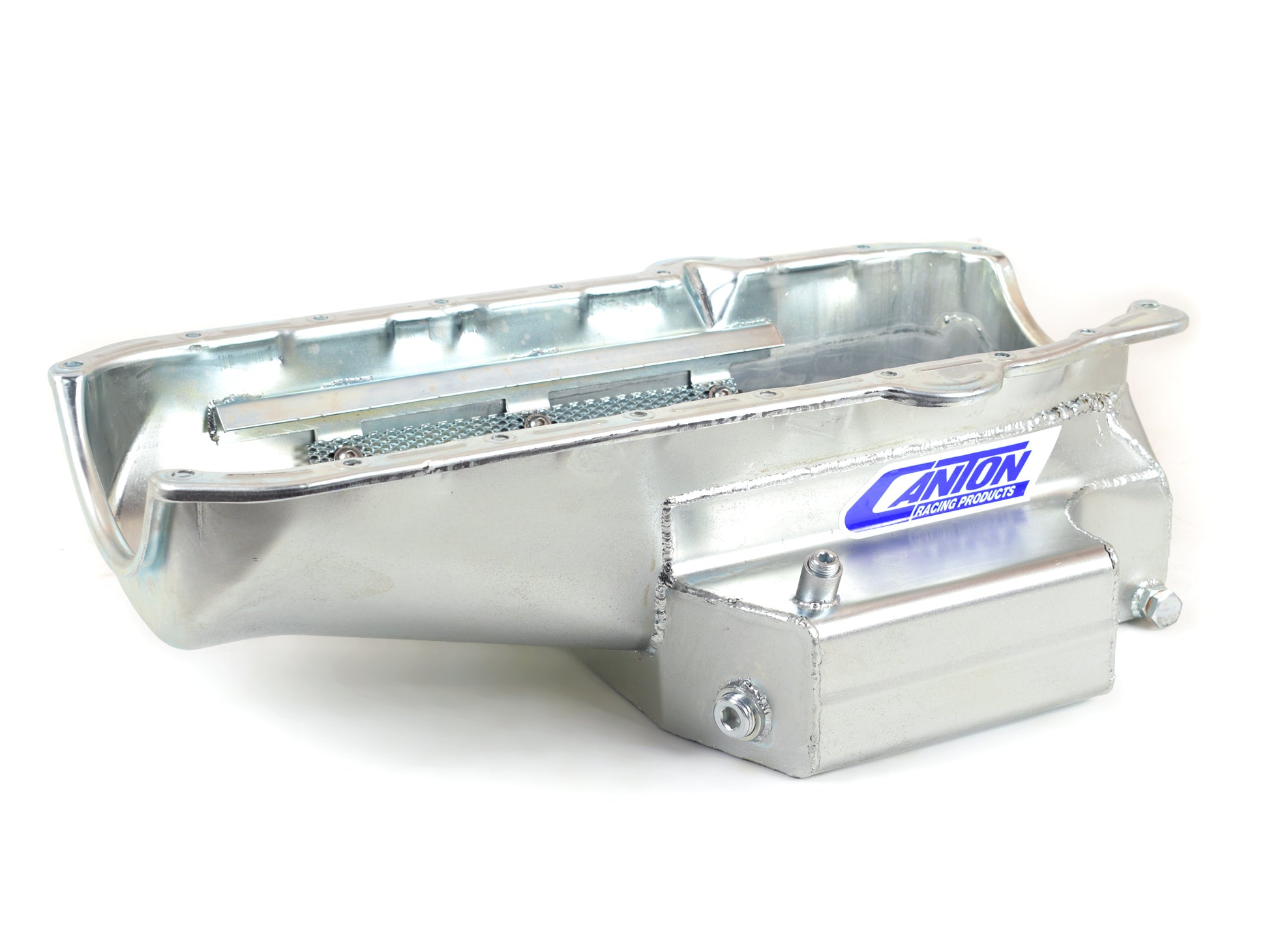

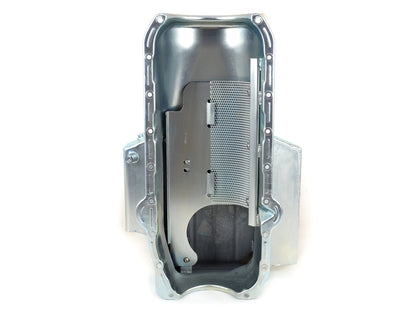

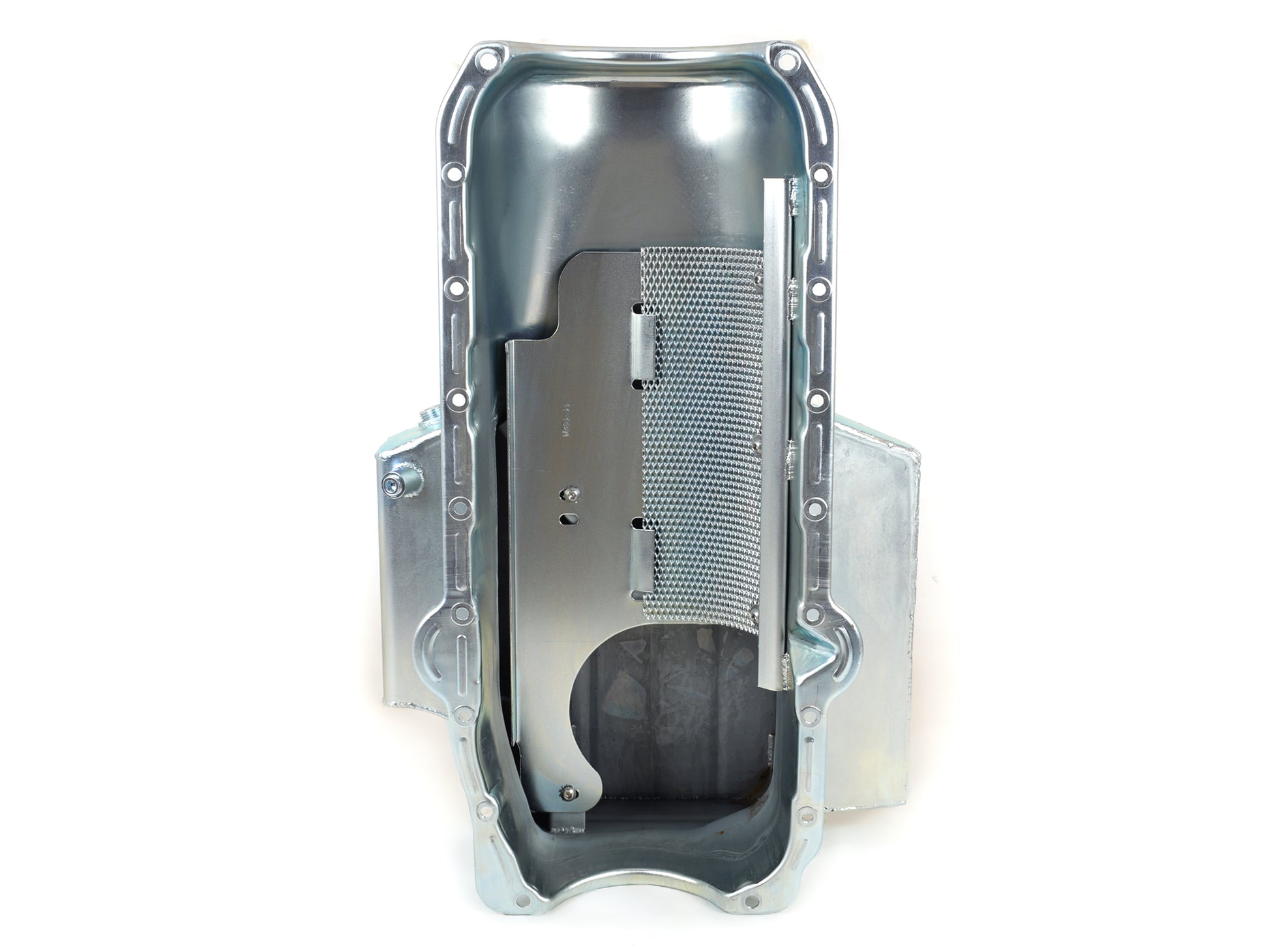

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.
- 7 qt System Capacity
- 3.75" Stroke Clearance
- Six Trap Door Baffles & Three Runners
- Crank Scraper
- Built in Windage Tray
- Bolt in Slosh Baffle
- 1/2" NPT Temperature Bung
- Provison for our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes
Attributes
- GTIN: 00887753711144
- Brand Name: Canton
- Baffled: Yes
- Gasket or Seal Included: No
- Stoke: 3.75 inches
- Recommended Accessory 6: 88-100 - SBC Pre '85 Oil Pan Gasket
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
- Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
- Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pumps M55HV
- Recommended Accessory 1: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Pickup Included: No
- Material: 16 Gauge Steel
- Kicked Out: Yes
- Hardware Included: Yes
- Finish: Silver Plating
- Capacity: 7 Quart System Capacity
- Feature 7: Magnetic Drain Plug
- Feature 6: 1/2 NPT Temp Sensor Bung
- Feature 5: Provision for Canton Pan Mounted Dipstick
- Feature 4: Reduces Crank Windage And Saves Horsepower
- Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
- Feature 2: Bolt On Slosh Baffle For Oil Control
- Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
- Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
- Drain Plug Included: Yes
- Dipstick Port: Yes
- Crank Scraper Included: Yes
- Windage Tray Included: Yes
- Color: Silver
- Drain Thread Size: 1/2-20
- Dipstick Port: Yes
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 16.25 x 9.5 inches
- Weight: 20 lb
